MANAGING THE BATTERY
Battery discharge voltage and status indicator on the dashboard are managed by the Master traction
logic unit.
The indicator can be customised with the following parameters.
Remarks:
The battery indicator must be adjusted according to the characteristics and type of the battery
installed in the truck.
Incorrect indicator setting may lead to the non-reset of the indicator and/or the incorrect
discharge of the battery, causing damage in the long term.
BDI RESET
This parameter determines the minimum recharge the battery has to receive for the partial or total reset
of the indicator.
The standard is 30% of the reset curve
BDI ADJ MIN
This parameter determines the voltage below which the battery indicator signals 0% residual charge.
The standard is - 4.00% = 22.44V
BDI ADJ MAX
This parameter determines the voltage above which the battery indicator signals 100% charge.
The standard is - 3.00% = 24.60V
ADJUSTMENT 3
This parameter determines the reset curve.
The standard is + 3.00% = 0.72V
BDI GEL
This parameter sets the discharge curve for gel batteries:
The standard is OFF
Remarks:
• The indicator resets at 100% if when the truck is switched on the battery voltage exceeds the value set
by BDI ADJ MAX + ADJUSTMENT 3 (the standard is 25.32V)

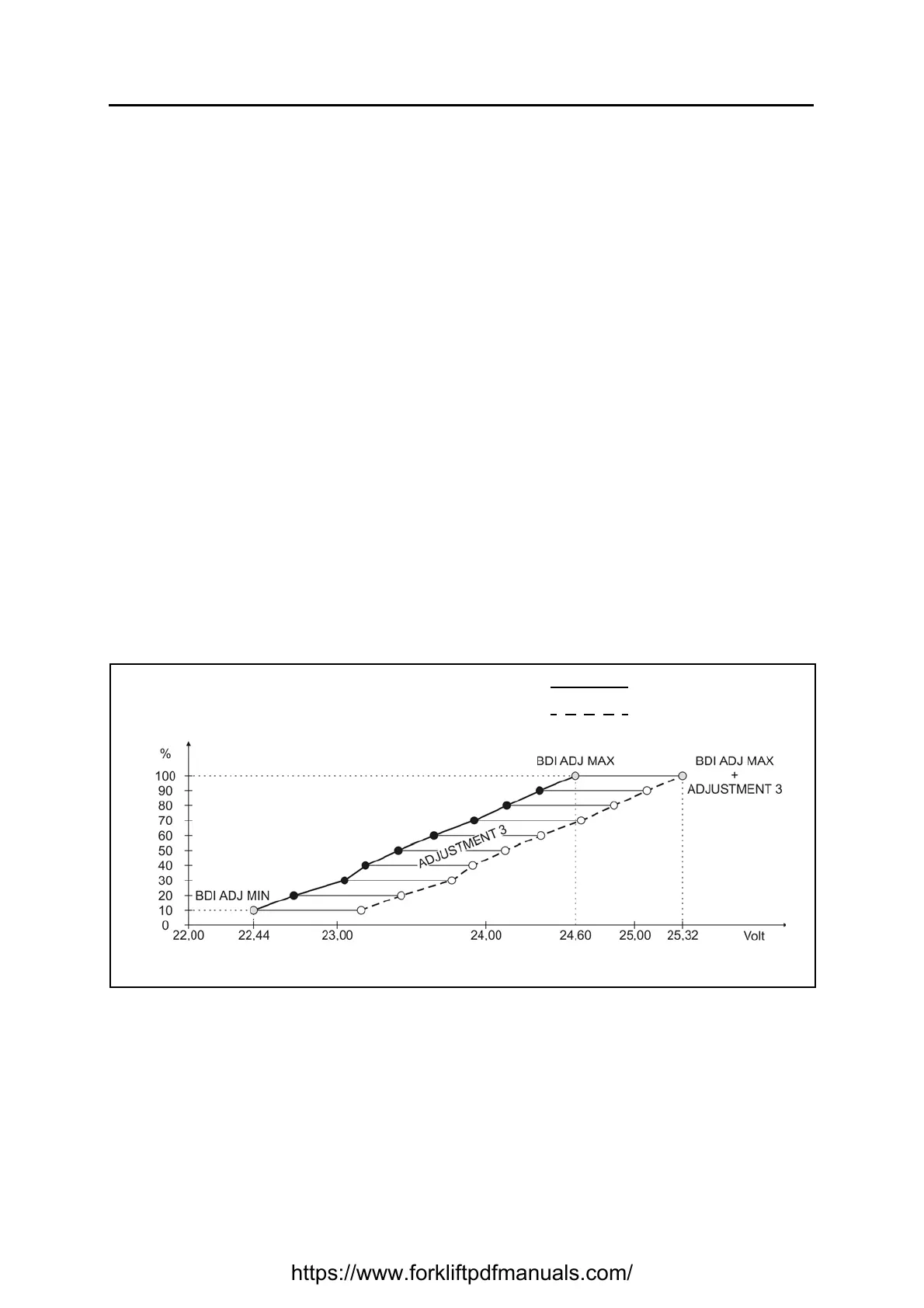

BATTERY INDICATOR
BATTERY VOLTAGE
DISCHARGE CURVE
RESET CURVE
