LIFTING TEMPERATURE SENSOR REPLACING
REMOVAL • INSTALLATION
Removal procedure
1. Execute the removal procedure of the lifting motor encoder from section 1 to section 8
2. Cut the sensor wiring harness where is the fixing point of the same sensor with the stator winding
[Point 1]
3. Insert the new sensor at contact of the stator winding, and fix it using the adhesive silicone paste for
high temperature [Point 2]
Installation procedure
Execute the installation procedure of the lifting motor encoder from section 2 to section 8.

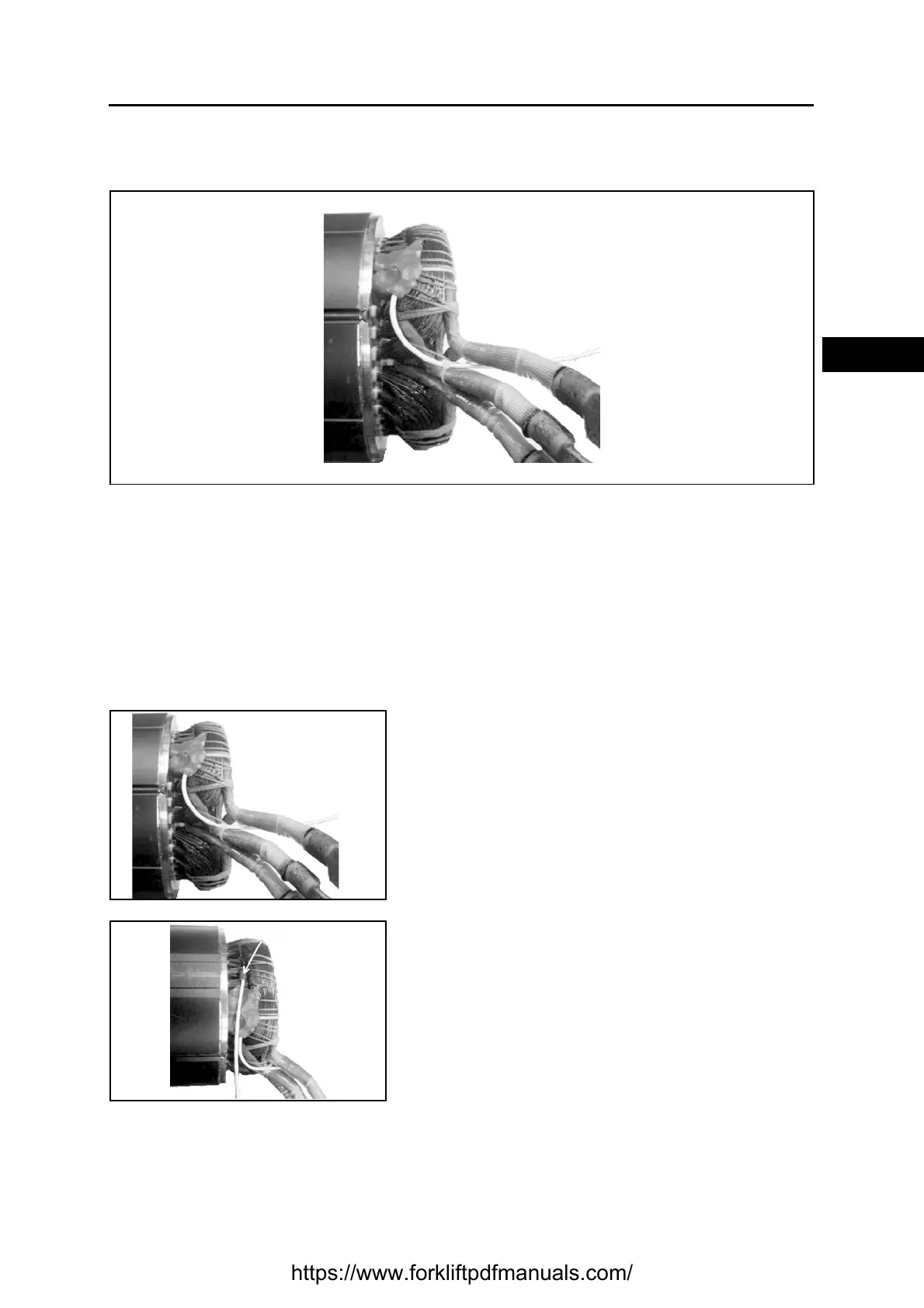

Point Operation
[Point 1]
Disassembly:
Cut the sensor wiring harness where is the fixing point
of the same sensor with the stator winding
[Point 2]
Disassembly:
Insert the new sensor at contact of the stator winding
and fix it using the adhesive silicone paste for high
temperature
The drying time is ~ 2 hours
