MHYRIO

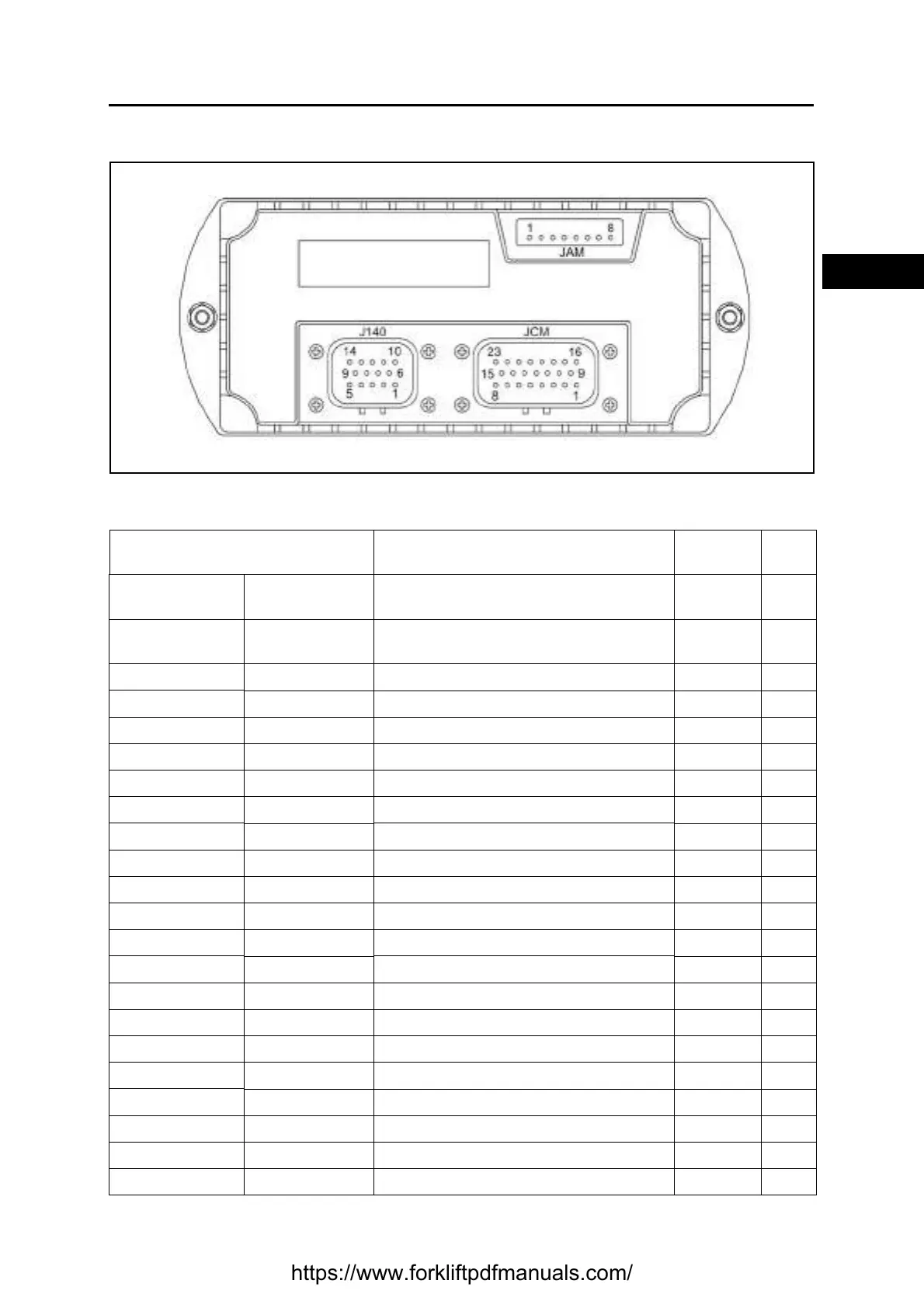

Basic conditions (battery plug connected, key switch ON) [Mini-lever specification vehicle].
See the reference names of the connectors in the electrical diagram.
CN (pin-colour) ⇔ CN (pin-colour)
From ⇔ To
Description Standard Notes
J140 (1-R07)
J50 (6-R07)
J50 (5-R07)
Output + V Board power +Vb
J140 (2-R07)
J50 (6-R07)
J50 (5-R07)
Output + V Board power +Vb
J140 (3-N) J1 (-) Negative input GND
J140 (4-HG) --- CAN-BUS LOW
J140 (5) --- Unused
J140 (6) --- Unused
J140 (7) --- Unused
J140 (8) --- Unused
J140 (9) --- Unused
J140 (10) --- Unused
J140 (11) --- Unused
J140 (12) --- Unused
J140 (13-AN) --- CAN-BUS HIGH
J140 (14) --- Unused
JAM (1) --- Console input
JAM (2) --- Console input
JAM (3) --- Console input
JAM (4) --- Console input
JAM (5) --- Console input
JAM (6) --- Console input
JAM (7) --- Console input
JAM (8) --- Console input
