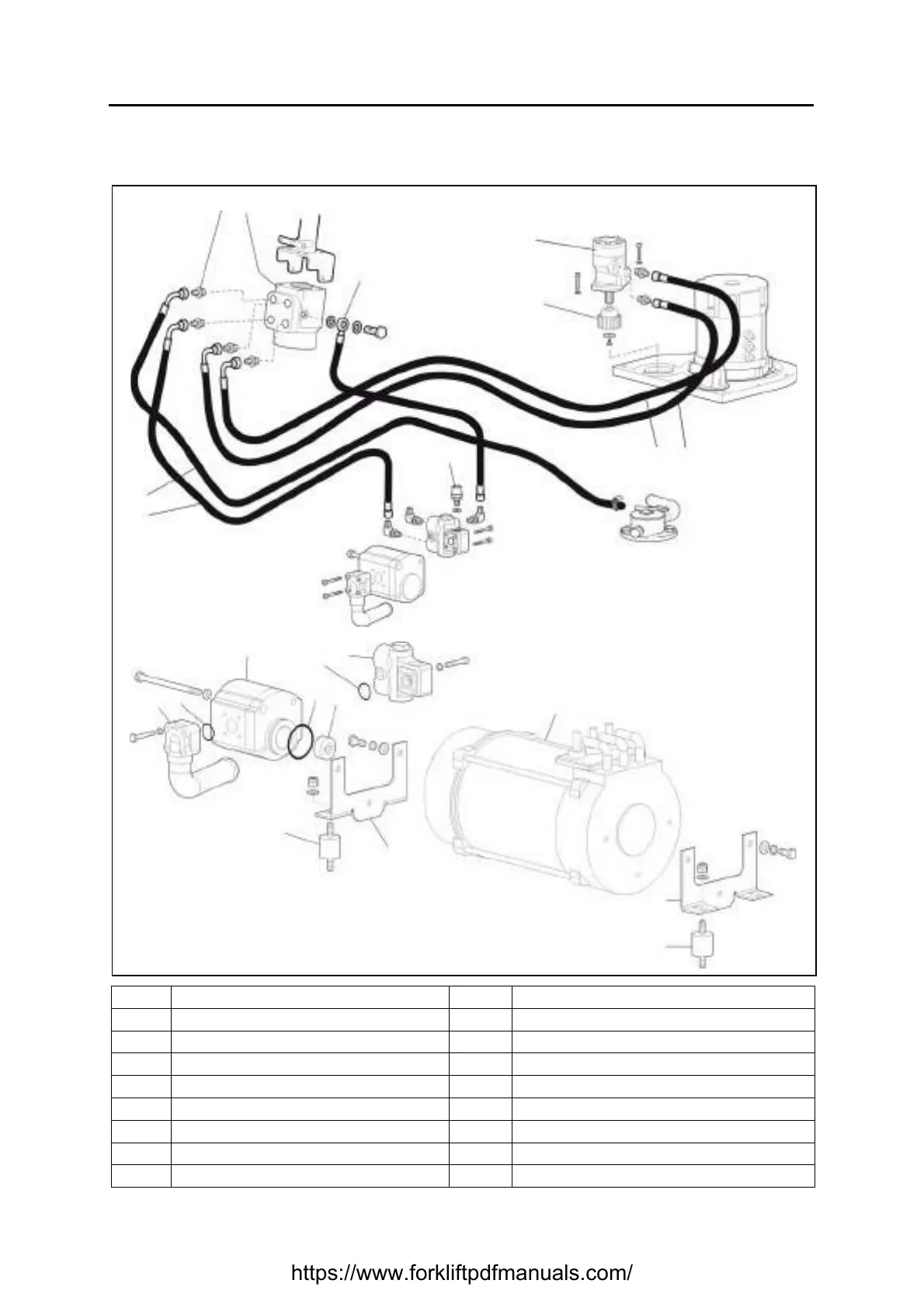

STEERING SYSTEM
COMPONENTS
1 Vibration damping 10 Pressure socket
2 Bracket 11 R channel
3 Motor 12 L channel
4 O-rings 13 Steering motor
5 Joint 14 Pinion
6 Pump 15 LS channel
7 Suction 16 Nipple
8 T channel 17 Orbitrol
9 CF channel 18 Priority valve
1
1
2
3
2
4
4
5
6
7
4
8
9
10
11
12
13
14
15
16
17
18
