PARKING BRAKE
DISASSEMBLY • REASSEMBLY
Disassembly Procedure
1. Disconnect the battery plug
2. Remove the plastic cover
3. Disconnect the cables of the parking brake
4. Remove the 3 fixing screws
5. Remove the lever of the parking brake
Reassembly Procedure
The reassembly procedure is the reverse of the disassembly procedure.
INSPECTION • ADJUSTMENT
Procedure

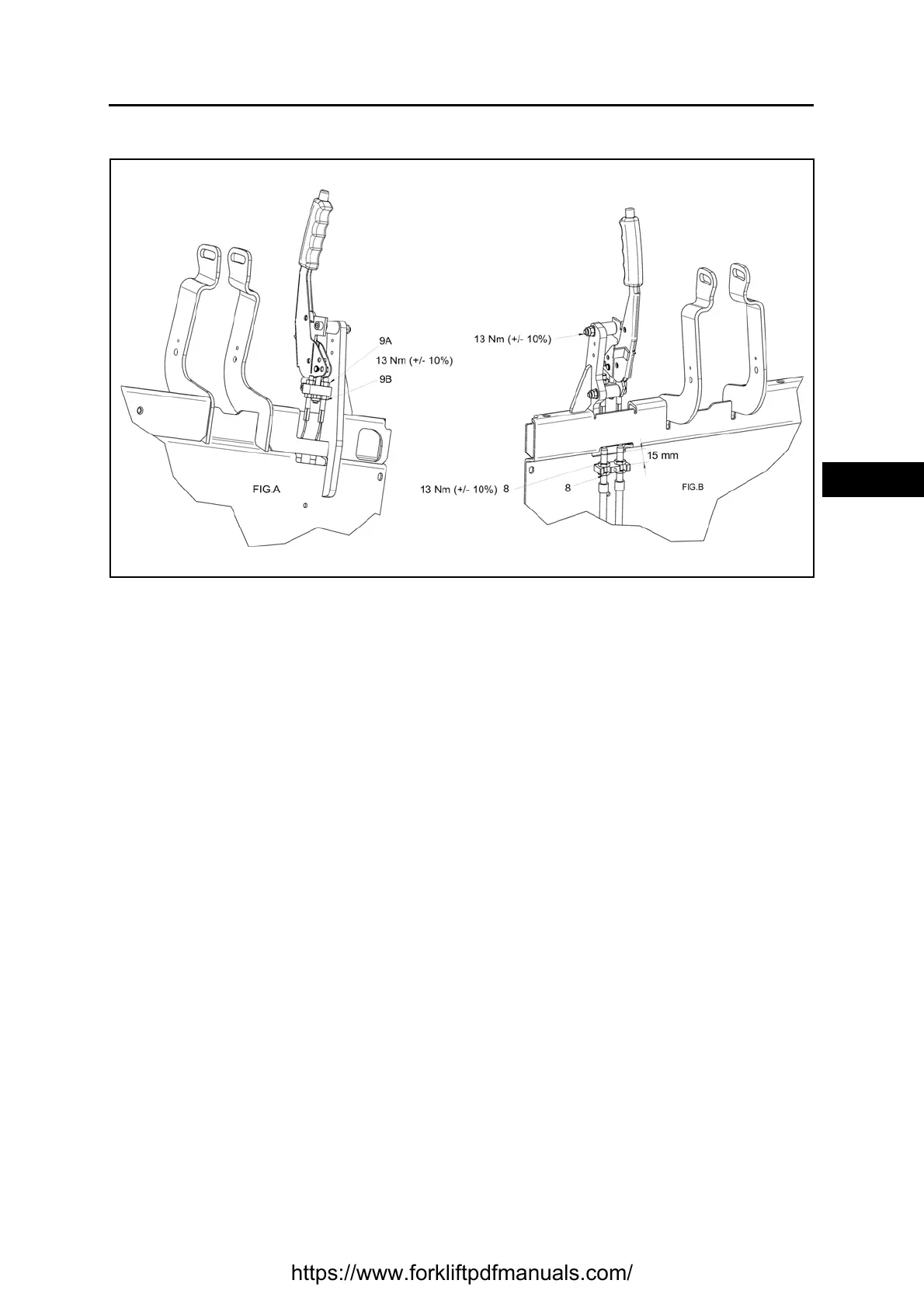

1. Place the bush into the appropriate bearing at suggested measure (fig.b)
2. Tight the nut and the counternut (pos.8)
3. After inserting the cable into the block (fig.a) tighten it by hand to nullify in vain stroke of lever into the
brake
4. Adjusting the nut (pos.9) verify with the hand that the turnings of the wheels are:
(a) Notch 4: possible but hard
(b) Notch 5: completely blocked
Note: Verify the same behavior in both wheels
5. Tight the counternut (pos.9)
6. Pull the lever some times and verify that the conditions of point 4a and 4b are mainteined
