Chapter 2 Introduction to the Cisco SCE8000 Platform
Introduction to SIPs and SPAs
The XFP operating temperature range is 0°C to 70°C.
The SCE8000-SIP
The 1-Port 10GBE SPA Interface Module
The SCE8000-SIP is installed in slot #3 of the Cisco SCE8000 chassis. It hosts up to four single-width,
single-height 1-Port 10GBE SPA interface modules, but in the Cisco SCE8000, it must be configured
with either two 1-Port 10GBE SPAs (in the top two subslots) or four 1-Port 10GBE SPAs, to provide
interfaces for either one or two complete traffic links.

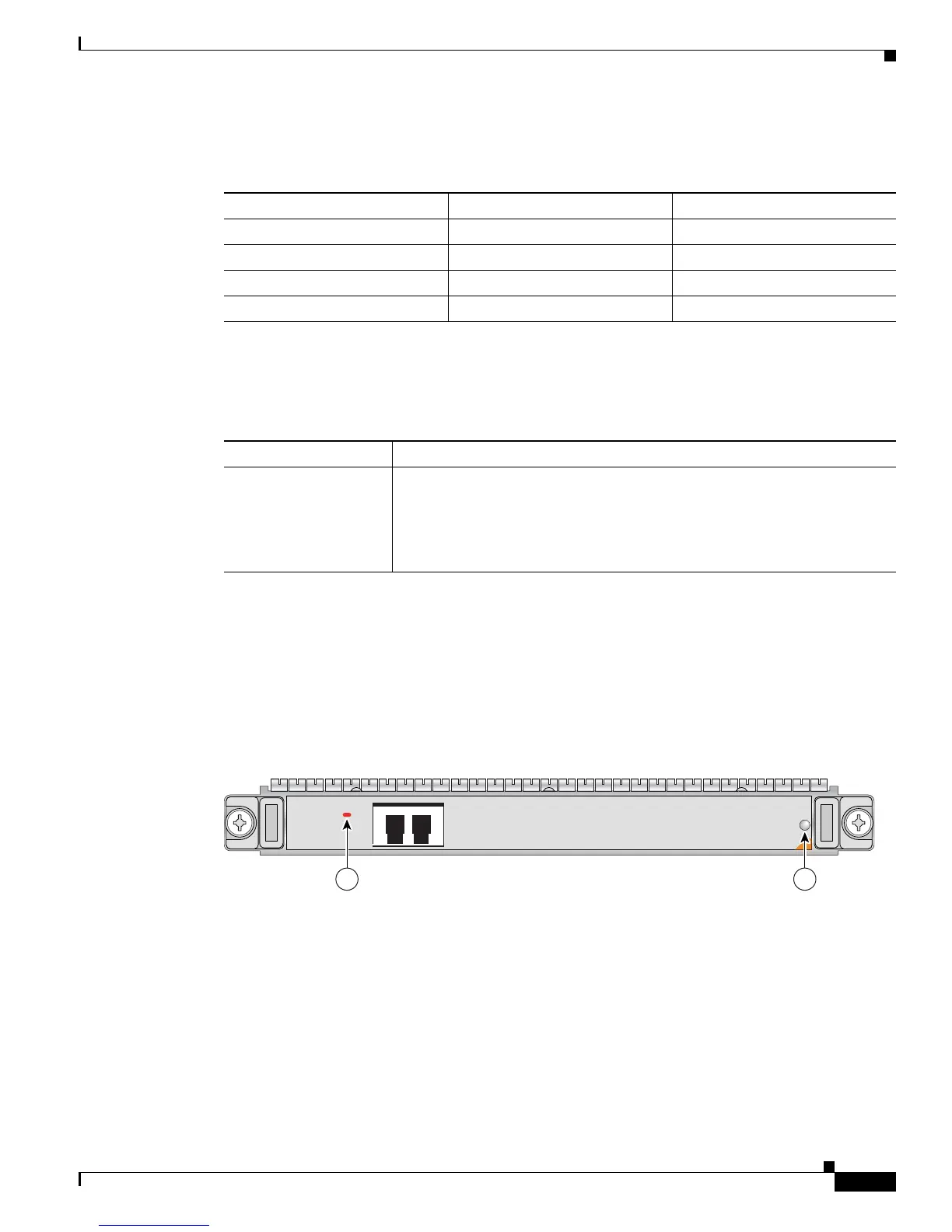

Figure 2-6 1-Port 10GBE SPA Interface Module
Table 2-4 XFP Port Cabling Specifications
XFP Wavelength Fiber Type
XFP-10GLR-OC192SR 1310 nm SMF
XFP-10GER-OC192IR 1550 nm SMF
XFP-10GZR-OC192LR 1550 nm SMF
XFP-10G-MM-SR 850 nm MMF
Table 2-5 SCE8000-SIP LED
LEDs Description
Status
• Green —Operational
• Flashing Amber - Electrical bypass in operation
• Red - Not initialized or failed
• Unlit —No power
STATUS
122151
ACTIVE/LINK
SPA-1X10GE-L-V2
1 2
