Configuration | System | Management Protocols | TFTP
9-5
VPN 3000 Concentrator Series User Guide

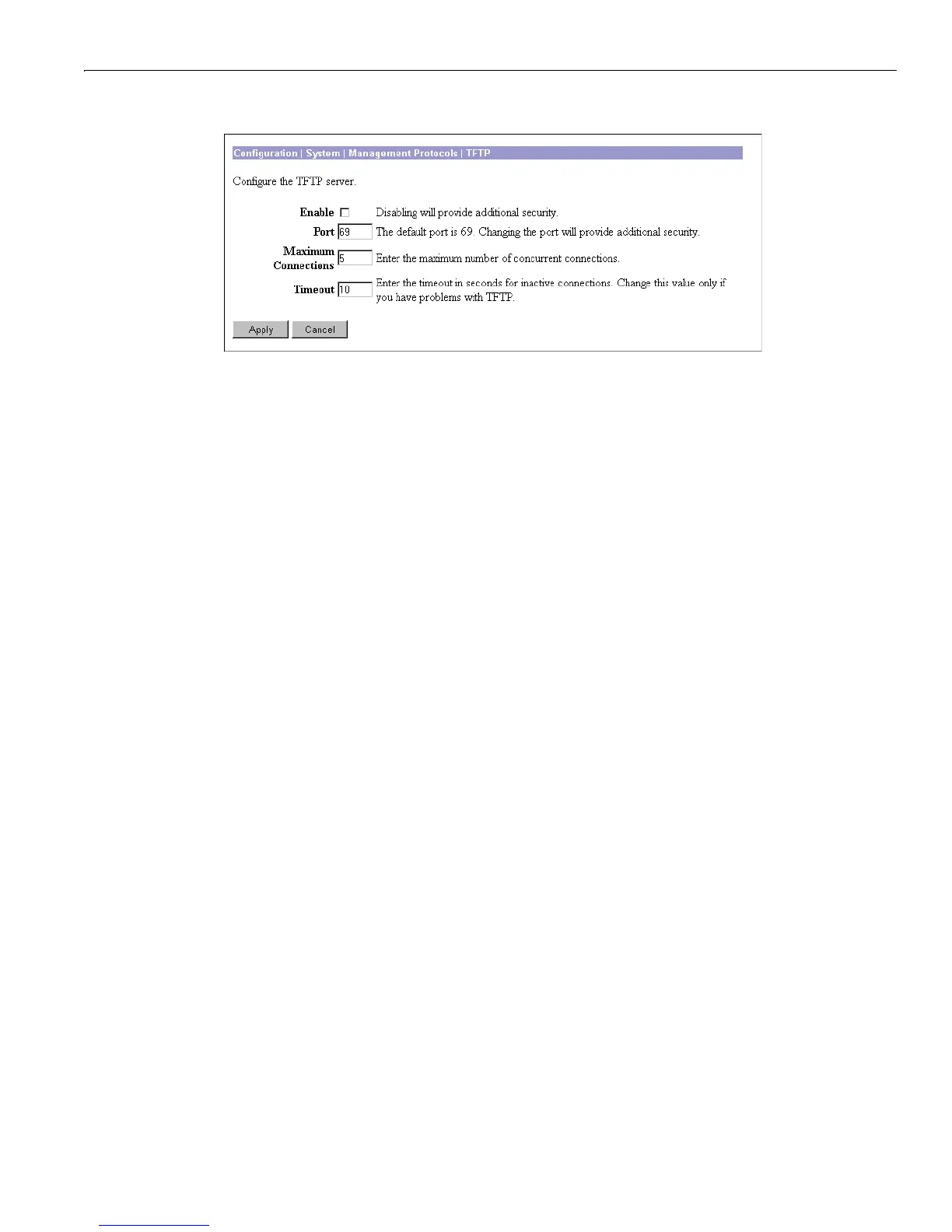

Figure 9-4: Configuration | System | Management Protocols | TFTP screen
Enable
Check the box to enable the TFTP server. The box is not checked by default. Disabling the TFTP server
provides additional security.
Port
Enter the port number that the TFTP server uses. The default is 69, which is the well-known port.
Changing the port number provides additional security.
Maximum Connections
Enter the maximum number of simultaneous connections that the TFTP server allows. Minimum is 1,
default is
5, maximum is 20.
Timeout
Enter the timeout in seconds for inactive TFTP connections. Minimum is 1, default is 10, maximum is
30 seconds. Change the default value only if you have problems with TFTP transfers.
Apply / Cancel
To apply your TFTP settings, and to include your settings in the active configuration, click Apply. The
Manager returns to the
Configuration | System | Management Protocols screen.
Reminder: To save the active configuration and make it the boot configuration, click the
Save Needed icon at the
top of the Manager window.
To discard your settings, click
Cancel. The Manager returns to the Configuration | System | Management
Protocols
screen.
