1 Using the VPN 3000 Concentrator Series Manager
1-18
VPN 3000 Concentrator Series User Guide
Logging in the VPN Concentrator Manager
Logging in the VPN Concentrator Manager is the same for both types of connections: cleartext HTTP
or secure HTTPS.
Entries are case-sensitive, so type them carefully. With Microsoft Internet Explorer, you can press the
Tab key to move from field to field; other browsers may work differently. If you make a mistake, click
the
Clear button and start over.
The entries that follow are the factory-supplied default entries. If you have changed them, use your
entries.
1 Click in the
Login field and type admin. (Do not press Enter.)
2 Click in the
Password field and type admin. (The field shows *****.)
3 Click the
Login button.
The Manager displays the main welcome screen.

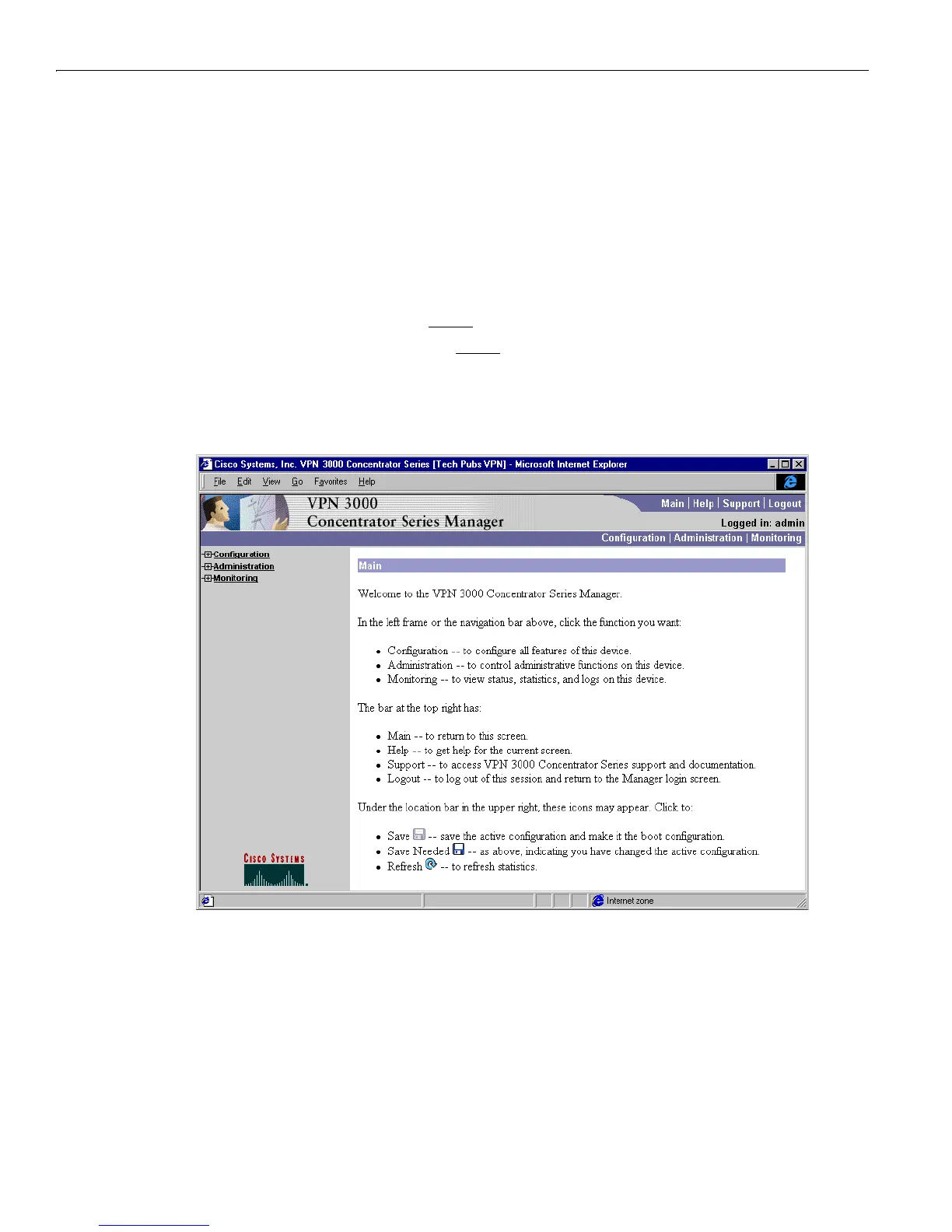

Figure 1-27: Manager Main Welcome screen
From here you can navigate the Manager using either the table of contents in the left frame, or the
Manager toolbar in the top frame.
