Monitor | Statistics | MIB-II | RIP
15-85
VPN 3000 Concentrator Series User Guide
Monitor | Statistics | MIB-II | RIP
This screen shows statistics in MIB-II objects for RIP version 2 traffic on the VPN Concentrator since
it was last booted or reset. RFC 1724 defines RIP version 2 MIB objects.
To configure RIP on interfaces, see
Configuration | Interfaces.

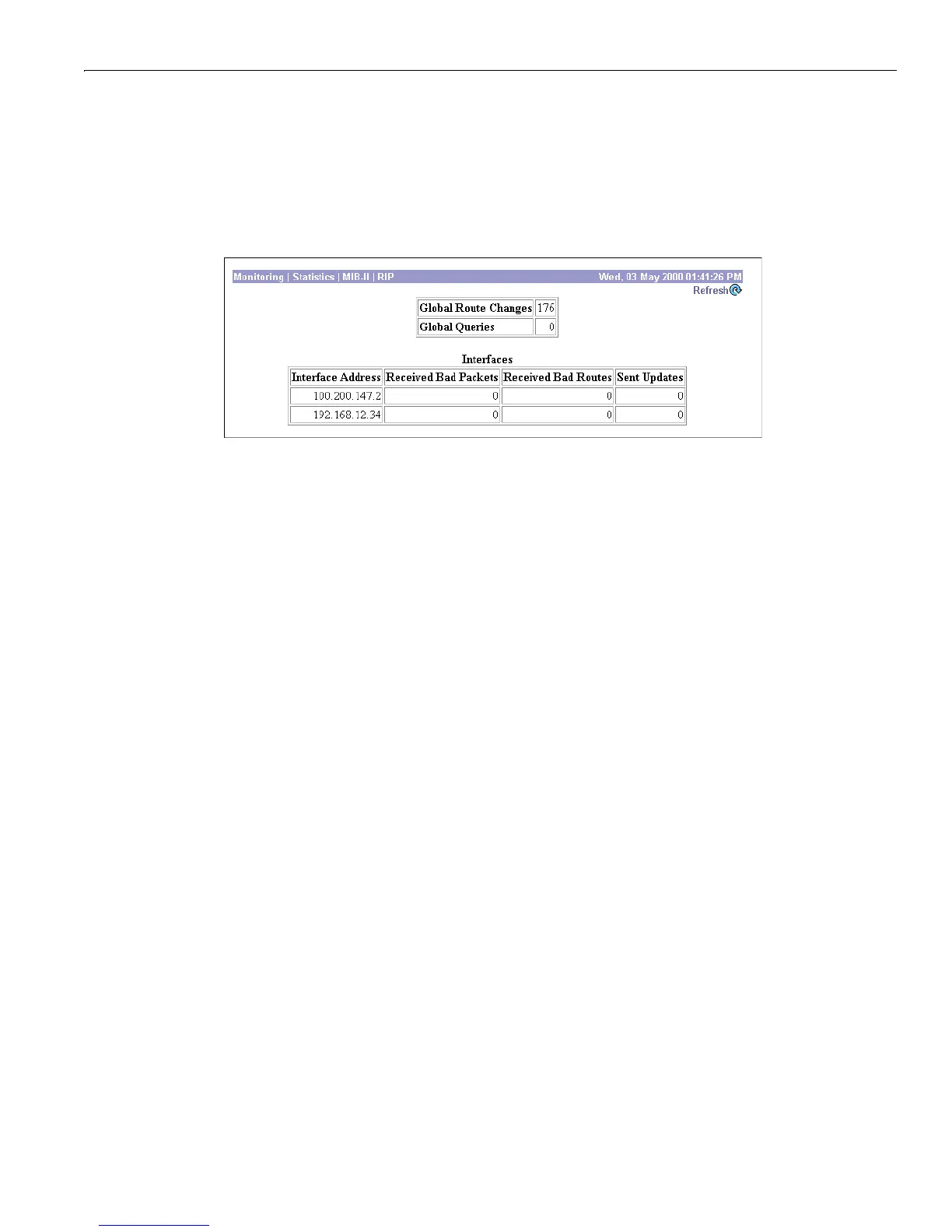

Figure 15-43: Monitor | Statistics | MIB-II | RIP screen
Refresh
To update the screen and its data, click Refresh. The date and time indicate when the screen was last
updated.
Global Route Changes
The total number of route changes made to the IP route database by RIP. This number does not include
changes that only refresh a route’s age.
Global Queries
The total number of responses sent to RIP queries from other systems.
Interfaces
This table shows a row of statistics for each configured interface.
Interface Address
The IP address configured on the interface.
Received Bad Packets
The number of RIP response packets received by this interface that were subsequently discarded for any
reason (e.g., wrong version, unknown command type).
