CAUTION
Apply the locking agent on the
screws of the fan to prevent from
loosening. Otherwise, fan may drop
from the motor.
Evaporator Condenser
Model Propeller fan
Size 440mm 300mm
Model 3-phase squirrel-cage
induction motor
Output (60Hz) 700/90W 670W
(Number of poles) (2P/4P) (4P)
Shielded ball Shielded ball
Bearing bearing with bearing with
rubber seal rubber seal
6203WNC 620400NC-X
4-12

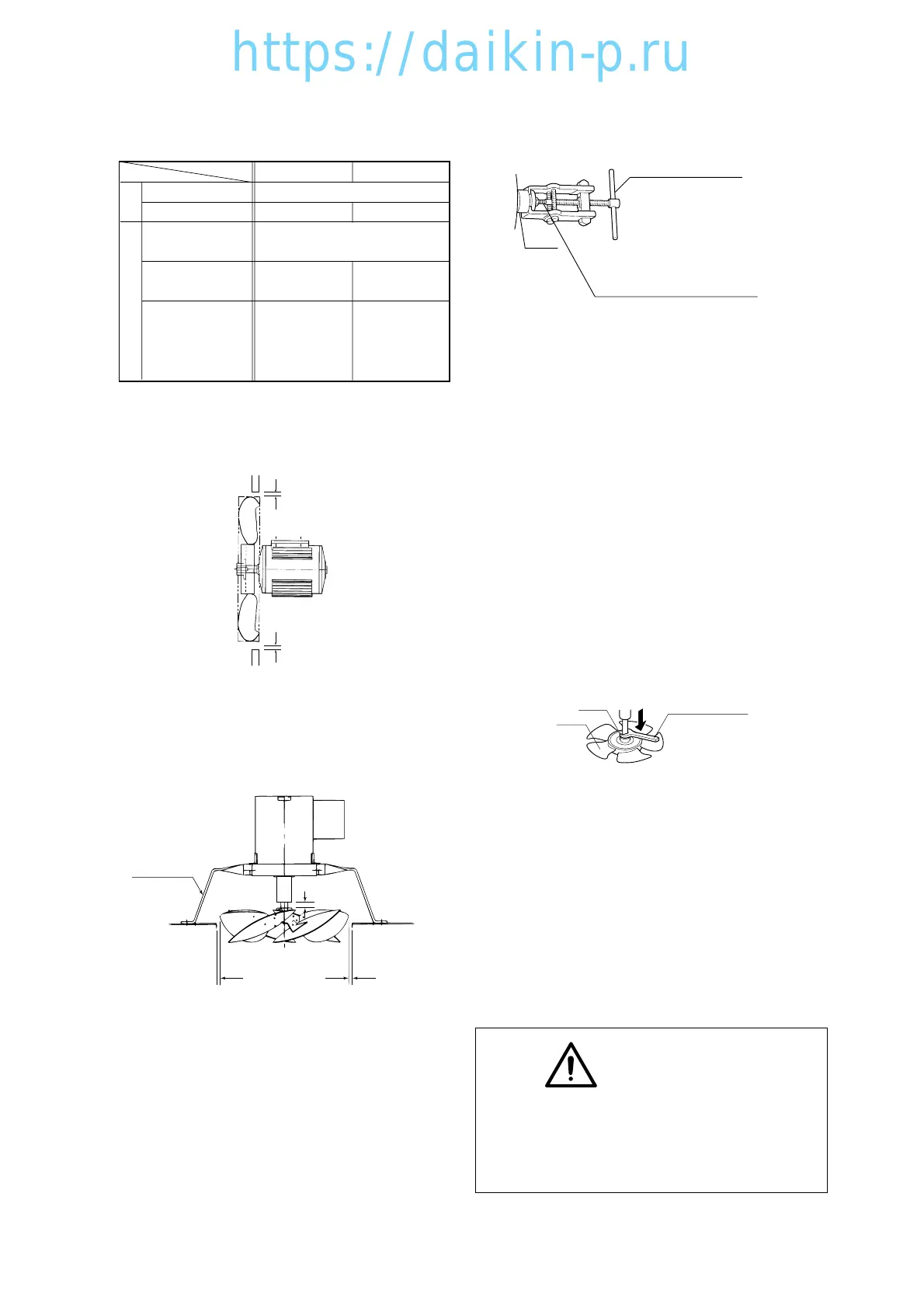

4.2.2 Fan and fan motor
(1) Specification
b. Evaporator fan and fan motor
When installing the fan, keep a clearance of 8
mm from the root of the shaft of the fan
installing section.
(3) Replacement procedure
1) Condenser fan
Remove the fan grille and the fan guide, and
loosen the two hexagonal sets of screws on
the boss of the fan, then pull the fan forward
out.
※If the boss is stuck to the motor shaft, use
the bearing drawing tool on the market to
pull out the fan.
2) Condenser fan motor
q Remove the condenser fan.
w Disconnect the fan motor cable from the
magnetic switch in the control box.
e Remove the fan motor mounting bolts, and
replace the motor.
r Install the fan and connect the cable.
t After replacement, confirm that the fan is
not in contact with the fan guide. (For checking,
rotate the fan by hand.)
3) Evaporator fan
Loosen the two sets of screws on the boss
portion of the fan, and pull the fan downward
out.
※ If the boss is stuck to the motor shaft, use a
large spanner as shown below.
4) Evaporator fan motor
q After removing the fan at item 3),
disconnect the fool proof wire connection.
w Remove the motor mounting bolts. (Do not
remove the motor mounting base.)
e After replacing the motor, connect the
wiring with fool proof wire connection.
r Install the fan.
t After replacement, make sure that the fan
is not in contact with the fan guide. (To
check, rotate the fan by hand.)
Motor
Fan
(2) Installation structure
a. Condenser fan and fan motor
10
10
Condenser fan and fan motor
55
Evaporator fan and motor
8
fixing plate
When the shaft of the bearing
drawing tool is short, apply
a bolt at the end of the shaft.
Boss
Bearing drawing tool
Large spanner
Boss
Fan
● How to use bearing drawing tool on the market.
04LXE10E-A(9-24)07.2.1918:50ページ4-12
