8.2.2 Special operation 2 (Applicable models:LXE10E-A18(A,B) and A30)
1.Name and function of each components
q
t
y
u
i
w
e
r
o
!0
Operation key
3
1
2
b
–12 –10 –8 –6 –4 –2
–2–3–4–5–6 –1
SP–5
OVER
2
INRANGE
HOURS
DAYS
1
UNDER
ALARM
R.H.
SUPPLY
RETURN
˚C / ˚F
%R H
DEFROST INRANGED–HUMID
COMP.
˚C
˚C
SP+5
DECOS
DAIKIN ELECTRONICCONTAINER OPERATION SYSTEM

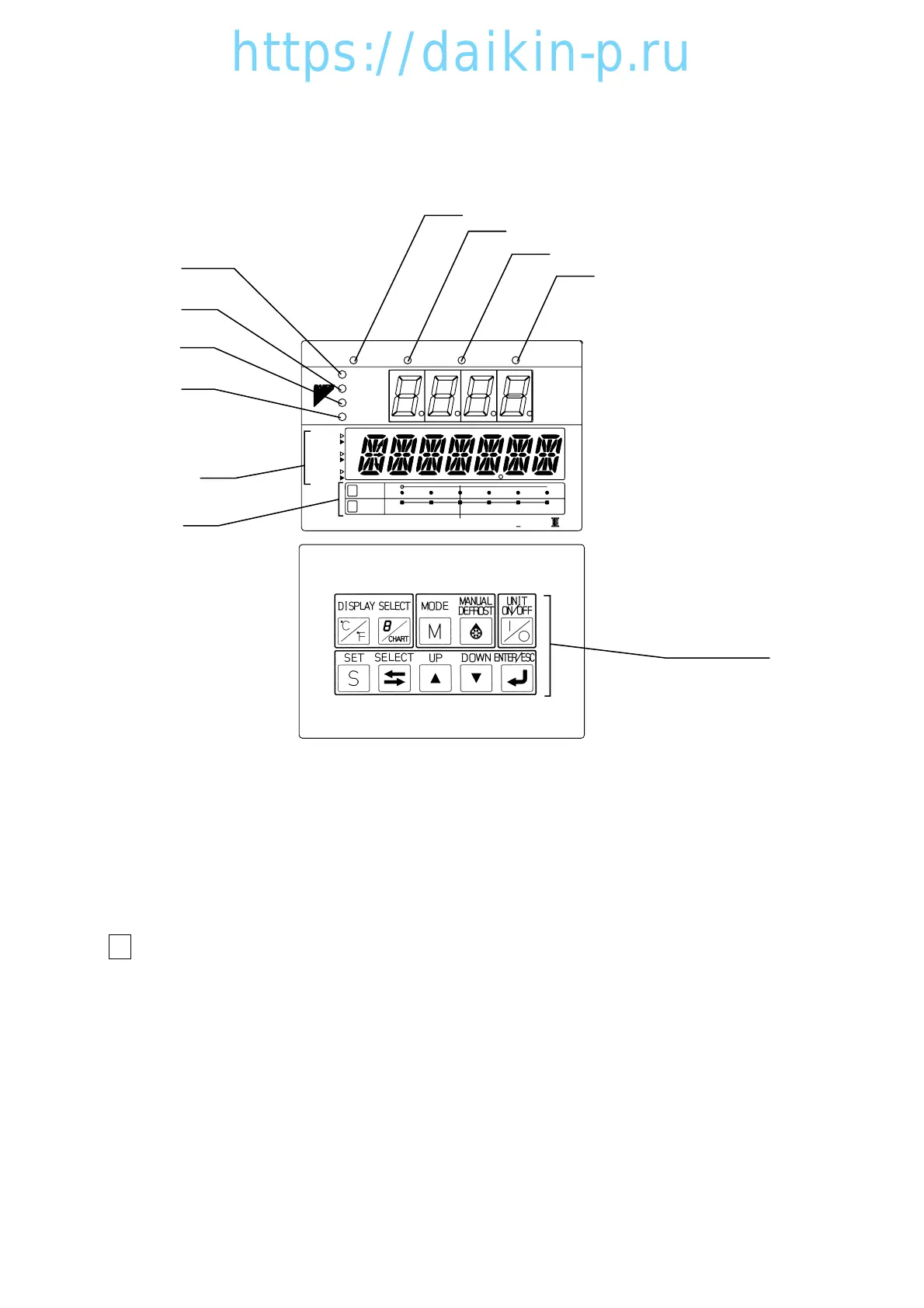

① SUPPLY LED (Lights when "supply air temperature" is indicated.)
② RETURN LED (Lights when "return air temperature" is indicated.)
③ ALARM LED (Lights alarm is generated.)
④ R.H.LED (Lights when "relative humidity" is indicated.)
⑤ COMP.LED (Lights when the compressor is running.)
⑥ DEFROST LED (Lights when the unit is under the defrosting operation.)
⑦ IN RANGE LED (Lights when the control temperature is in range.)
⑧ DE-HUMID.LED (Lights when the controller is the
dehumidification control optional.)
⑨ Temperature base (Used for the graphic chart indication
on the LCD.)
⑩ Time base (Used for the graphic chart indication on the LCD.)
Function of operation key
●MODE Key
Shift from "Current indication mode" G-SET operation." / Automatic pump down mode /
Dehumidication ON-A･OFF setting.
Note: When the dehumidification ON-A・OFF is set to ON, G-Set operating mode will be skipped.
