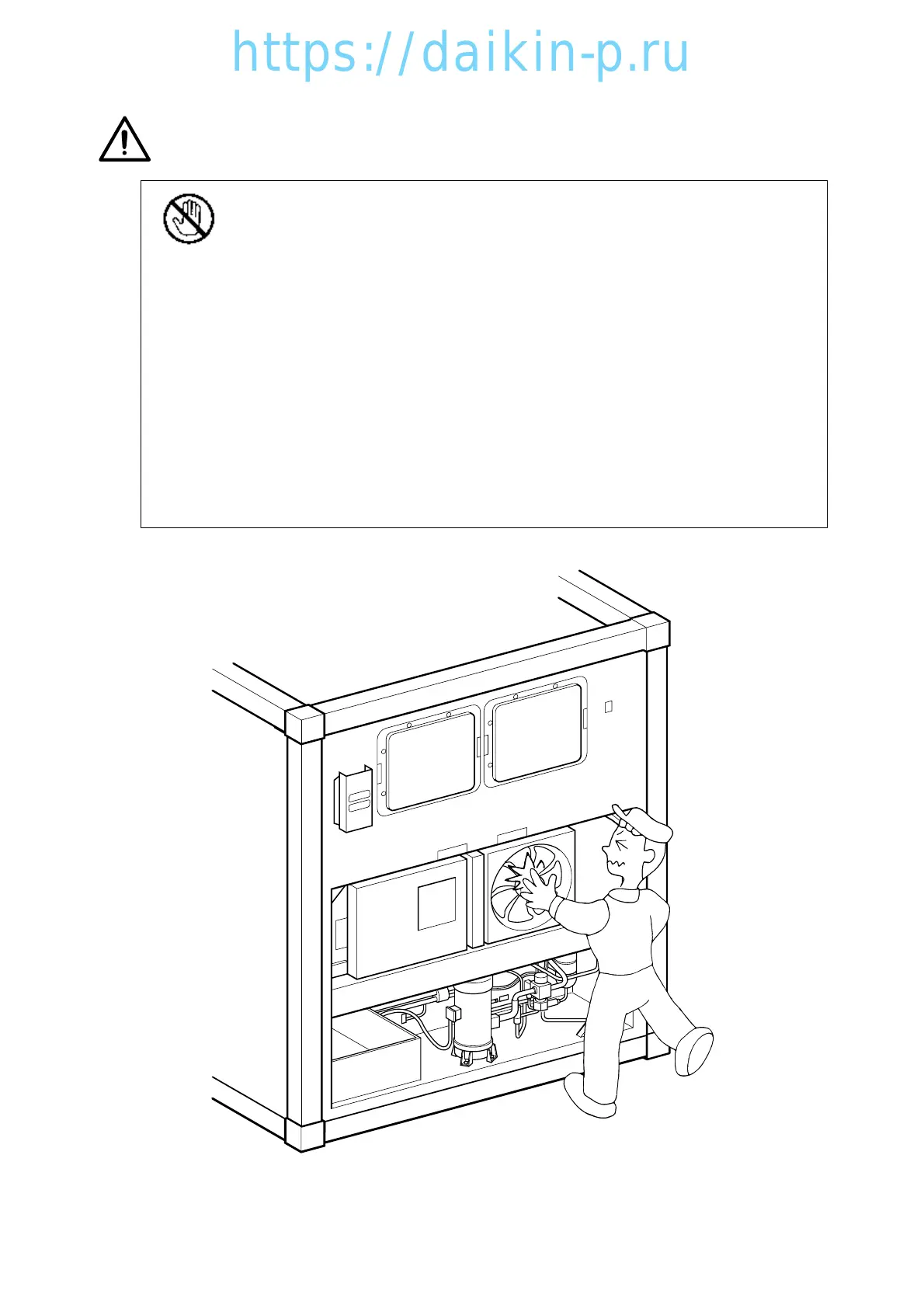

Do not touch the condenser fan while po
wer to the
unit is ON.
Bef
ore removing the condenser f
an cov
er
, tur
n off the
circuit break
er and disconnect the pow
er plug.
During air-cooled operation
: Condenser f
an ma
y star
t
and stop automatically f
or
the refrigerant high
pressure control.
During water-cooled operation: Condenser f
an ma
y star
t
and stop automatically f
or
cooling of the control bo
x.
5
W
ARNING
00LXE10E-A(01-08)
07.2.23
4:28
PM
ページ5
https://daikin-p.ru
5
7
Table of Contents
Default Chapter
3
Table of Contents
3
Safety Precautions
5
Danger
5
Warning
6
Caution
7
Introduction
11
Operation Range
11
Basic Names of Components
11
Basic Operation of Refrigeration Unit
12
Starting Operation
12
Checking During Operation
13
Procedure after Operation
13
Adjust the Ventilation
14
General Description
15
Main Specifications
15
Names of Components
16
Outside
16
Inside
19
Control Box
21
Set Point of Functional Parts and Protection Devices
26
Operating Pressure and Running Current
27
Operation Modes and Control
31
Frozen Mode
32
Chilled and Partial Frozen Mode
34
Defrosting Mode
36
Dehumidification (Optional)
39
Common Control
40
Electronic Controller
44
Function Table
44
Basic Operation of Electronic Controller
46
Control Panel
46
Operation Procedure
49
Operation Procedure Flow Chart
49
Mode Operation Procedure
52
Current (Operation State) Indication Mode
52
Operation Setting Mode
53
Battery Mode
54
Mode Operation
55
LED Display Light-OFF Mode
57
Sensor Indication Mode
58
Temperature Record Scroll Mode
61
Alarm Record Scroll Mode
64
PTI Record Scroll Mode
66
Setting Flow Chart
67
Optional Function Setting Mode
69
Basic Function Setting Mode
70
Optional Condition Setting Mode
72
Input Data Mode
74
Controller Software Download Mode
75
Alarm Display and Back-Up Function
76
Alarm List
76
Back-Up Operation at Sensor Malfunction
77
Back up Battery
79
Specifications
79
Function
79
Battery Check
79
Battery Replacement (Rechargeable Battery)
80
Information Interchange with Personal Computer
81
Data Logging
82
Software Configuration
83
Inspection Procedure for the Electronic Controller
85
Controller Replacement and the Initial Setting
86
Controller Replacement
86
Compatibility of Controller DecosⅲD with ⅢC and Ⅲb
87
Controller DecosⅲC
88
PTI (Pre-Trip Inspection) and Periodic Inspection
93
Inspection Item
94
Automatic PTI (Pre-Trip Inspection)
97
PTI Selection Mode
98
Short PTI (S.PTI)
99
Full PTI (F.PTI)
100
Alarm List During PTI (Pre-Trip Inspection)
101
Manual Check (M.CHECK)
102
Chartless Function
104
Chart Indication Function
104
P Code (Pull down Time Indication)
106
Chartless Code Display Function
107
List of Chartless Code
107
H-Code
108
D-Code
110
Communication Modem
111
Service and Maintenance
112
Maintenance Service
112
Collection of Refrigerant
112
Gauge Manifold
112
Automatic Pump down
114
Refrigerant Recovery and Charge
116
Main Components and Maintenance
119
Scroll Compressor
119
Fan and Fan Motor
123
And CT Board (EC9756)
124
Electronic Expansion Valve
126
Suction Modulation Valve
127
Drier
128
Solenoid Valve
129
Discharge Pressure Regulating Valve
130
Check Valve
130
High-Pressure Switch (HPS)
131
Low Pressure Transducer (LPT)
131
High Pressure Transducer (HPT)
132
Air-Cooled Condenser and Evaporator
132
Fusible Plug
132
Liquid/Moisture Indicator
133
Evacuation and Dehydrating
134
Optional Devices
136
Electronic Temperature Recorder
136
Standard Type
136
Rechargeable Battery Type
138
USDA Transportation
139
Type of USDA Sensor/Receptacle
139
Initial Setting
139
USDA Sensor Calibration
139
USDA Transportation Requirement
139
USDA Report Required by USDA Local Officer
139
Transfresh
141
Troubleshooting
143
Refrigeration System and Electrical System
143
Alarm Codes on Electronic Controller
155
Troubleshooting for Automatic PTI (J-Code)
159
Diagnosis Based on the Recording Chart
161
Emergency Operation
164
Emergency Operation of Controller
164
Short Circuit Operation of Controller
165
Opening Adjustment of Electronic Expansion Valve
167
Opening Adjustment of Suction Modulation Valve
168
Automatic Back up for Supply/ Return Air Temperature Sensors
169
Appendix
170
Standard Tightening Torques for Bolts
170
Standard Tightening Torque for Flare Nut
170
Resistance of Motor Coil and Solenoid Valve Coil
170
Standard Tightening Torque for Electronic Expansion Valve Coil(EV)
170
Hfc134A, Temperature-Vapor Pressure Characteristics Table
171
Temperature Conversion Table and Temperature Sensor (SS/RS/DSS/DRS/RSS/RRS/EIS/EOS/SGS/AMBS) Characteristics Table
172
Temperature Conversion Table and Temperature Sensor (DCHS) Characteristics Table
173
High Pressure Transducer Characteristics Table
173
Low Pressure Transducer Characteristics Table
173
Piping Diagram
174
Electric Wiring Pilot Lamps and Monitoring Circuit
175
Fuse Protection Table
176
Schematic Wiring Diagram (Connector Type Terminal Board and Rechargeable Battery)
178
Stereoscopic Wiring Diagram (Connector Type Terminal Board and Rechargeable Battery)
179
Schematic Wiring Diagram (Connector Type Terminal Board, Temperature Recorder and Dry Battery)
180
Stereoscopic Wiring Diagram (Connector Type Terminal Board, Temperature Recorder and Dry Battery)
181
Schematic Wiring Diagram (Screwed Cramp Type Terminal Board, Temperature Recorder and Dry Battery)
182
Stereoscopic Wiring Diagram (Screwed Cramp Type Terminal Board, Temperature Recorder and Dry Battery)
183
Optional Functions Manual
184
Electronic Temperature Recorder
185
Standard Type
185
Rechargeable Battery Type
187
Electronic Controller
188
Special Operation 1
188
Special Operation 2
192
Special Operation 3
205
Special Controller Setting
209
Setting Temperature and Operation Mode (with Partial Frozen Mode)
213
Defrost Interval
214
G-SET Operation 1
215
G-SET Operation 2
215
Valve Mode
216
Dehumidification Control
218
Manual Check Selection Mode
222
F.PTI Specification
223
Rechargeable Battery
225
Control Box
226
Installation of Personal Computer Receptacle and Spare Fuse in the Control Box
226
Cable Clamp Bracket 1
227
Cable Clamp Bracket 2
228
USDA Transportation
229
Type of USDA Sensor/Receptacle
229
Initial Setting
229
USDA Sensor Calibration
229
USDA Transportation Requirement
229
USDA Report Required by USDA Local Officer
229
Transfresh
231
Special Service Port
233
Collection of Refrigerant
233
Attaching and Removing of Manifold Gauge
233
Pressure Gauge
235
