11. BASIC FUNCTION SETTING MODE
<Key operation to enter/exit>
<Key operation in this mode>
Whenever the key is pressed, the display changes.
Turn the power breaker OFF after the setting.
S
CONTROLLER
SETTING
LOGGING INTERVAL
SETTING
DATA RECORDER
SENSOR ON/OFF
SETTING
S
S
S
Select "A", "b" or "c" on the LED while the LCD displays "dECOS-3".
Whenever the or key is pressed, the indication of "A" or "b" or "c" is changed.
Press the key to determine the setting.
"A" represents "DECOS-III a", "b" represents "DECOS-III b" and "c" represents
"DECOS-III c".
The unit is comes with the "DECOS-III c" additionally.
Select "C", and press key to determine the setting.
To set the logging interval:
Select "15", "30" or "60" on the LED while the LCD displays "LOG INT".
The unit is in minutes.
Whenever the or key is pressed, the indication of "15" or "30" or "60" is changed.
Press the key to determine the setting.
To set the data recorder sensor ON/OFF:
Select "ON" (in use) or "OFF" (not in use) on the LED while the LCD displays
"REC SEN" .
Whenever the or key is pressed, the indication of "ON" or "OFF" is
changed. Press the key to determine the setting.

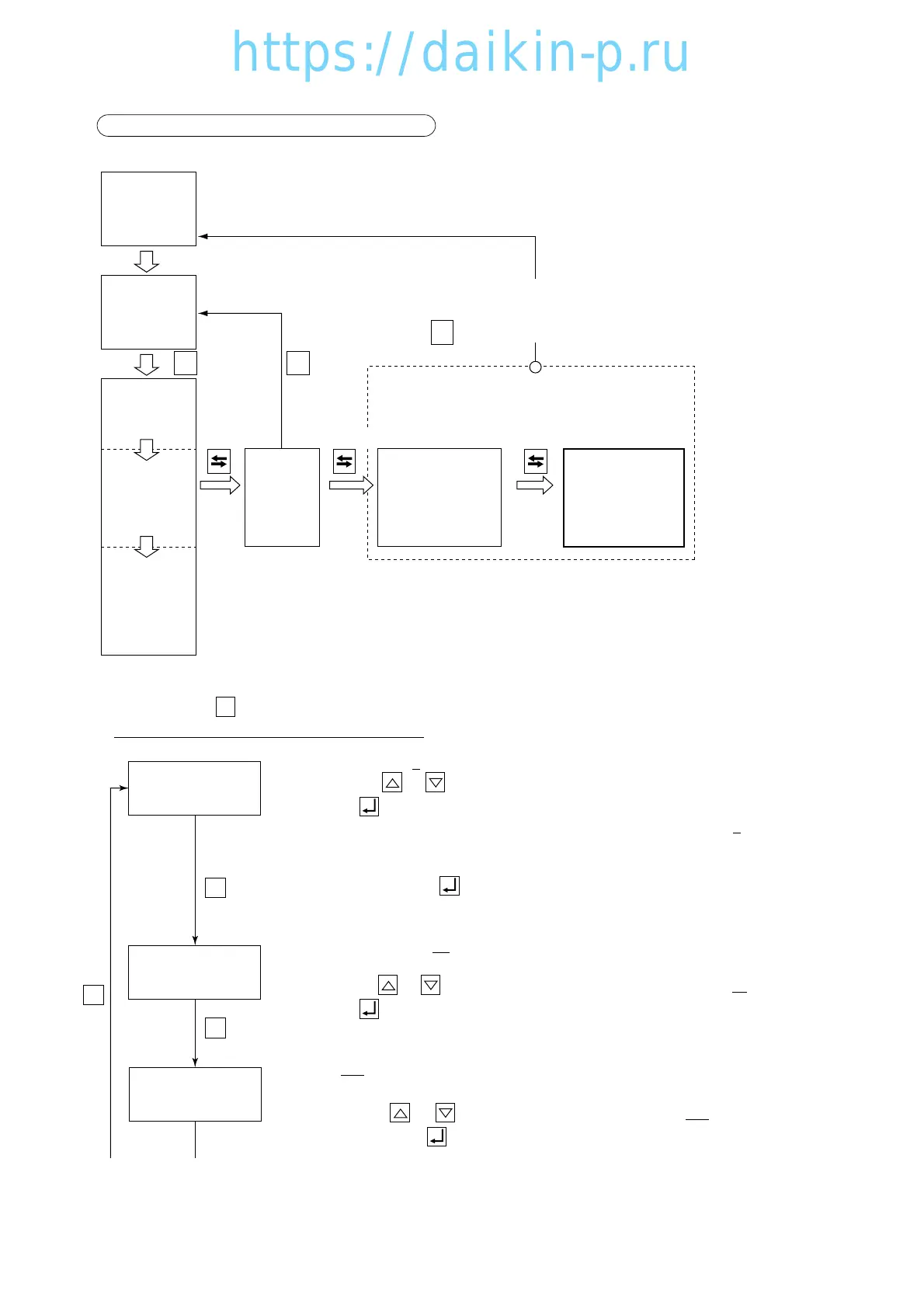

I/O ON I/O OFF
I/O
Power OFF
Unit OFF
All indication
lights on
(for 3 sec.)
Starting
preparation
(for 18 sec.)
※ 1
Current
indication
(Operation state)
Circuit Breaker ON
Circuit Breaker OFF
after setting change
( OFF when no setting changed)
for 3 sec. for 3 sec.
※ 10
※ 11
F. PTI
S. PTI
M. CHECK
Optional Function
Setting
Basic Function
Setting
for 3 sec.
