12. OPTIONAL CONDITION SETTING MODE
<

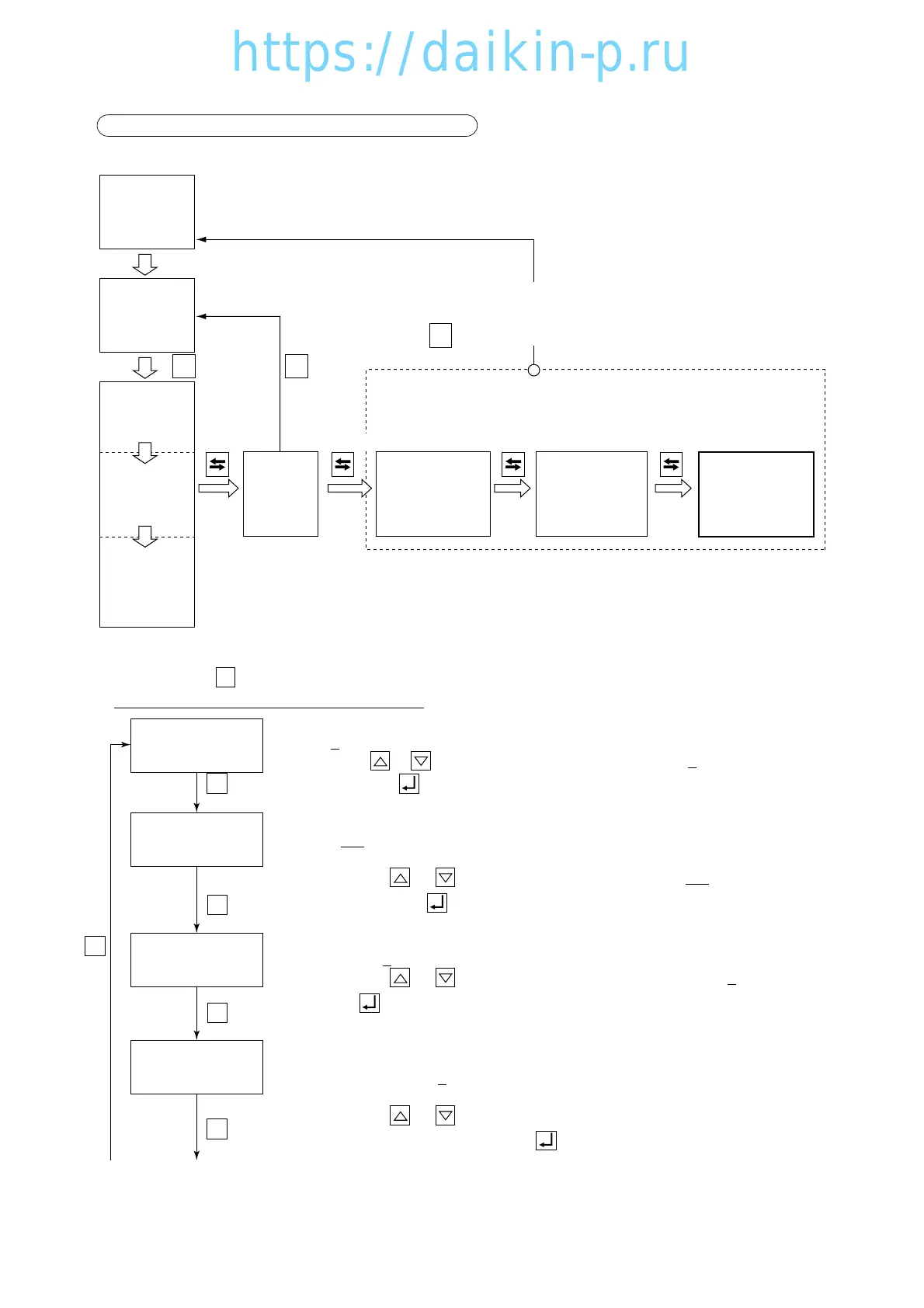

Key operation to enter/exit
>
<Key operation in this mode>
Whenever the key is pressed, the indication changes.
Turn the power breaker OFF after the setting.
S
With dEG C/F mode, can be selected.
Select "C" or "F" on the LED when the LCD displays "d EG C/F".
Whenever the or key is pressed, the indication of the selection "C" or "F".
changes. Press the key to determine the selection. "C" stands for ˚C/kPa while "F" for ˚F/PSI.
To set the chartless code (D code /H code):
Select "ON" (indication of D/H code) or "OFF" (no indication of D/H code) on
the LED when the LCD displays "CHARTLS".
Whenever the or key is pressed, the indication of "ON" or "OFF" is
changed.Press the key to determine the setting.
To set the USDA sensor selection:
Select "1" or "2" on the LED when the LCD displays "USdA1/2".
Whenever the or key is pressed, the indication of "1" or "2" is changed.
Press the key to determine the setting.(see mode detail→5-4)
H001 code is displayed when the control temperature does not lower by 3 ˚C
or more for every 4 hours in pull-down operation.
Select "1" ˚C ,"2" ˚C ,"3" ˚C ,"4" ˚C ,"5" ˚C or "10" ˚C on the LED when the LCD
displays "H001".
Whenever the or key is pressed, the indication of the selection from
"1"˚C to "10" ˚C changes. Press the key to determine the setting.
Refer to page 3-65.
H001
CHARTLESS CODE
INDICATION
SETTING
S
S
USDA SENSOR
1/2 SELECTION
SETTING
S
S
S
d EG C/F
I/O ON I/O OFF
I/O
Power OFF
Unit OFF
All indication
lights on
(for 3 sec.)
Starting
preparation
(for 18 sec.)
※ 1
Current
indication
(Operation state)
Circuit Breaker ON
Circuit Breaker OFF
after setting change
( OFF when no setting changed)
for 3 sec. for 3 sec. for 3 sec.
※ 10
※ 12※ 11
F. PTI
S. PTI
M. CHECK
Optional
Function
Setting
Basic Function
Setting
Optional
Condition
Setting
for 3 sec.
