6.7 USB CONNECTION
(21x-x2x models only)
For Matrix 210 21x-020 models, the USB connection is possible in two different layouts. The
default baud rate is 115200. To maximize data transfer you can set it up to 921600 by
configuring the reader though the Communication parameters via VisiSet™. For further
details, see the Communication Folder in the VisiSet™ Help On Line.
In a Point-to-Point layout the reader is connected to a local host through its USB cable. No
external power supply is necessary.

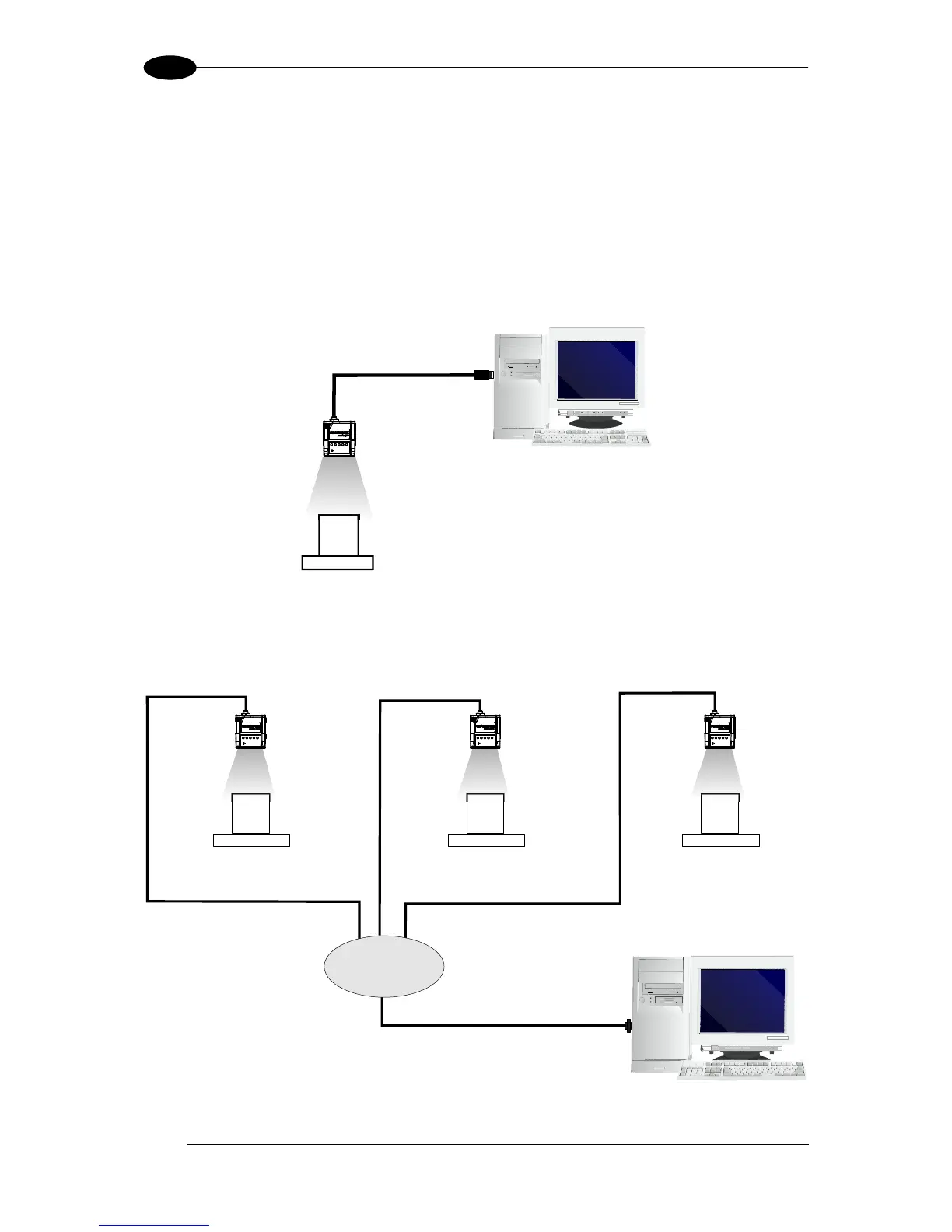

Figure 106 - USB Point-to-Point Layout
One or more Matrix 210™ USB models can be connected to USB Hub. The HUB must be
able to supply 500 mA to each port.
Figure 107 – Multi USB Hub Layout
