5.7 ETHERNET INTERFACE (MATRIX 210 21X-X1X MODELS ONLY)
The Ethernet Interface can be used for TCP/IP communication with a remote or local host
computer by connecting the reader to either a LAN or directly to a host PC. There is no need
to use a crossover adapter since Matrix 210™ incorporates an auto-cross function.
The following is an example of a connection to a LAN using a CAB-ETH-M0x cable:
M12 D-Coded Connector Pinout
Pin
Name
Function
1
TX+
Transmitted data (positive pin)
2
RX+
Received data (positive pin)
3
TX-
Transmitted data (negative pin)
4
RX-
Received data (negative pin)
MATRIX
3
4
2
1
TX-
RX+
TX+
RX-
LAN
4
2
6
3
1
5
7
8
TX-
RX+
TX+
RX-
M12
D-coded
RJ45

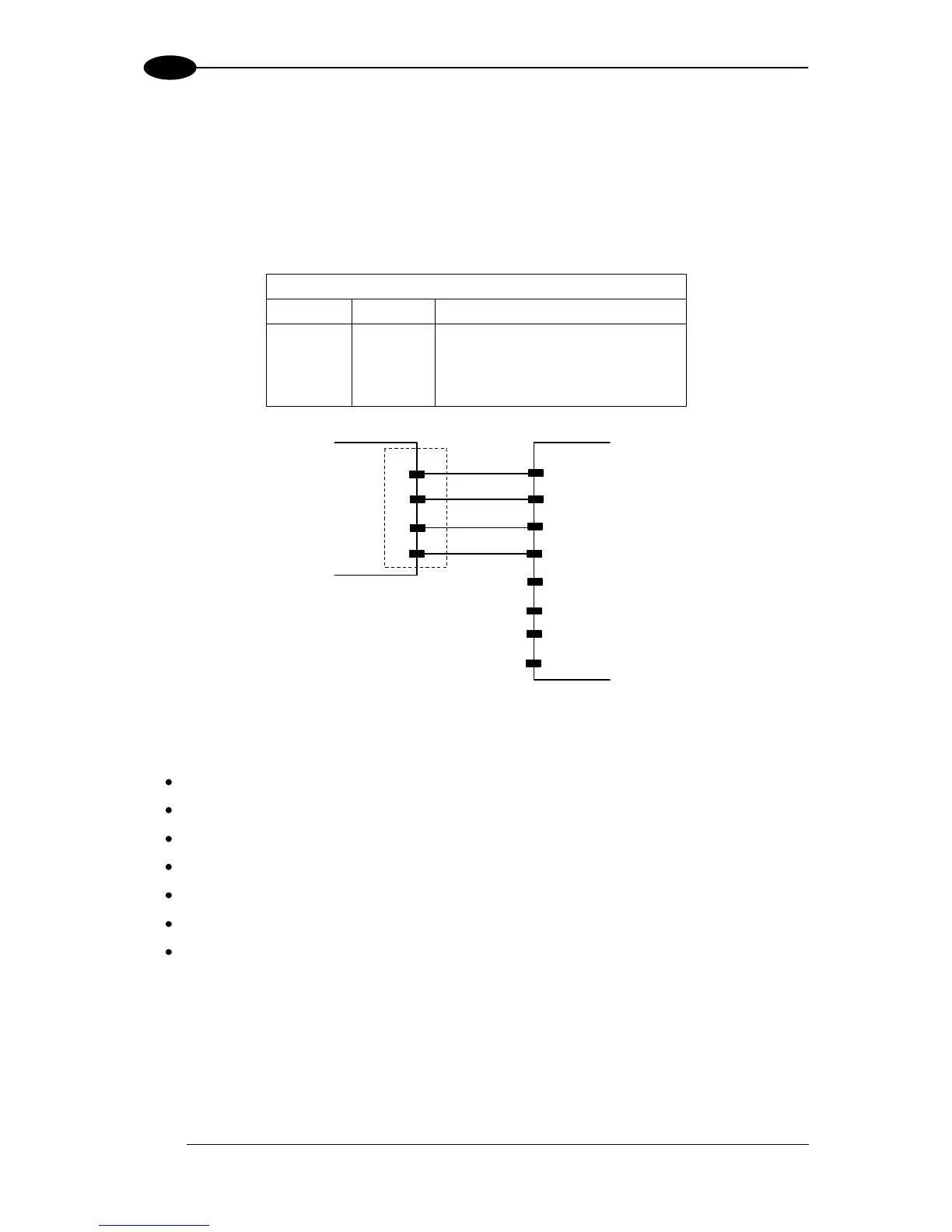

Figure 75 - Straight-Through Cable
On the Matrix 210™ Ethernet interface the following communication channels are available:
Data Socket
Image Socket
WebSentinel Socket
Image FTP Client
HTTP Server
Ethernet IP
Modbus TCP
For further details refer to the Ethernet Folder in the VisiSet™ Help On Line and to the
"Matrix Ethernet Service Guide.pdf" document provided as supplementary documentation.
