5.10 USER INTERFACE
The following table contains the pinout for standard RS232 PC Host interface. For other user
interface types please refer to their own manual.
RS232 PC-side connections
1
5
9
6
9-pin male connector
13
25
14
1
25-pin male connector
Pin
Name
Pin
Name
2
RX
3
RX
3
TX
2
TX
5
GND
7
GND
7
RTS
4
RTS
8
CTS
5
CTS

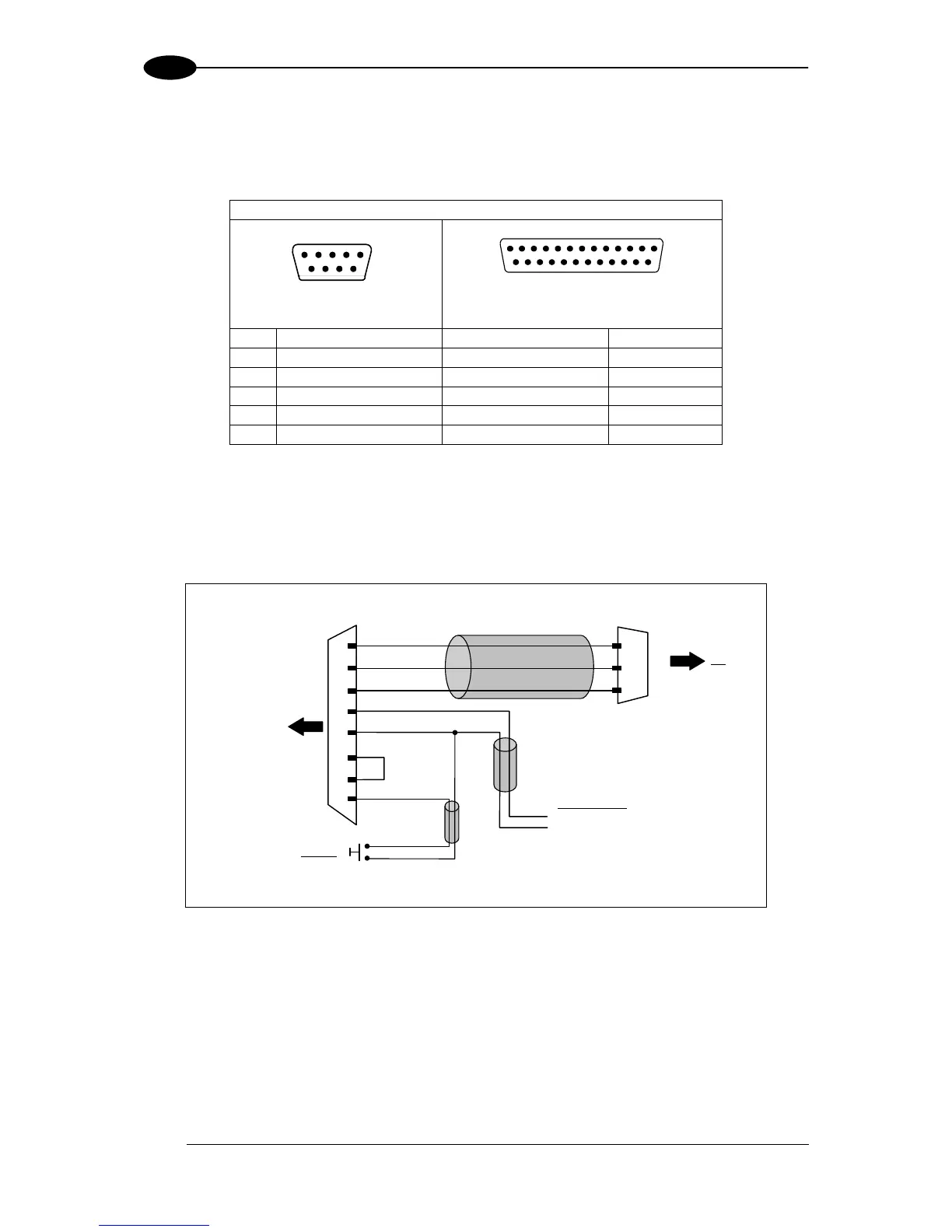

How To Build A Simple Interface Test Cable:
The following wiring diagram shows a simple test cable including power, external (push-
button) trigger and PC RS232 COM port connections.
Matrix 210™
25-pin D-sub male
7
20
GND
RX
TX
21
25
13
GND
Vdc
9-pin D-sub female
GND
TX
RX
PC
2
3
5
18
13
I1A
Vdc
Power Supply
Vdc (10 – 30 Vdc)
Power GND
Trigger
I1B
19
Test Cable for Matrix 210™
Figure 87- Test Cable for Matrix 210™
