MATRIX 210™ REFERENCE MANUAL
10
1
Set the communication parameters from the "Options" menu. Then select "Connect", the
following window appears:

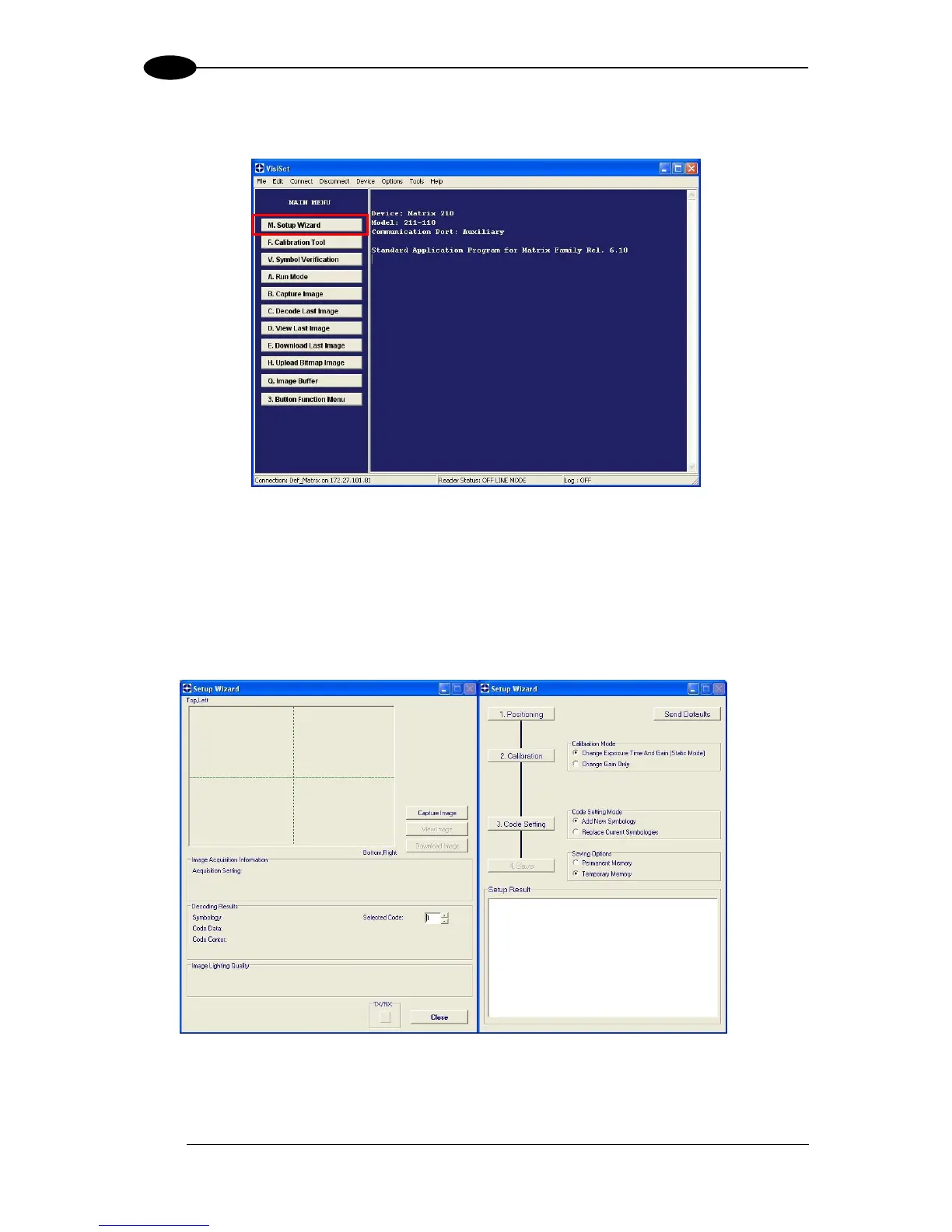

Figure 11 - VisiSet™ Main Window After Connection
STEP 6 – CONFIGURATION USING SETUP WIZARD
The Setup Wizard option is advised for rapid configuration or for new users. It allows reader
configuration in a few easy steps.
1. Select the Setup Wizard button from the Main menu.
Place the application specific code in front of the reader at the correct reading distance
(see step 2 and the Reading Features table in the chp. 7).

Datalogic Matrix 210 Specifications

General

Brand	Datalogic
Model	Matrix 210
Category	Barcode Reader
Language	English
