MATRIX 210™ REFERENCE MANUAL
4.7 EXTERNAL LIGHTING SYSTEMS
If an External Illuminator is used, it can be powered from the CBX connection box. It must be
connected to the Vdc and GND terminal clamps.
Power is available directly to the Illuminator, independently from the Power
Supply Switch inside the CBX.
In the case of the LT-700 illuminator, one of the available digital outputs must be connected
as the control signal. In VisiSet™, configure the Output Line Function parameter to "External
Lighting System" and the Matrix Output x External Lighting System Mode parameter to
"Triggered".
Control Signal for LT-700
illuminators
Power to External
Illuminator

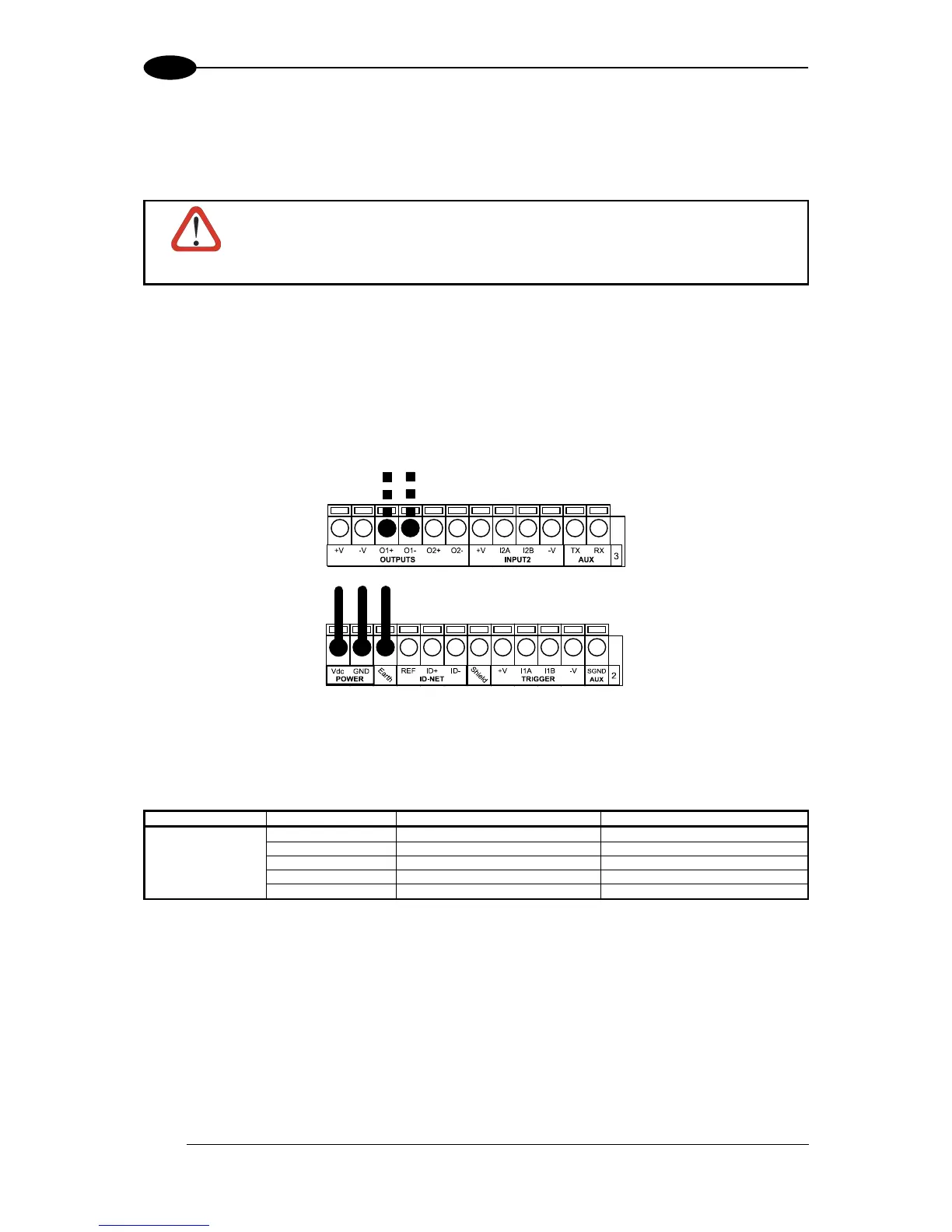

Figure 60 – External Lighting System Connections
Below is a table summarizing the External Illuminator wiring and power requirements:
