INSTALLATION
39
3

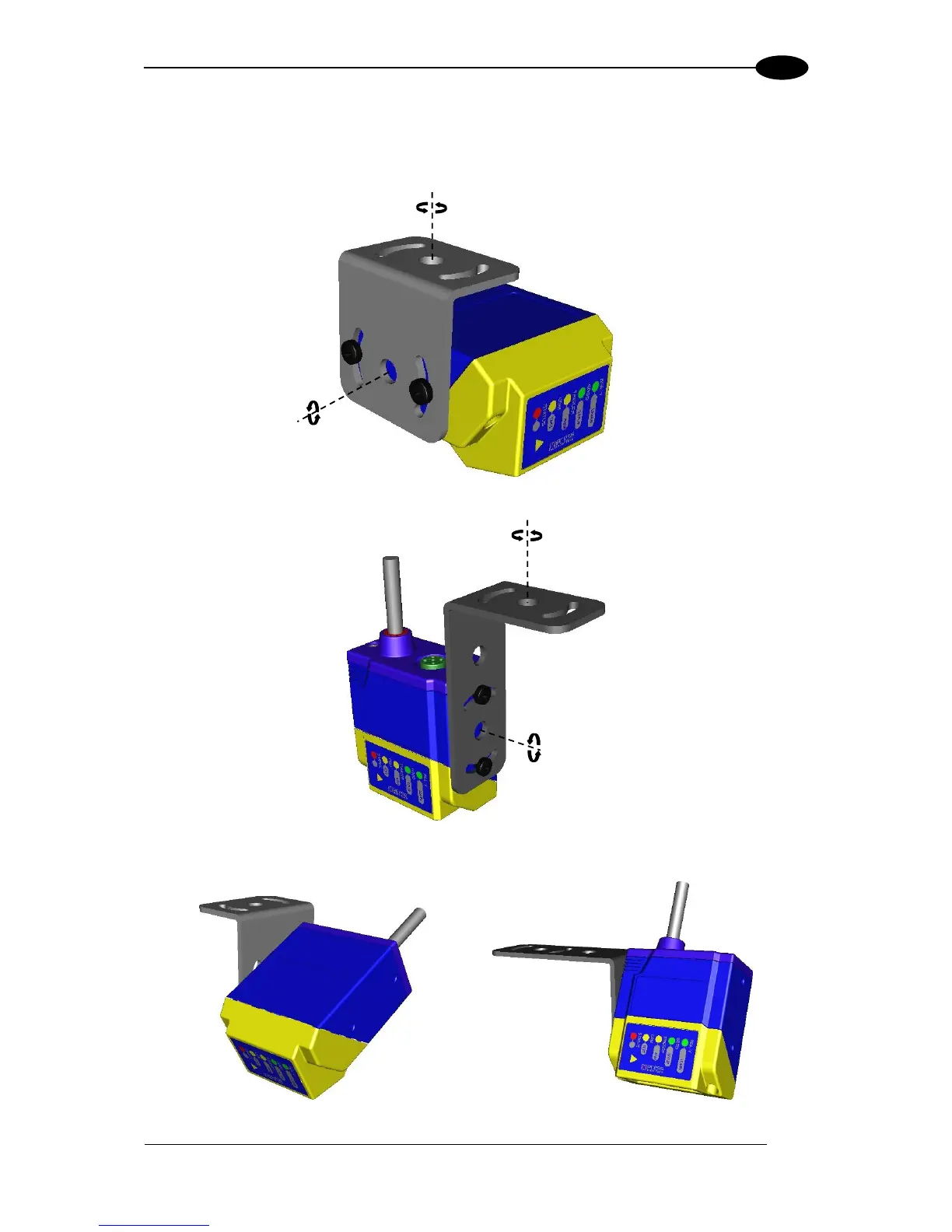

3.3 MOUNTING AND POSITIONING MATRIX 210™
Using the Matrix 210™ mounting brackets you can obtain rotation on the various axes of the
reader as shown in the diagrams below:
Figure 31 –90° Model with ST-337 Mounting Bracket - Internal Positioning
Figure 32 –Straight Model with ST-336 Mounting Bracket - Internal Positioning
Figure 33 –Mounting Bracket External Positioning
Tilt
Pitch
Tilt
Pitch
