MATRIX 210™ REFERENCE MANUAL
28
2

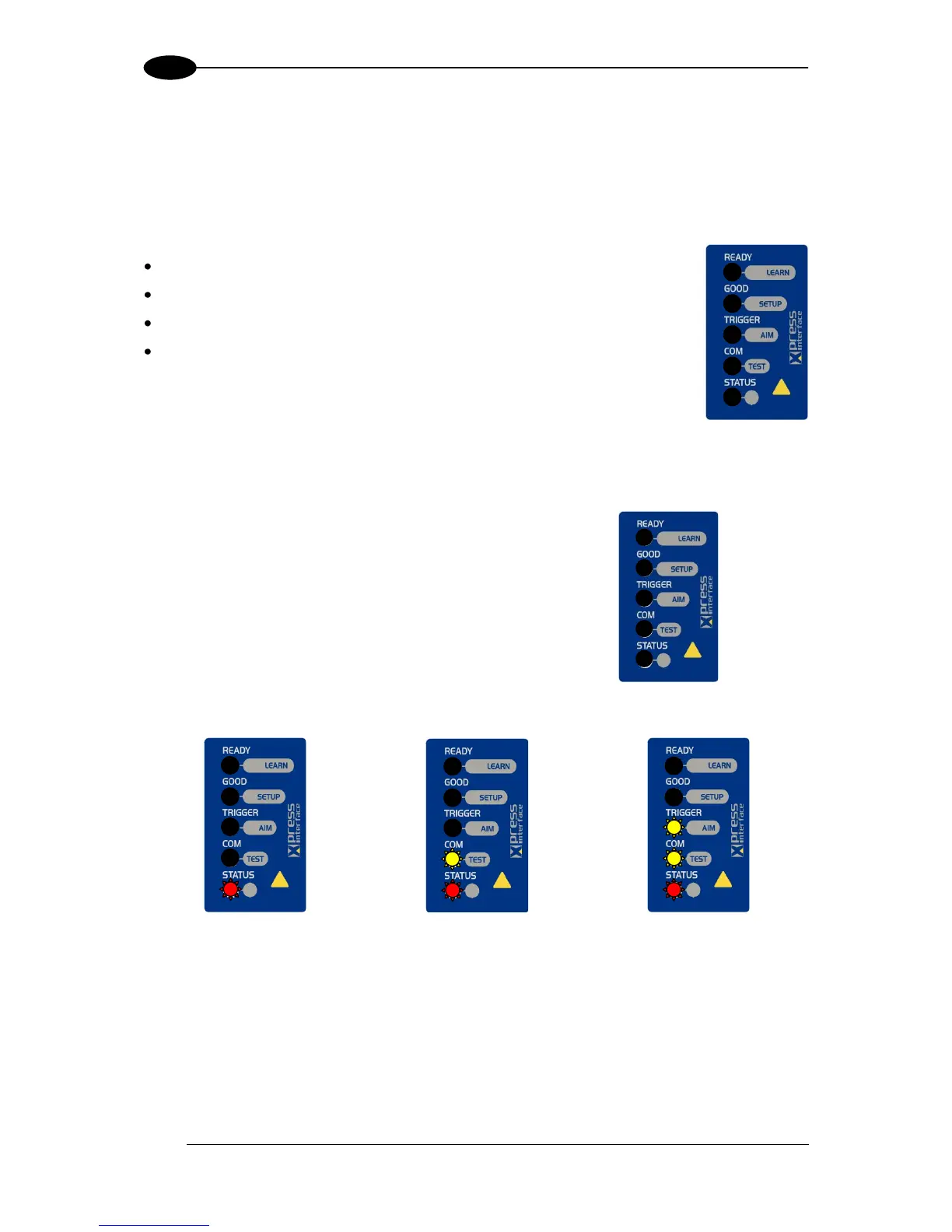

2.5 X-PRESS™ HUMAN MACHINE INTERFACE
X-PRESS™ is the intuitive Human Machine Interface designed to improve ease of
installation and maintenance.
Status information is clearly presented by means of the five colored LEDs, whereas the
single push button gives immediate access to the following relevant functions:
Learn to self-detect and auto-configure for reading unknown codes.
Setup to perform Exposure Time and Gain calibration.
Aim/Locate to turn on the blue ring to aid positioning.
Test with bar graph visualization to check static reading performance.
2.5.1 X-PRESS™ Functions
Quick access to the following functions is provided by
an easy procedure using the push button:
1 – Press the button (the Status LED will give a
visual feedback).
2 – Hold the button until the specific function LED is
on (Test, Focus, Setup or Learn).
3 – Release the button to enter the specific function.
Once button is pressed, the cycle of LEDs activation is as follows:

Release button
to Exit

Release button
to enter Test Mode

Release button
to enter Aim/Locate Mode
