MATRIX 210™ REFERENCE MANUAL
60
5
5 25-PIN CABLE ELECTRICAL CONNECTIONS
5.1 25-PIN CONNECTOR
The Matrix 210™ reader is equipped with a 25-pin male D-sub connector for connection to
the power supply, serial interfaces and input/output signals. The details of the connector pins
are indicated in the following table:
13
25
14
1

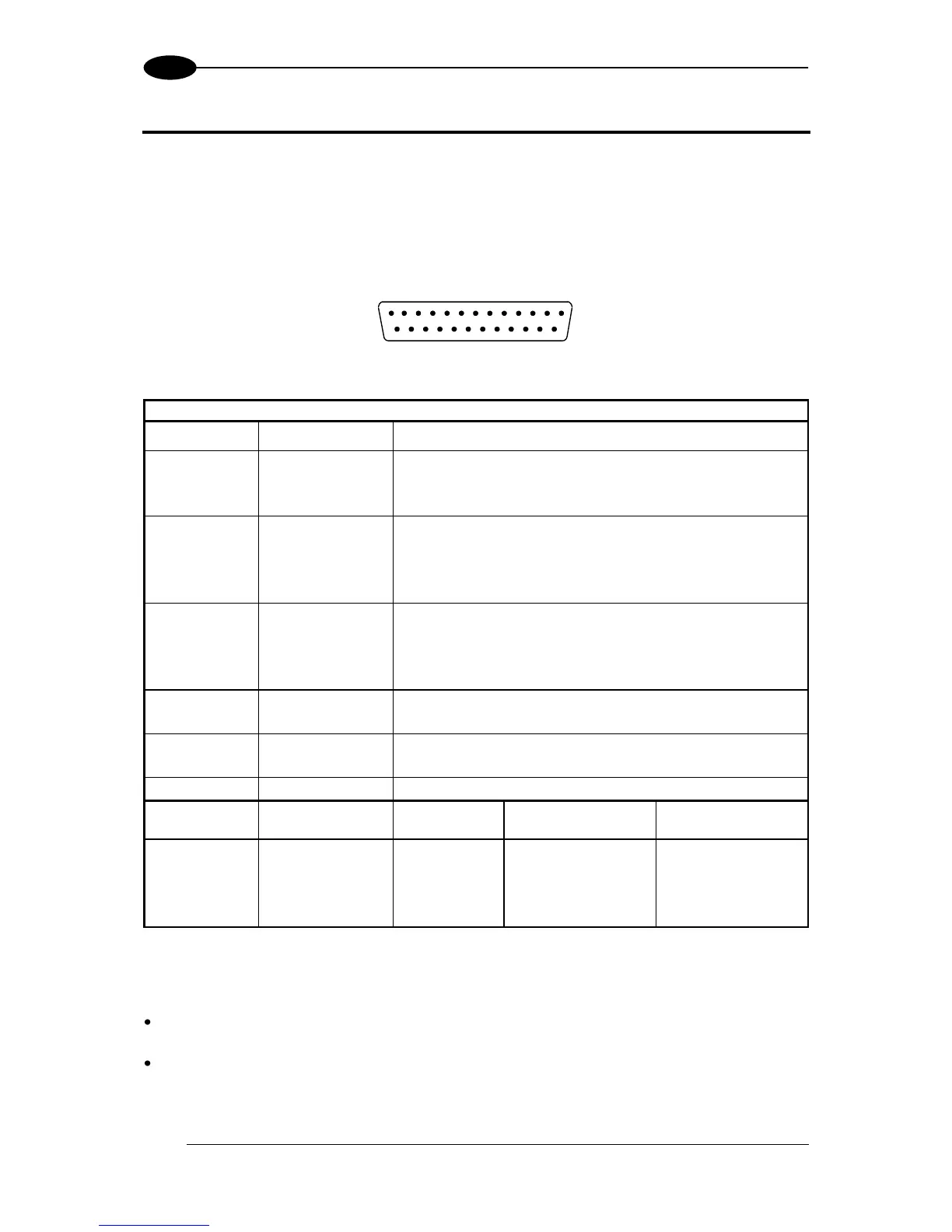

Figure 61 - 25-pin Male D-sub Connector
25-pin D-sub male connector pinout
Pin
Name
Function
13, 9
Vdc
Power supply input voltage +
25, 7
GND
Power supply input voltage -
1
CHASSIS
Cable shield connected to chassis
18
I1A
External Trigger A (polarity insensitive)
19
I1B
External Trigger B (polarity insensitive)
6
I2A
Input 2 A (polarity insensitive)
10
I2B
Input 2 B (polarity insensitive)
8
O1+
Output 1 +
22
O1-
Output 1 -
11
O2+
Output 2 +
12
O2-
Output 2 -
20
RX
Auxiliary RS232 RX
21
TX
Auxiliary RS232 TX
23
ID+
ID-NET™ network +
24
ID-
ID-NET™ network -
14, 15, 16, 17
NC
Not Connected
Pin
Name
RS232
RS485
Full-Duplex
RS485
Half-Duplex
2
MAIN INTERFACE
(SW SELECTABLE)
TX
TX+
RTX+
3
RX
*RX+
4
RTS
TX-
RTX-
5
CTS
*RX-
* Do not leave floating, see par. 5.4.2 for connection details.
In order to meet EMC requirements:
connect the reader chassis to the plant earth ground by means of a flat copper braid
shorter than 100 mm;
for direct connections, connect the main interface cable shield to pin 1 of the 25-pin
connector.
