INSTALLATION
22 P2X-SERIES™
MECHANICAL DIMENSIONS
The P2x-Series™ cameras can be installed to operate in different positions. The four
screw holes (M4 x 6) on the body of the camera are for mounting the heatsink to the
camera and this latter to the provided brackets. The diagram below gives the overall
dimensions of the camera and may be used for its installation.
P2x-Series™ (14 LEDs ILLUMINATOR)

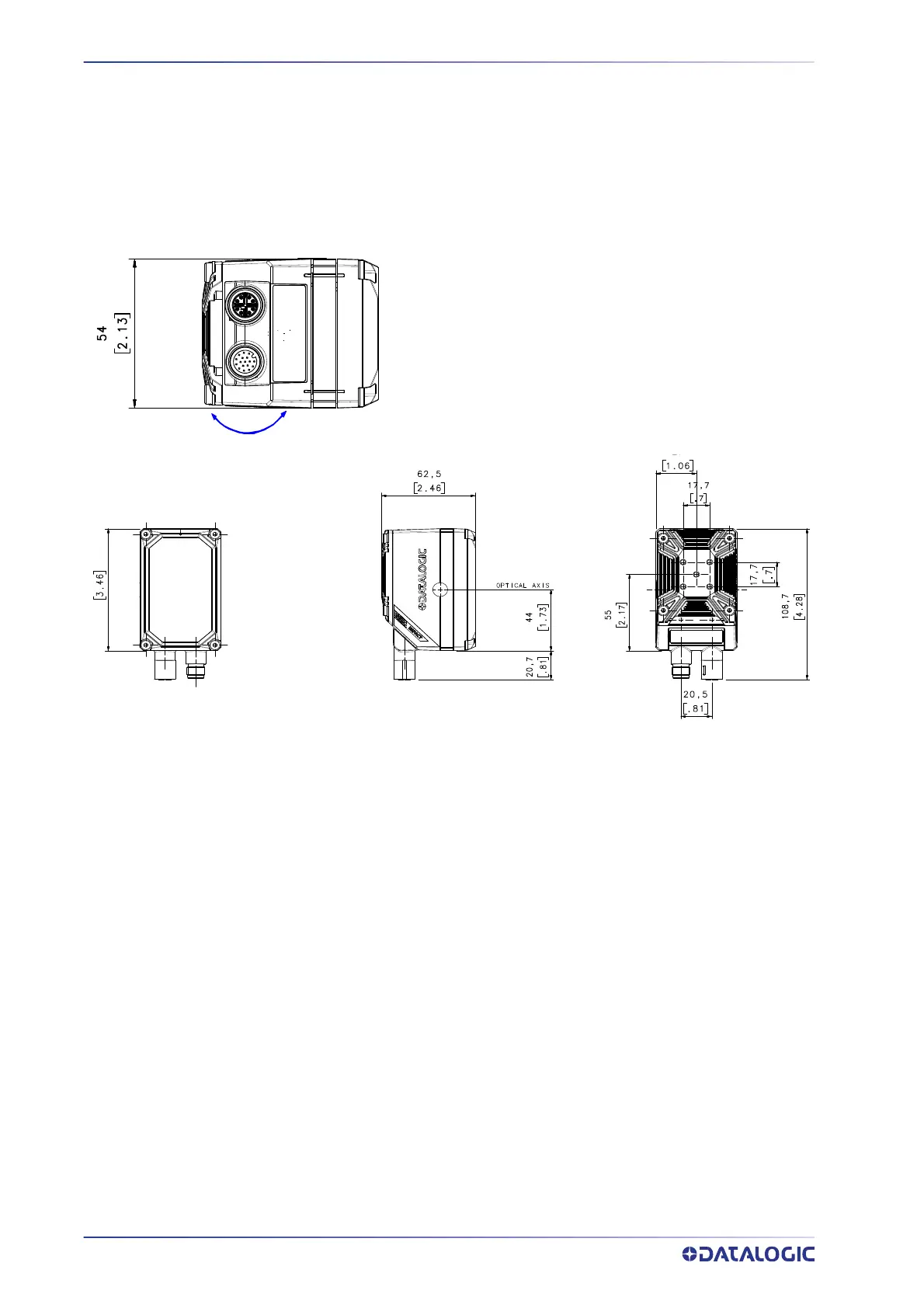

Figure 2 - Overall Dimensions with Connector at 0°
Connector block
rotates to 90°
position
mm
[in]
