ELECTRICAL CONNECTIONS
42 P2X-SERIES™

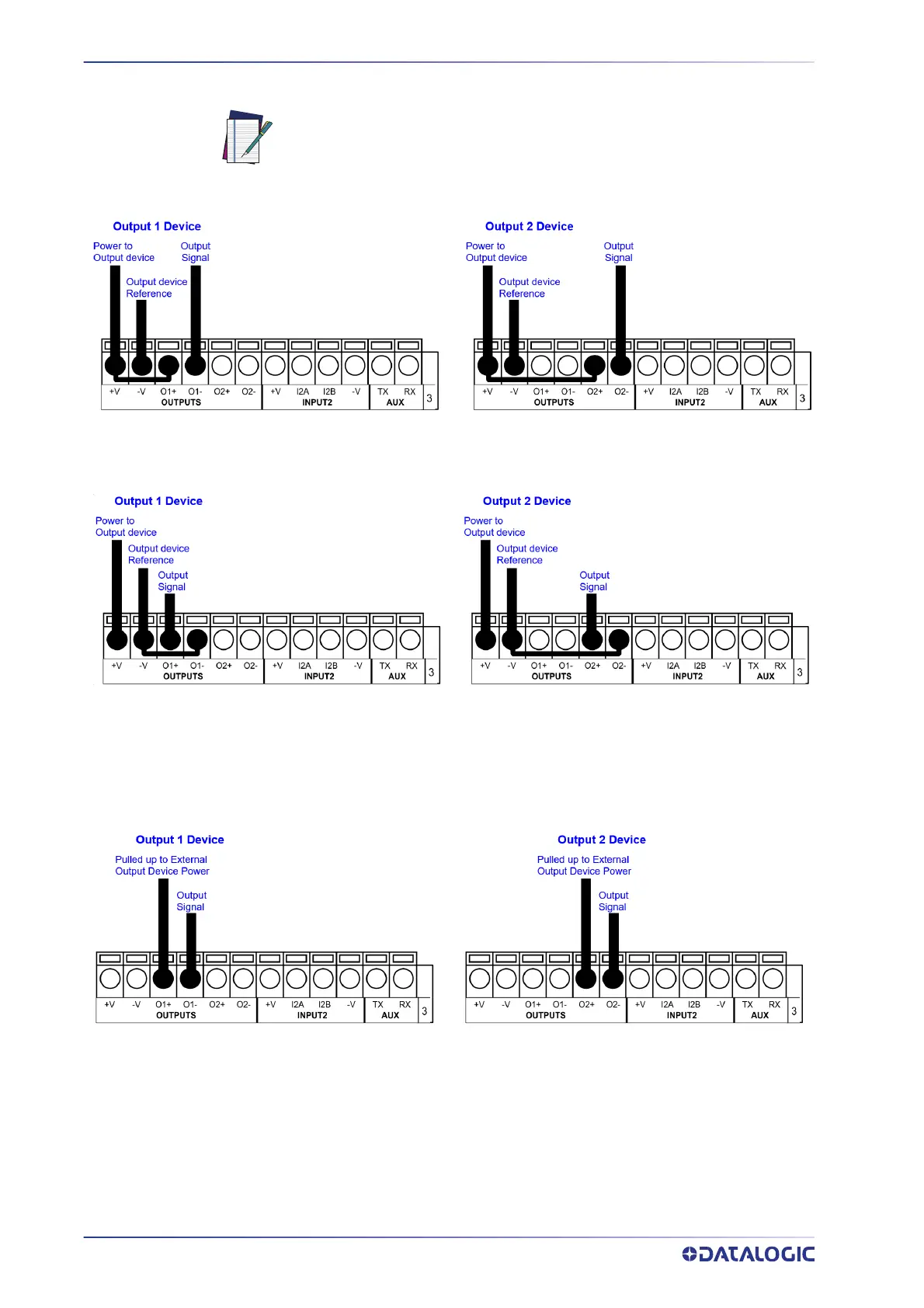

OUTPUT 1 AND 2 CONNECTIONS USING P2x-Series™ POWER
Figure 11 - PNP/Open Emitter Output Using P2x-Series™ Power
Figure 12 - NPN/Open Collector Output Using P2x-Series™ Power
OUTPUT 1 AND 2 CONNECTIONS USING EXTERNAL POWER
Figure 13 - PNP/Output Open Emitter Using External Power
NOTE
Power from the Vdc/GND spring clamps is available directly to the Output
Device on the +V/-V spring clamps, and does not pass through the Power
Switch (ON/OFF) inside the CBX. Disconnect all power supplies when
working inside the CBX.
