Datalogic P2x-Series User Manual

PRODUCT REFERENCE GUIDE 31
CHAPTER 4
ELECTRICAL CONNECTIONS
ON BOARD GIGABIT ETHERNET INTERFACE
The on-board Gigabit Ethernet Interface can be used for TCP/IP communication with a
remote or local host computer by connecting the camera to either a LAN or directly to a
host PC.
On-board Gigabit Ethernet Connector
A Standard M12 X-Coded female connector is provided for the on-board Gigabit Ether-
net connection. This interface is IEEE 802.3 10 BaseT and IEEE 802.3u 100 BaseTx com-
pliant.

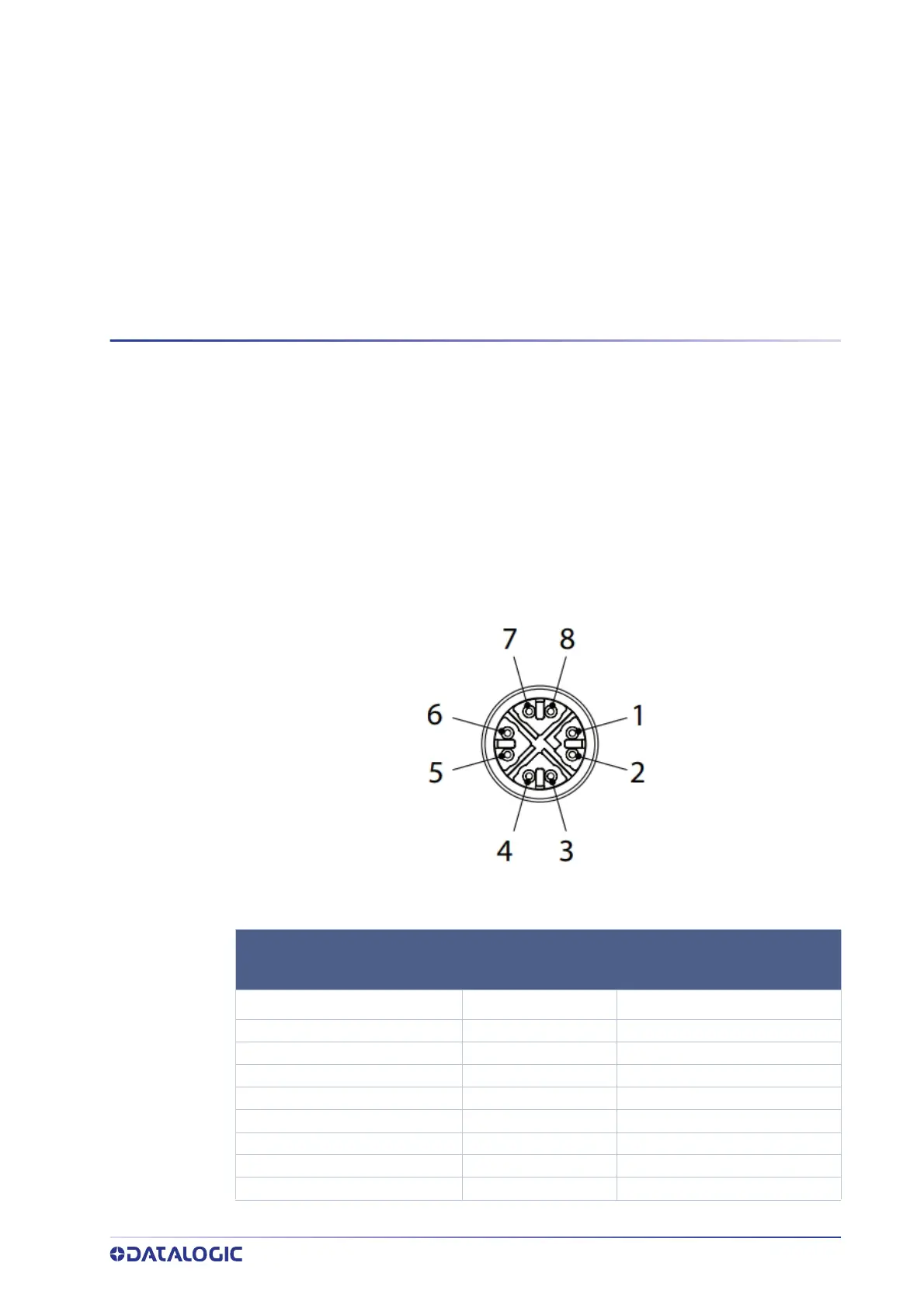

Figure 1 - M-12 X-Coded Female Ethernet Network Connector
ON-BOARD GIGABIT ETHERNET NETWORK CONNECTOR
PINOUT
Pin Name Function
1 DA+ Bidirectional data DA+
2 DA- Bidirectional data DA-
3 DB+ Bidirectional data DB+
4 DB- Bidirectional data DB-
5 DD+ Bidirectional data DD+
6 DD- Bidirectional data DD-
7 DC- Bidirectional data DC+
8 DC+ Bidirectional data DC-
