ELECTRICAL CONNECTIONS
44 P2X-SERIES™

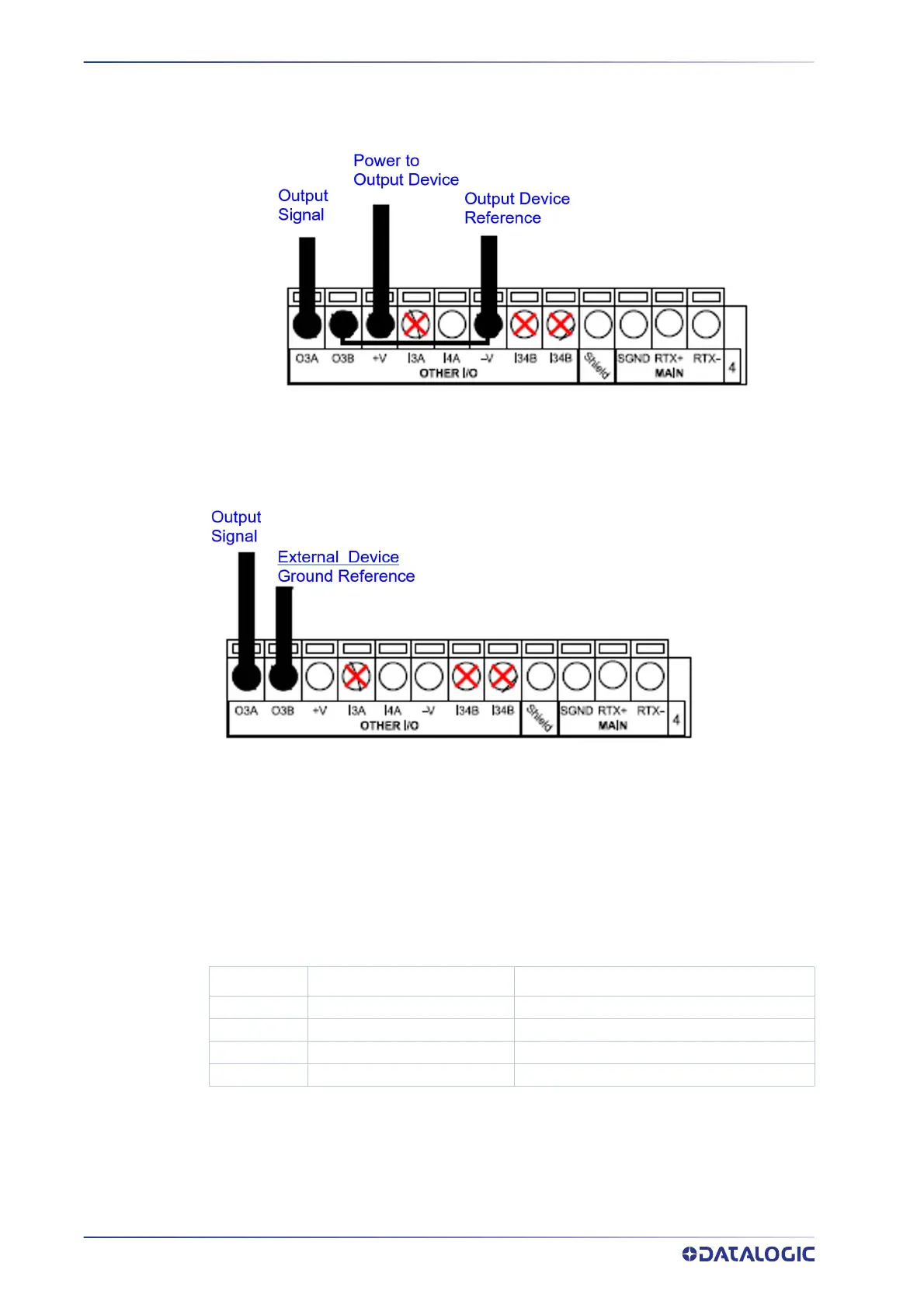

OUTPUT 3 CONNECTIONS USING P2x-Series™ POWER (CBX800
Only)
Figure 17 - Output 3 Using P2x-Series™ Power
OUTPUT 3 CONNECTIONS USING EXTERNAL POWER (CBX800 Only)
Figure 18 - Output 3 Using External Power
Outputs
Three general purpose non opto-isolated but short circuit protected outputs are avail-
able on the M12 17-pin connector.
The pinout is the following:
The electrical features of the three outputs are the following:
Reverse-Polarity and Short-Circuit Protected
V
OUT
(I
LOAD
= 0 mA) max = 30 Vdc
V
OUT
(I
LOAD
= 100 mA) max = 3 Vdc
I
LOAD
max = 100 mA
Pin Name Function
9 O1 Configurable digital output 1
8 02 Configurable digital output 2
16 O3 Configurable digital output 3
2 GND Output reference signal
