TERMINAL BLOCK CONNECTIONS
PRODUCT REFERENCE GUIDE 33
TERMINAL BLOCK CONNECTIONS
The connector pinouts and notes given in this chapter are for custom cabling applica-
tions.
Power, COM and I/O Connector
The CAB-DSxx-S cable has an M12 17-pin connector on the camera end and a 25-pin
male D-sub connector on the other end.
The details of the connector pins and terminal block are indicated in the following table.
CAUTION
Do not disconnect the cable while power is on.

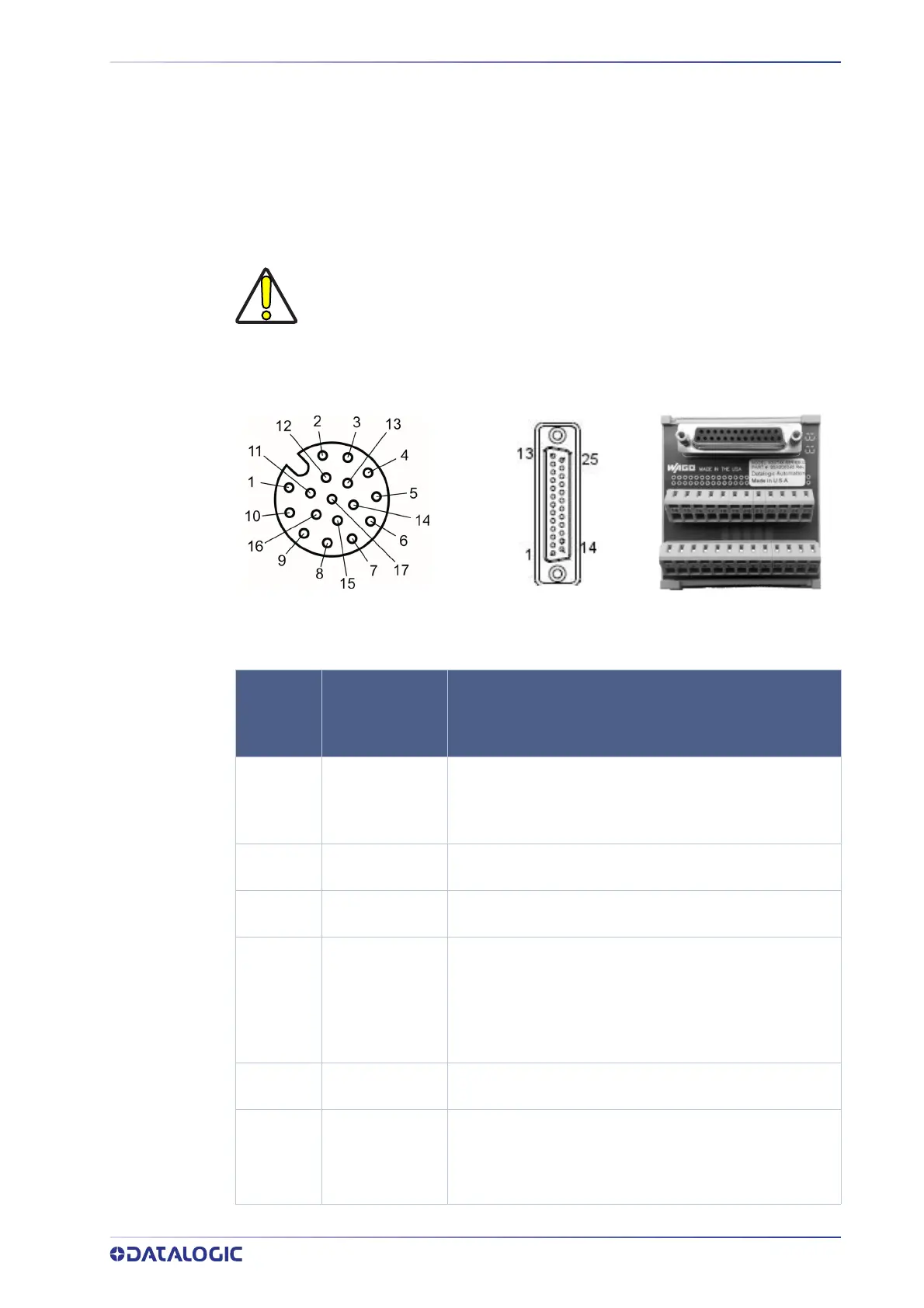

M12 17-pin COM (female end),
I/O and Power Connector
D-sub 25-pin (pin end) I/O Terminal Block (95A906346)
17-PIN
M12
D-SUB/
TERMINAL
BLOCK PIN
NAME: FUNCTION
1 Red 9 & 13 Vdc: Power Supply Input voltage +
2 Blk 7 & 25 GND: Power Supply Input voltage -
Connector
Case
1 (Shield) CHASSIS: Connector case - electrical connection to chassis
6 Org
5 Grn-Blk
18
19
I1A: External Trigger + or - (Polarity Insensitive)
I1B: External Trigger + or - (Polarity Insensitive)
13 Gry
3 Grn-Red
6
10
I2A: Input 2 + or - (Polarity Insensitive)
I2B: Input 2 + or - (Polarity Insensitive)
9 Pur 8
O1: Output 1 (Note 1; Opto-isolated only when connected
to CBX500 or CBX800 connection box)
8 Wht-Red 11
O2: Output 2 (Note 1; Opto-isolated only when connected
to CBX500 or CBX800 connection box)
16 Blk-Wht 14 & 16
O3: Output 3 (Notes 1, 2; Opto-isolated only when con-
nected to CBX800 connection box)
14 Yel-Blu
4 Yel-Wht
20
21
Reserved
Reserved
17 Yel
11 Bm
12 Pnk
10 Gm
2
3
4
5
TX: RS232 Transmit
RS: RS232 Receive
Reserved
Reserved
