Datalogic P2x-Series User Manual

INPUTS
PRODUCT REFERENCE GUIDE 39
INPUT 2 CONNECTIONS USING P2x-Series™ POWER

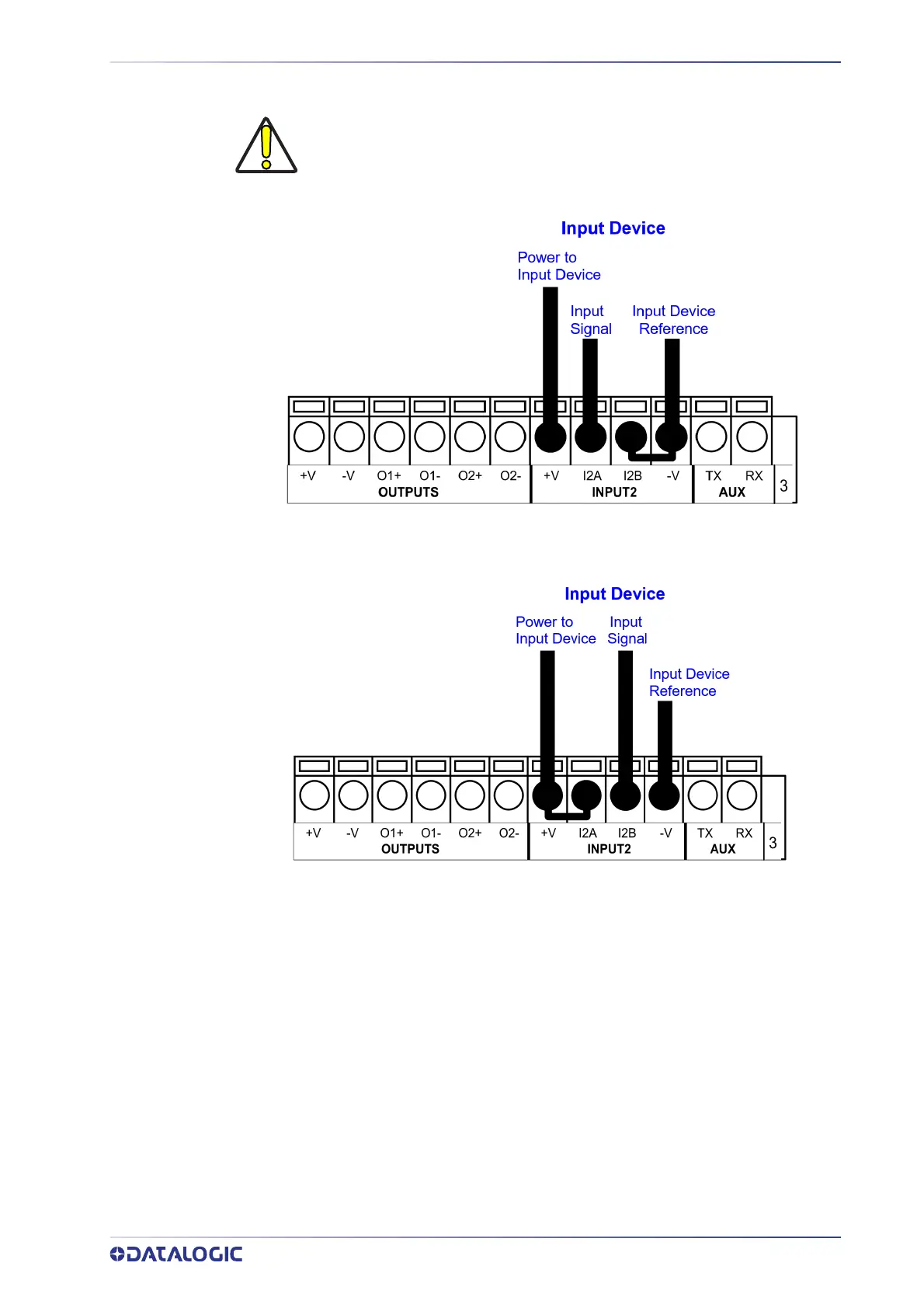

Figure 7 - PNP Input 2 Using P2x-Series™ Power
Figure 8 - NPN Input 2 Using P2x-Series™ Power
CAUTION
Power from the Vdc/GND spring clamps is available directly to the Input
Device on the +V/-V spring clamps, and does not pass through the Power
Switch (ON/OFF) inside the CBX. Disconnect all power supplies when
working inside the CBX.
