INPUTS
PRODUCT REFERENCE GUIDE 37
EXTERNAL TRIGGER INPUT CONNECTIONS USING P2x-Series™
POWER

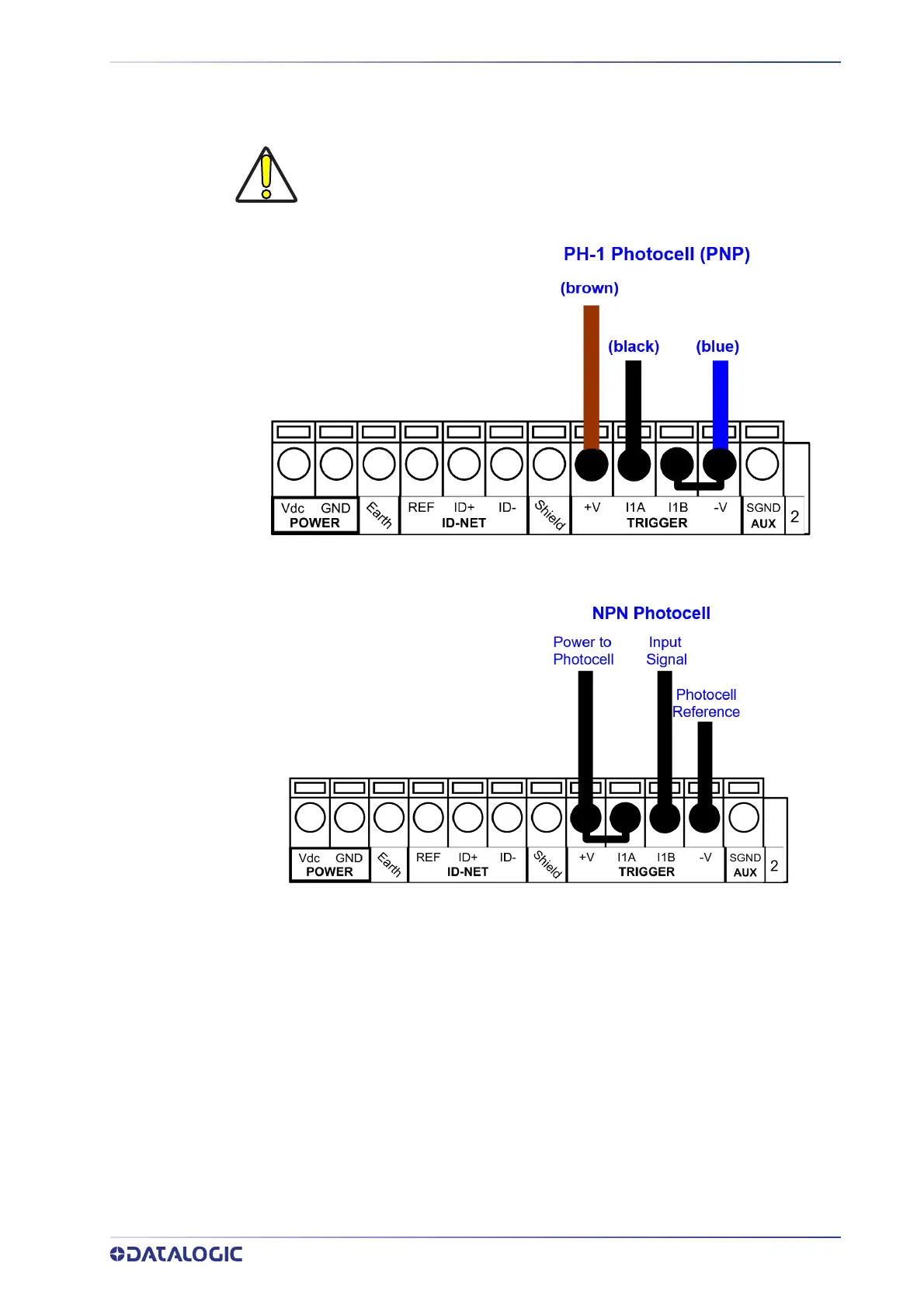

Figure 3 - PH-1 External Trigger Using P2x-Series™ Power
Figure 4 - NPN External Trigger Using P2x-Series™ Power
CAUTION
Power from the Vdc/GND spring clamps is available directly to the Input
Device on the +V/-V spring clamps, and does not pass through the Power
Switch (ON/OFF) inside the CBX. Disconnect all power supplies when
working inside the CBX.
