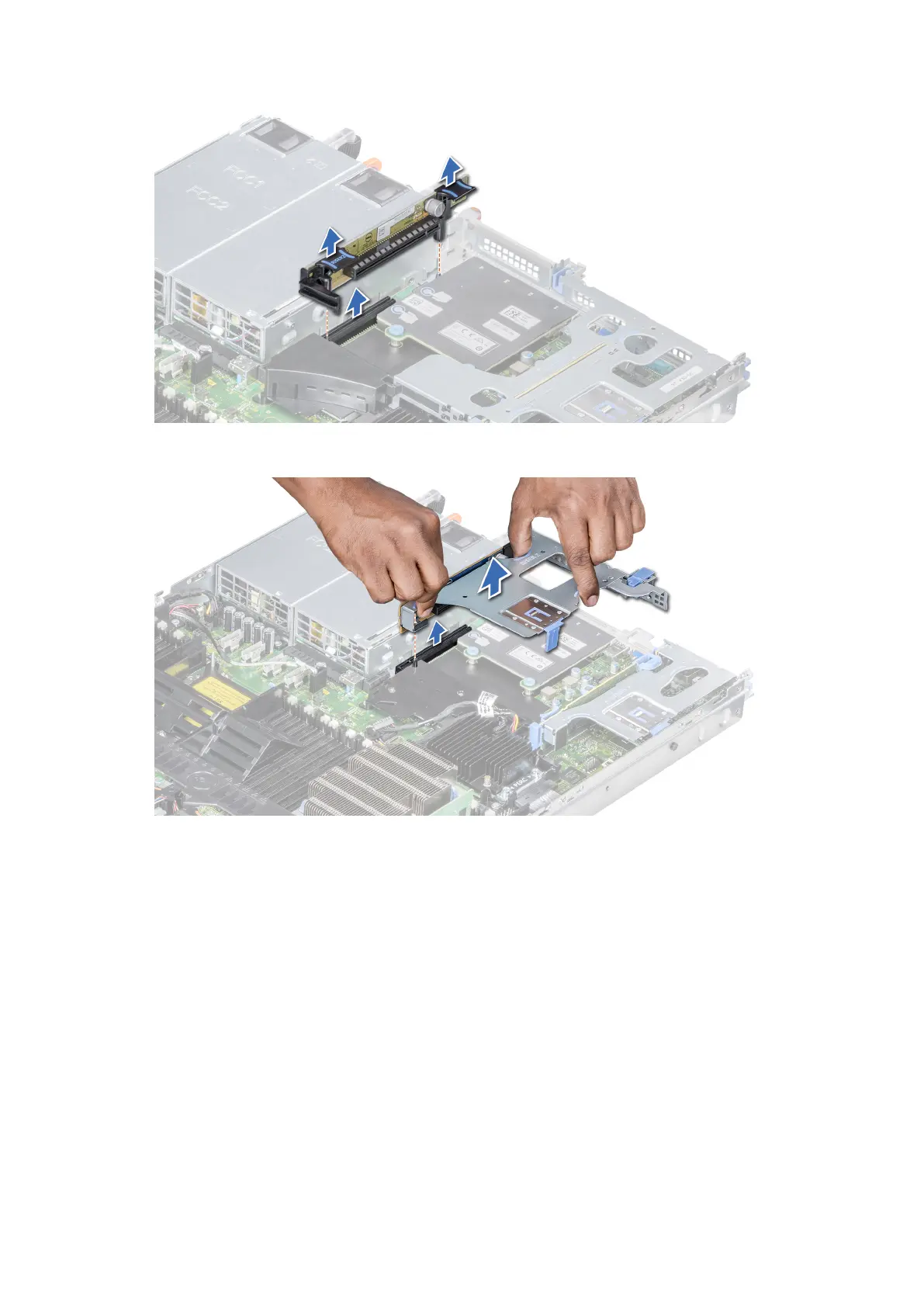

Figure 53. Removing the expansion riser 2A
Figure 54. Removing the expansion riser 2B
Next steps
Install the expansion card riser.
Installing an expansion card riser
Prerequisites
1. Follow the safety guidelines listed in Safety instructions on page 71.
2. Before installing the expansion card riser 2A, install an expansion card into the riser, if applicable.
Steps

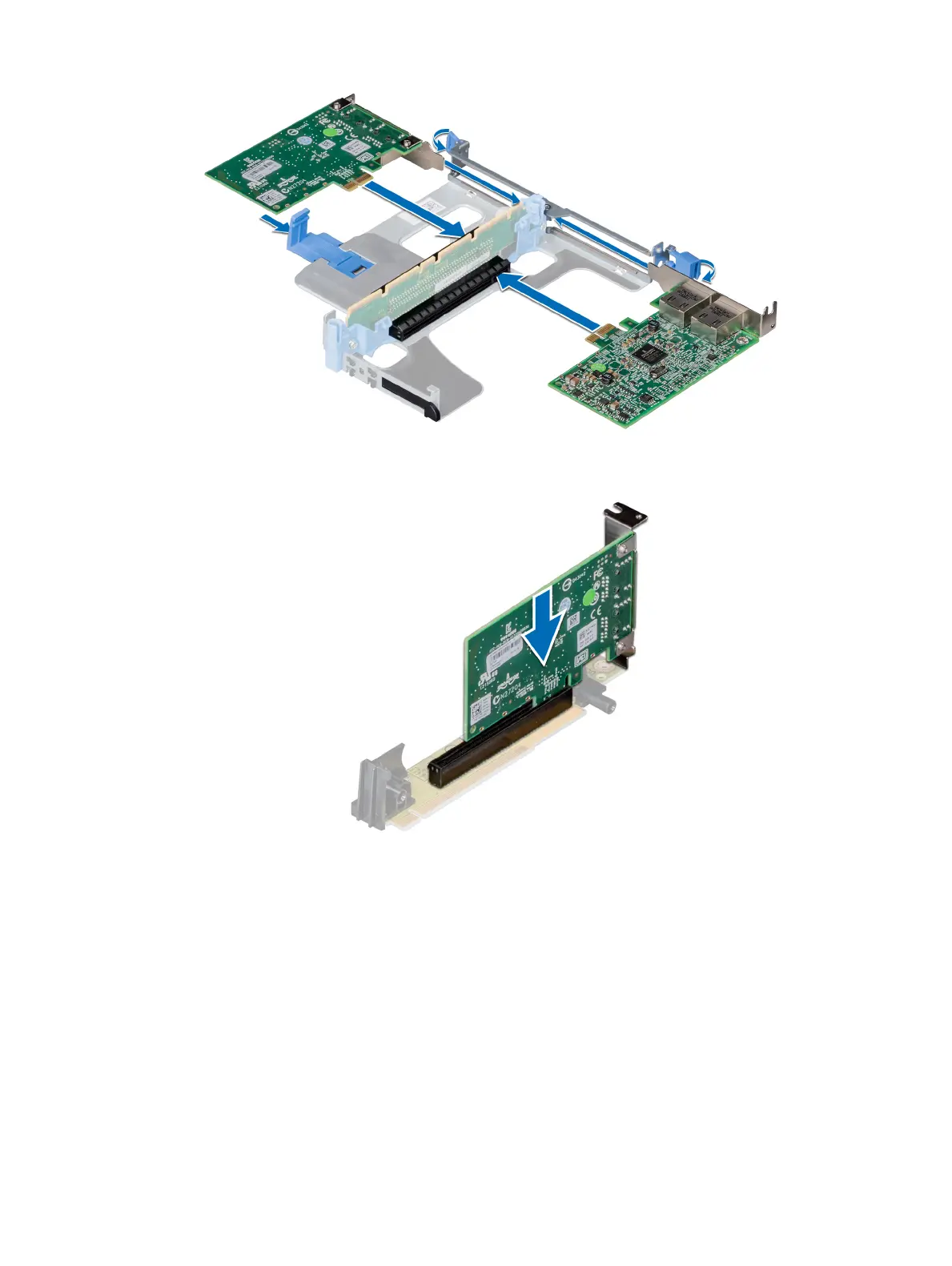

1. If removed, install the expansion cards into the expansion card riser.
2. Holding the touch points, align the expansion card riser with the connector and the riser guide pin on the system board.
Installing and removing system components
115
