Cable routing

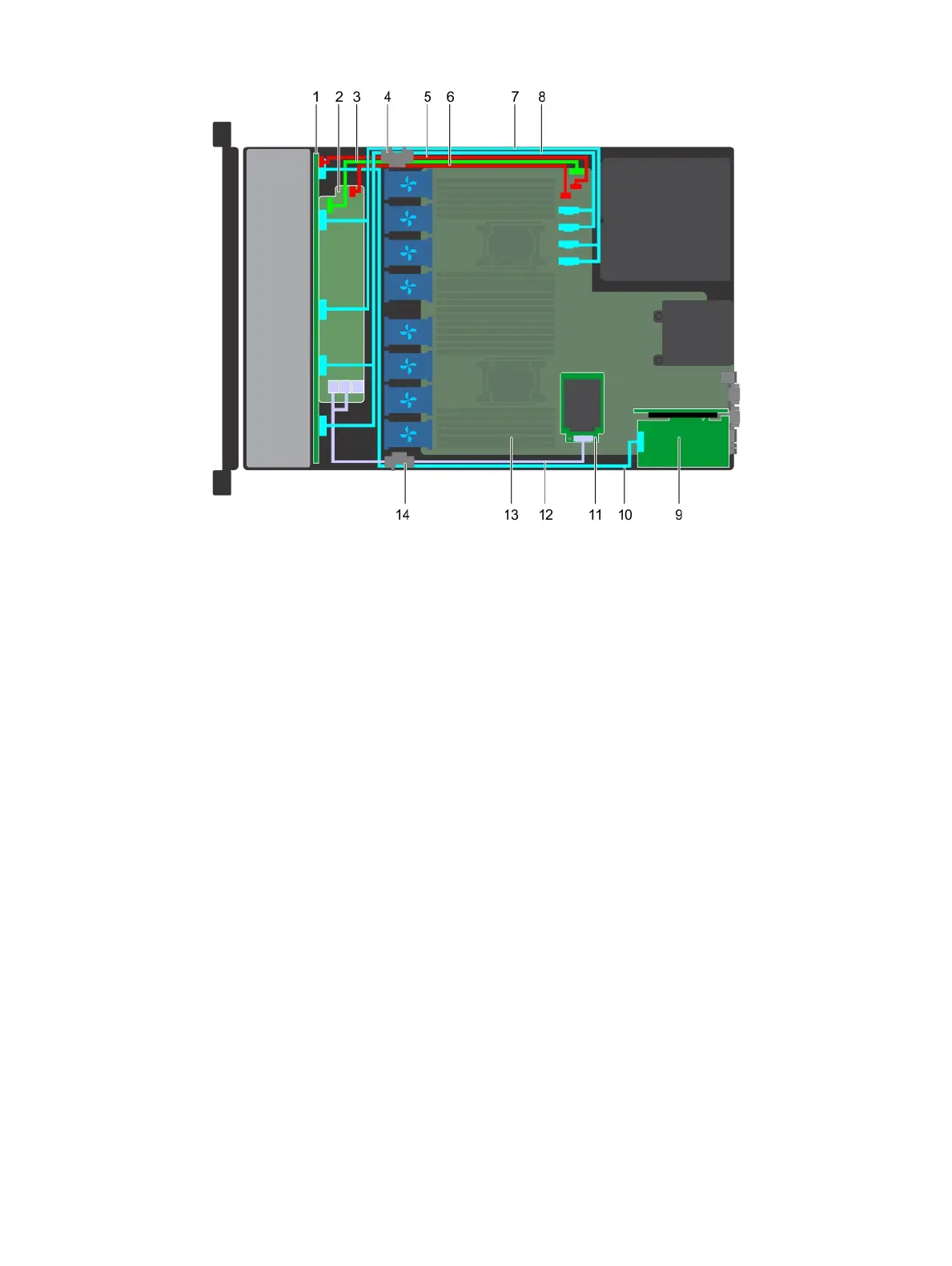

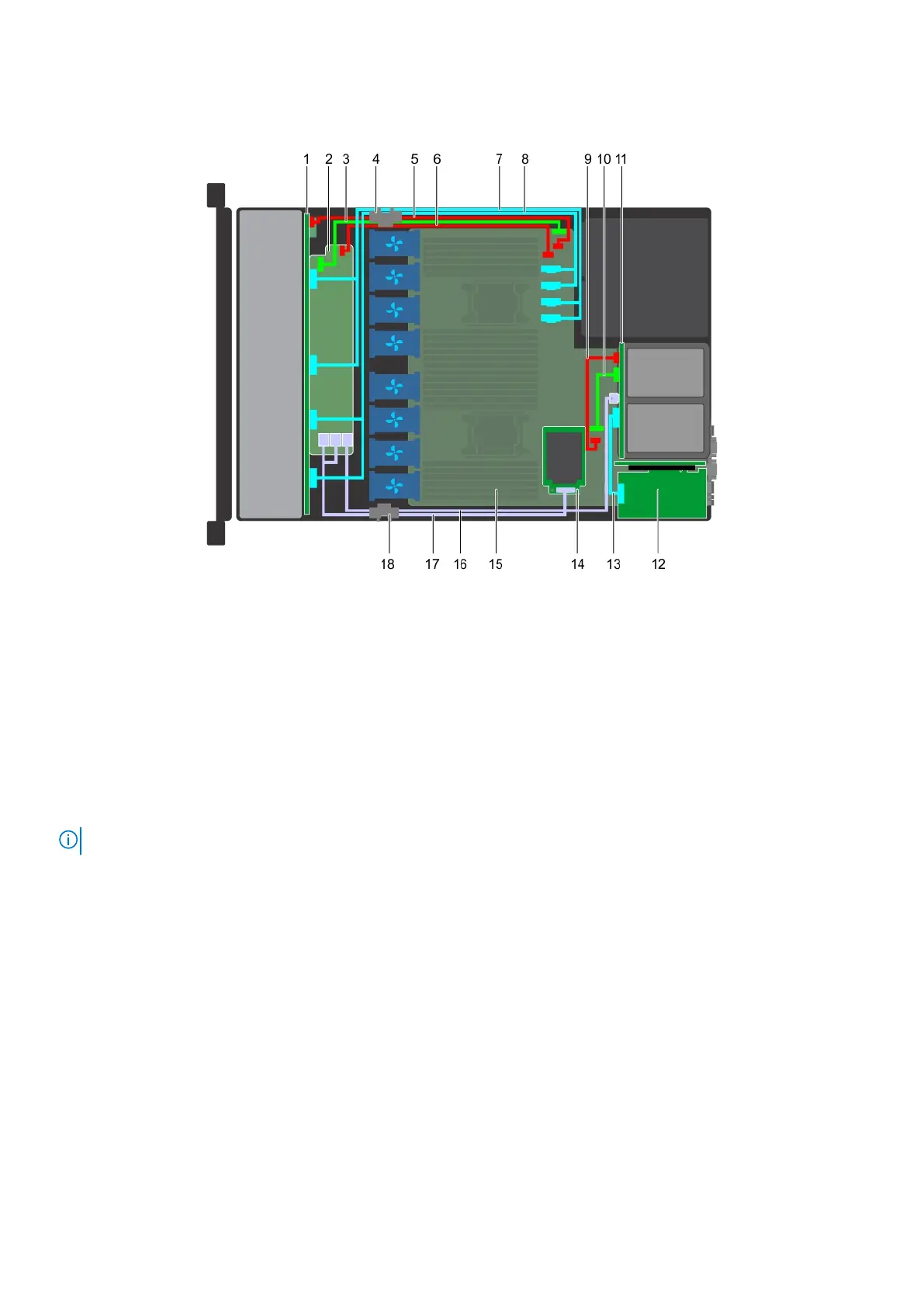

Figure 88. Cable routing - 10 x 2.5 drive backplane and 2 x 2.5 rear drive backplane with mini PERC
1.
backplane 2. backplane expander
3. backplane signal cable (BP: J_BP_SIG to MB: J_BP_SIG1) 4. cable routing clip
5. backplane power cable(BP: J_BP_PWR_A1 to MB: J_BP1) 6. backplane expander power cable
7. NVMe cable (BP PCIe B1 and BP PCIe A1) 8. NVMe cable (BP PCIe B0 and BP PCIe A0)
9. rear backplane power cable(Rear BP: J_BP_BPO to MB:
J_BP_PWR_A1)
10. rear backplane signal cable (Rear BP: J_BP_SIG0 to MB:
J_BP_SIG1)
11. rear backplane 12. PCIe expansion card
13. PCIe cable 14. mini PERC card
15. system board 16. SAS cable (BP: MiniSAS HD A2 to MB: J_SAS_1)
17. SAS cable (BP: BP SAS A0, BP SAS B0 to MP: J_STORAGE1) 18. cable routing clip
NOTE: The internal cable connectors are not hot-pluggable.
138 Installing and removing system components
