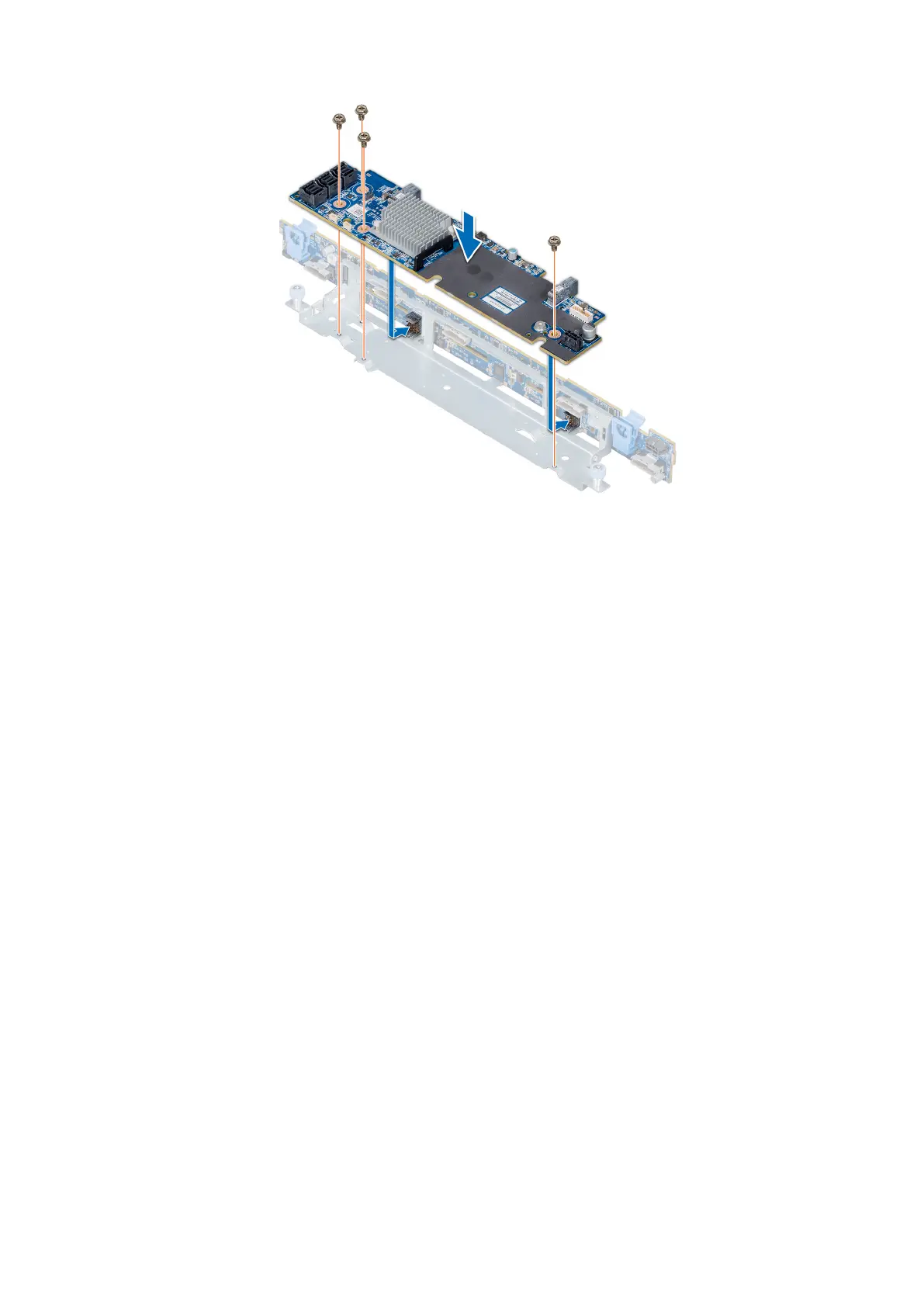

Figure 95. Installing the SAS expander card
Next steps
1. Connect the SAS cables to the SAS expander card.
2. Install the backplane cover.
3. Install the cooling fan assembly.
4. Install the cooling shroud.
5. Follow the procedure listed in After working inside your system on page 72.
Rear drive cage
Removing the rear drive cage
Prerequisites
1. Follow the safety guidelines listed in Safety instructions on page 71.
2. Follow the procedure listed in Before working inside your system on page 72.
3. Remove all the drives.
4. Disconnect all the cables from the rear drive backplane.
Steps
1. Using Phillips #2 screwdriver, loosen the screws that secure the drive cage to the system.

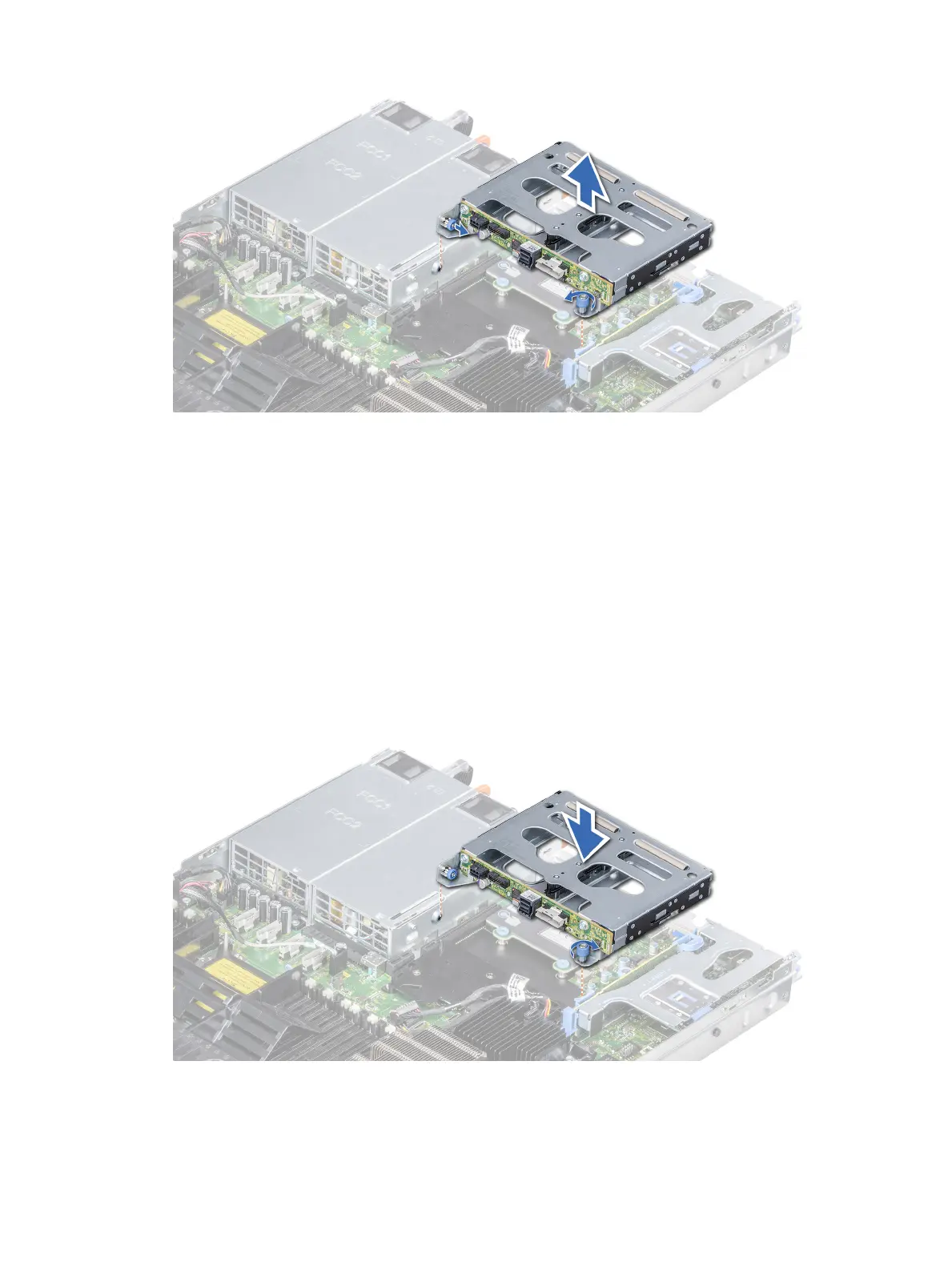

2. Pull and hold the screws to lift the drive cage away from the system.
