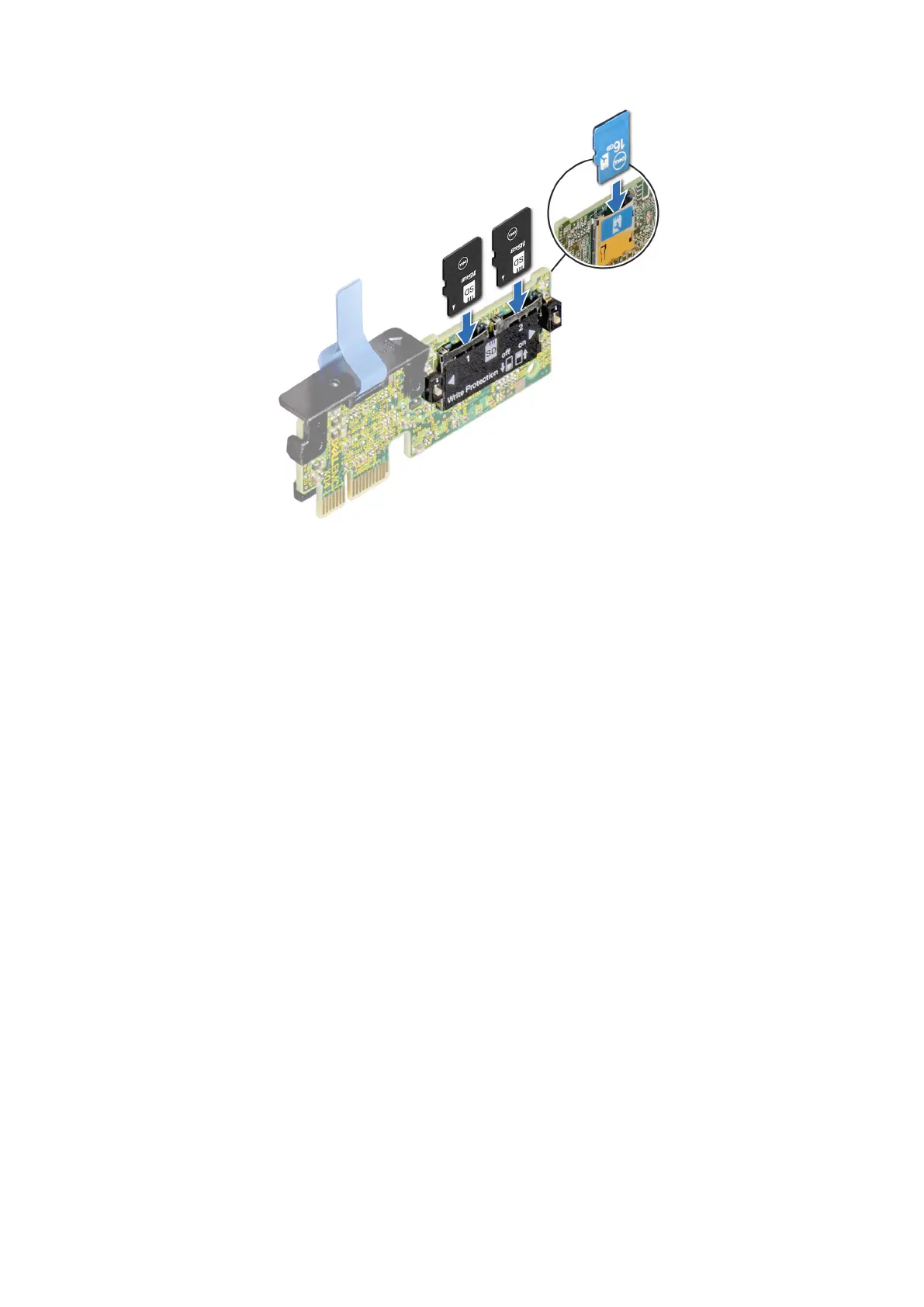

Figure 73. Installing the MicroSD card
Next steps
Follow the procedure listed in After working inside your system on page 72.
Network daughter card
Removing the network daughter card
Prerequisites
1. Follow the safety guidelines listed in Safety instructions on page 71.
2. Follow the procedure listed in After working inside your system on page 72.
3. Remove the expansion card riser 2 or the rear drive cage, depending on the configuration of your system.
Steps
1. Using a Phillips #2 screwdriver, loosen the captive screws that secure the network daughter card (NDC) to the system board.
2. Hold the NDC by the edges on either side of the touch points, and lift to remove it from the connector on the system board.
3. Slide the NDC towards the front of the system until the Ethernet connectors are clear of the slot in the back panel.
128
Installing and removing system components
