Optional front bezel
Removing the front bezel
The procedure to remove the front bezel with and without the LCD panel is the same.
Prerequisites
Follow the safety guidelines listed in Safety instructions on page 71.
Steps
1. Unlock the bezel by using the bezel key.
2. Press the release button, and pull the left end of the bezel.
3. Unhook the right end, and remove the bezel.

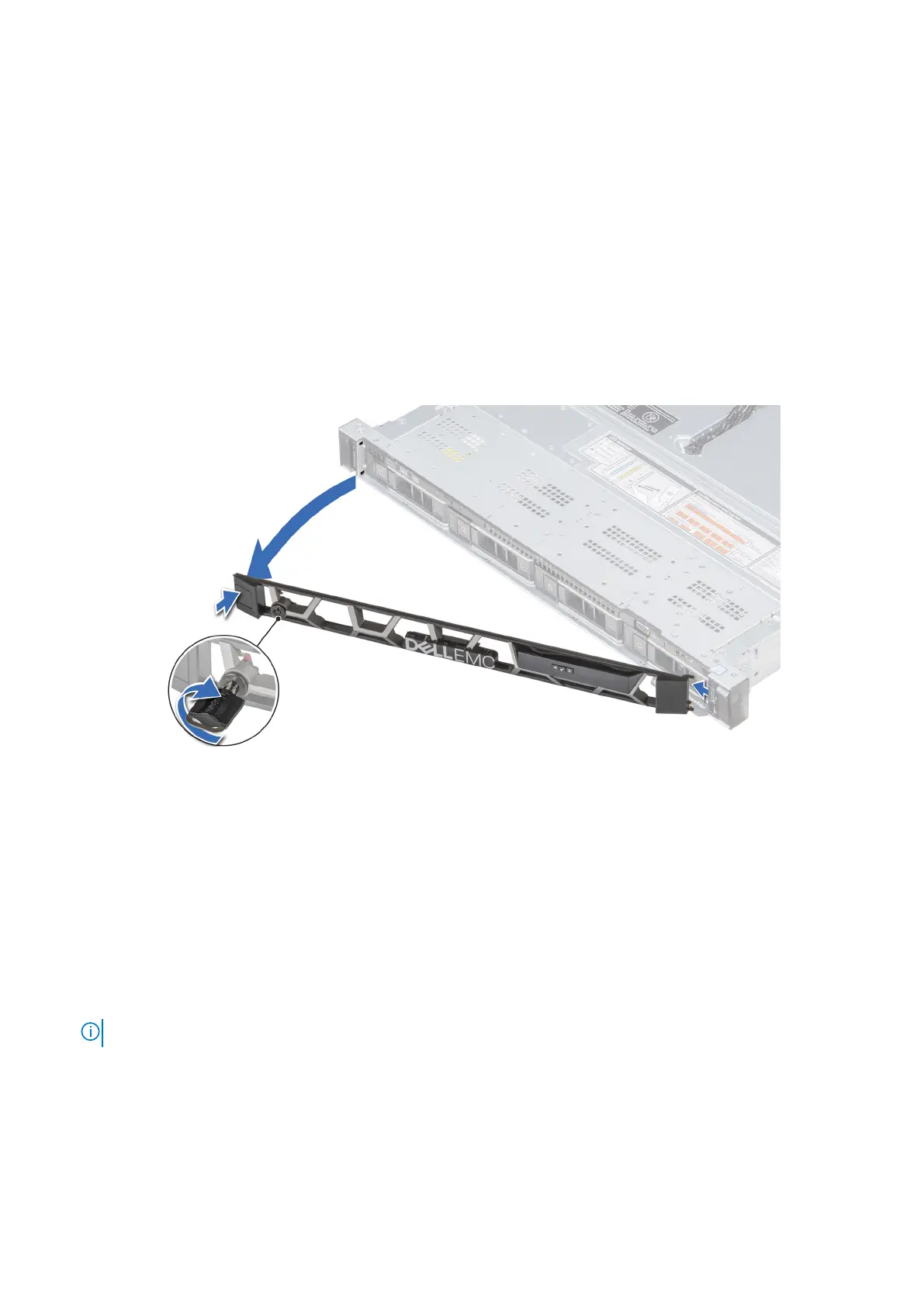

Figure 20. Removing the optional front bezel with the LCD panel
Installing the front bezel
The procedure to install the front bezel with and without the LCD panel is the same.
Prerequisites
Follow the safety guidelines listed in Safety instructions on page 71.
Steps
1. Locate and remove the bezel key.
NOTE: The bezel key is part of the LCD bezel package.
2. Align and insert the right end of the bezel onto the system.
3. Press the bezel until the button clicks in place and fit the left end of the bezel onto the system.
4. Lock the bezel by using the key.
Installing and removing system components
73
