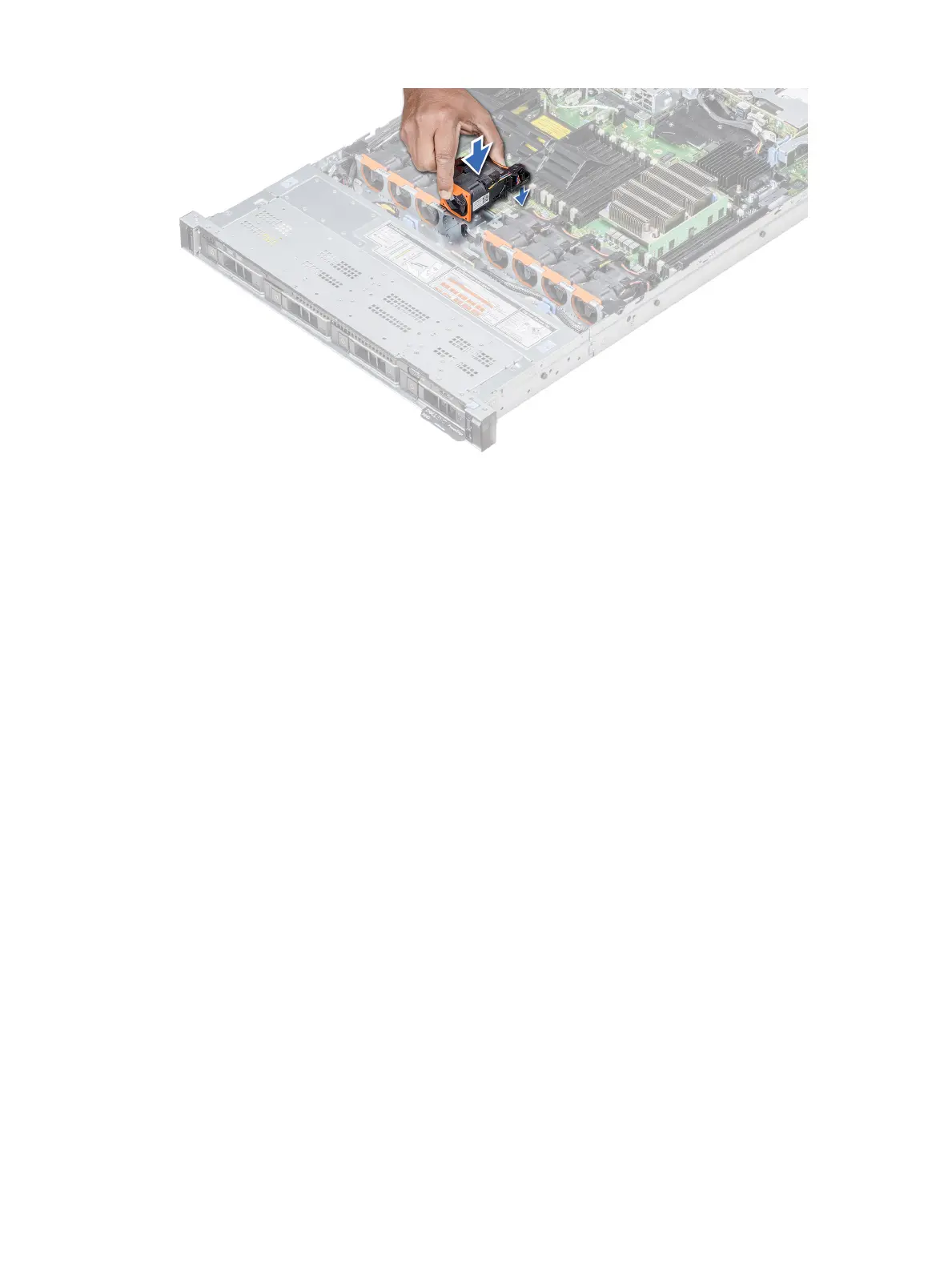

Next steps
Follow the procedure listed in After working inside your system on page 72.
Inside the system
CAUTION: Many repairs may only be done by a certified service technician. You should only perform troubleshooting and
simple repairs as authorized in your product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow
the safety instructions that are shipped with your product.
NOTE: Components that are hot swappable are marked orange and touch points on the components are marked blue.

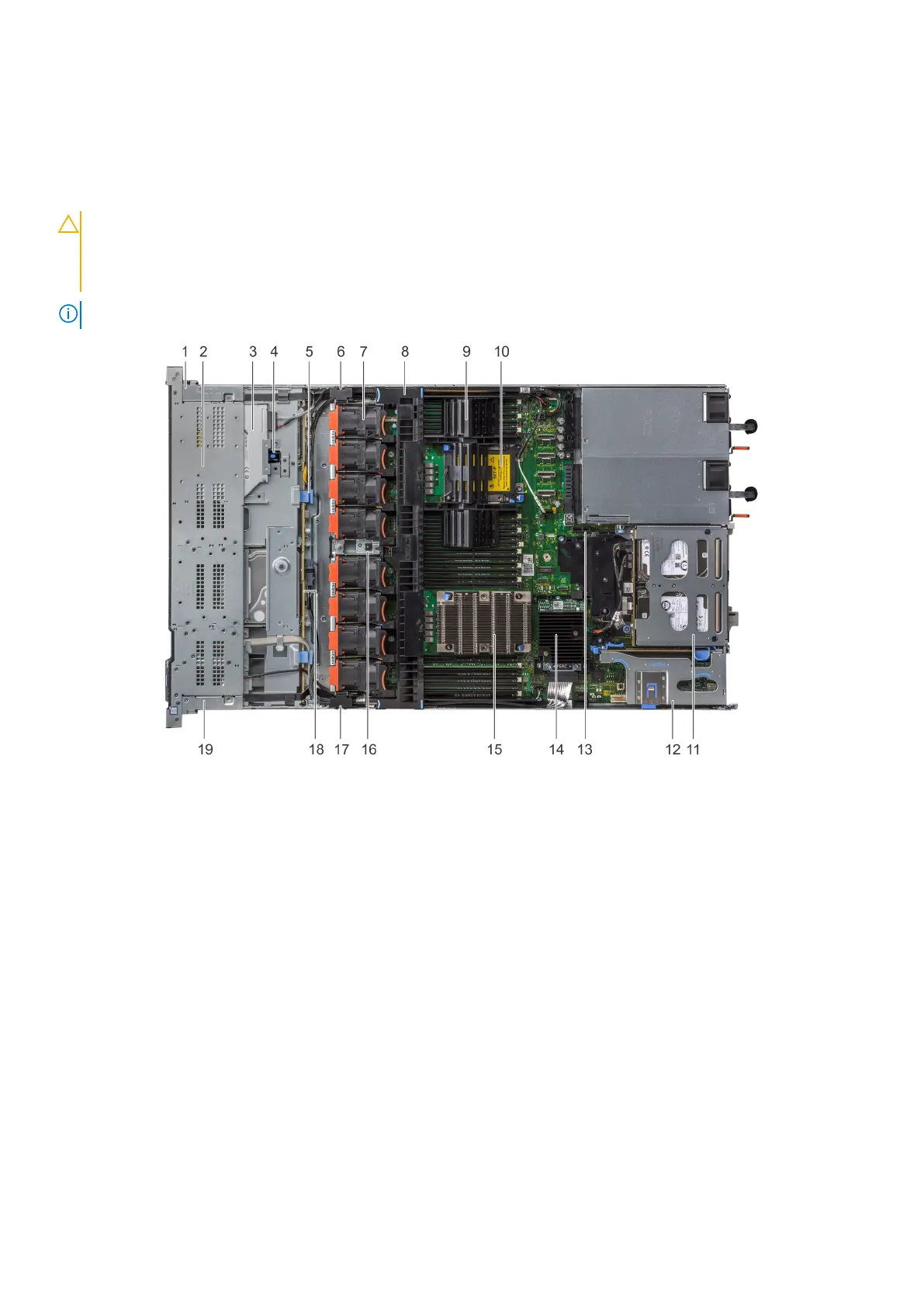

Figure 32. Inside the system - 1 PCIe expansion riser
1.
right control panel cable cover 2. hard drive cage
3. optical drive 4. optical drive release latch
5. backplane release latch 6. cabling latch
7. cooling fan (8) 8. air shroud
9. processor and DIMM blank 10. processor 2 slot
11. rear hard drive module 12. expansion riser 1
13. IDSDM/vFlash module slot 14. integrated storage controller card
15. processor 1 16. intrusion switch
17. cabling latch 18. hard drive backplane
19. left control panel cable cover
Installing and removing system components 83
