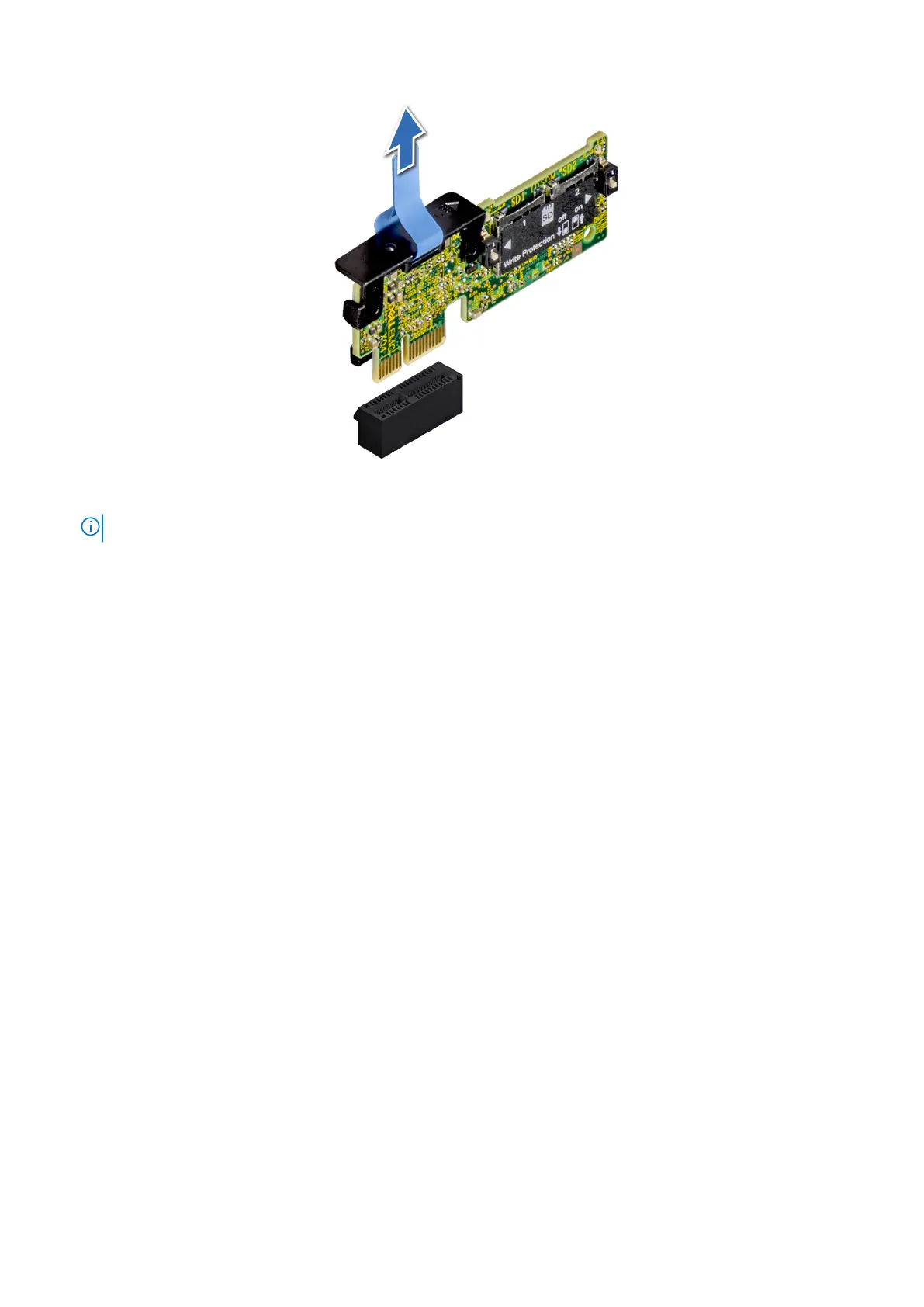

Figure 70. Removing the optional IDSDM module
NOTE: There are two dip switches on the IDSDM module for write-protection.
Next steps
Install the optional IDSDM/vFlash card.
Installing optional IDSDM or vFlash card
Prerequisites
Follow the safety guidelines listed in Safety instructions on page 71.
Steps

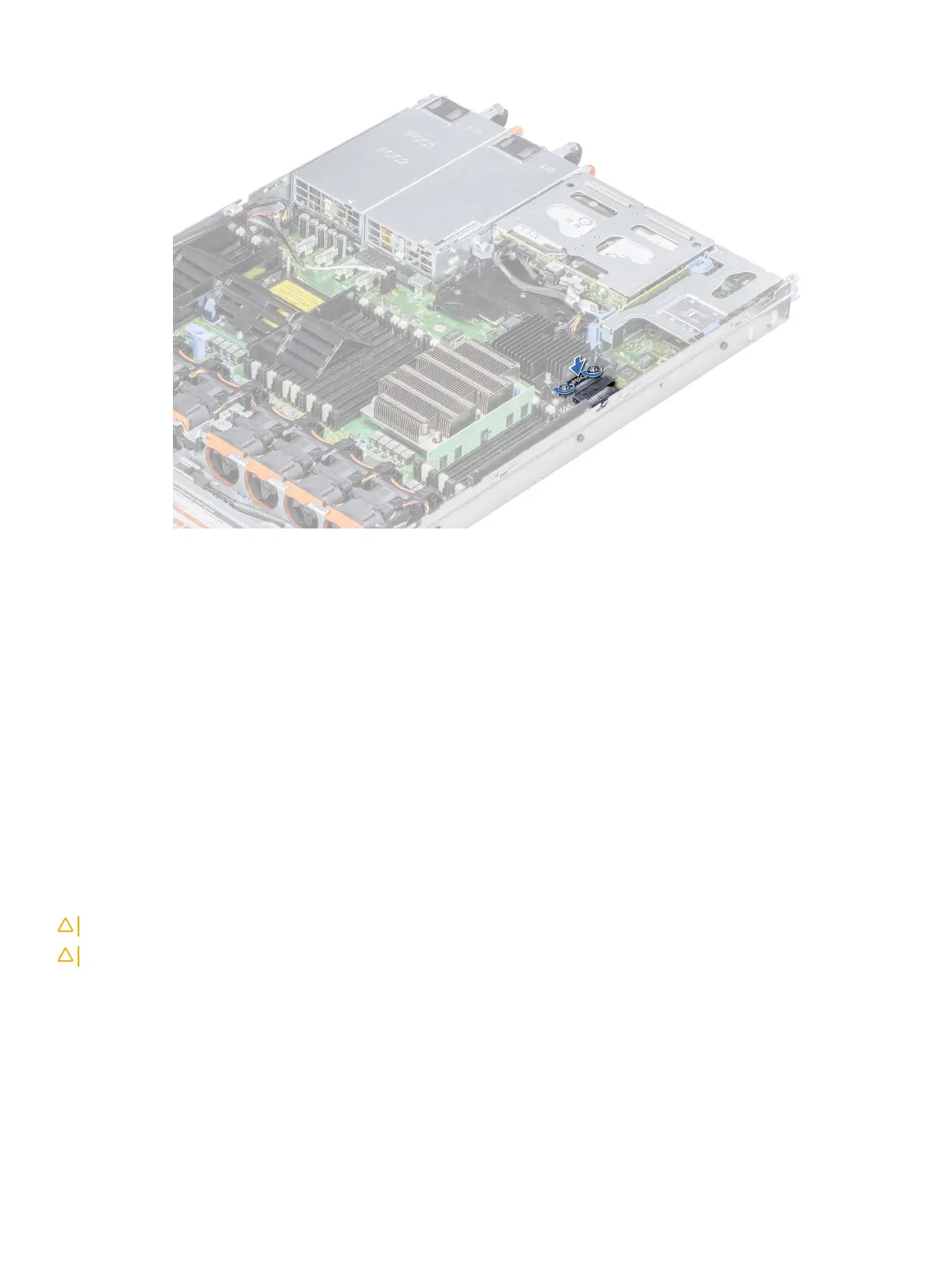

1. Locate the IDSDM/vFlash connector on the system board.
To locate IDSDM/vFlash connector, see the Jumpers and connectors on page 169 section.
2. Align the IDSDM/vFlash card with the connector on the system board.
3. Push the IDSDM/vFlash card until it is firmly seated on the system board.
Installing and removing system components
125
