Installing the battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

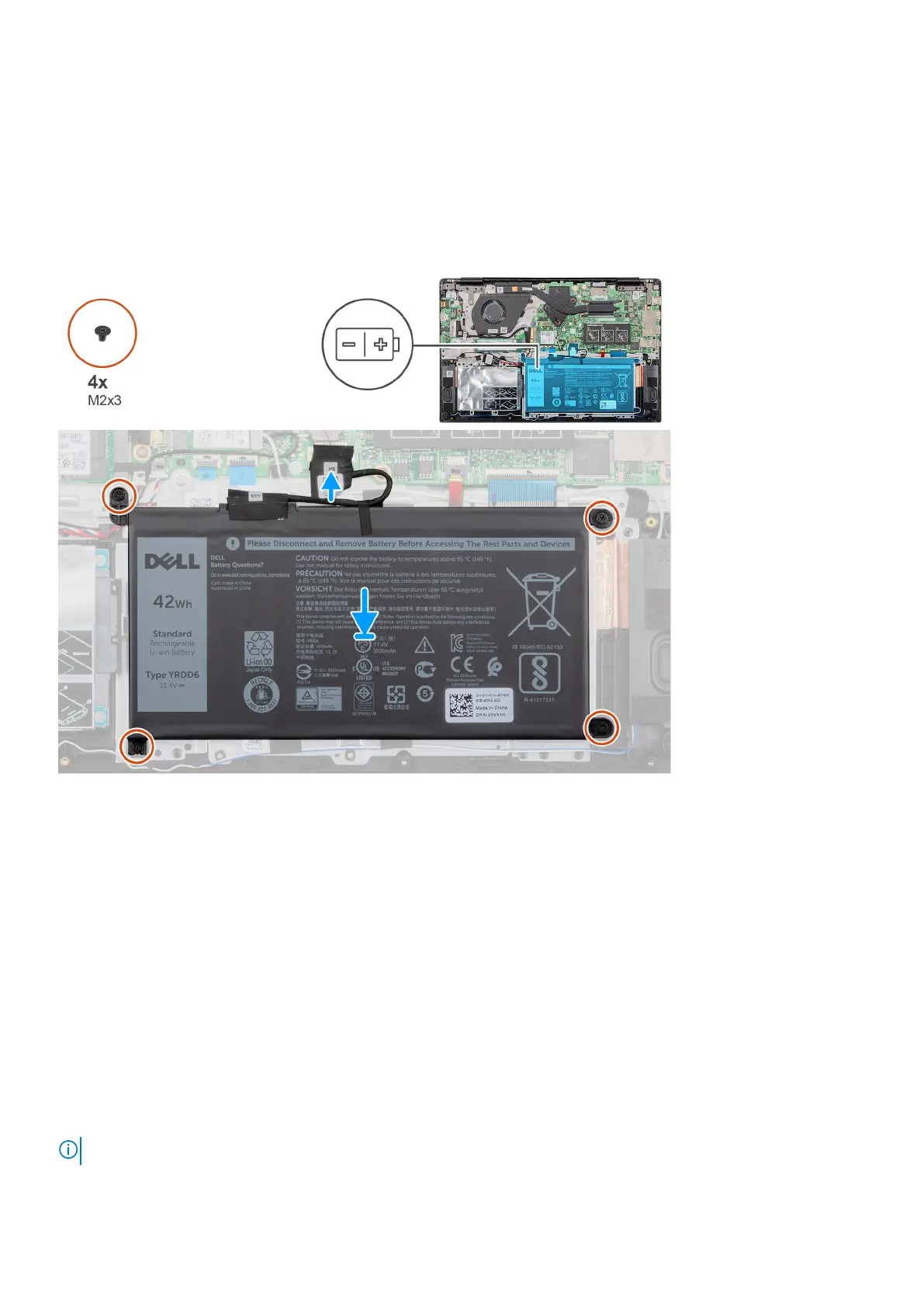

The figure indicates the location of the battery and provides a visual representation of the installation procedure.
Steps
1. Place the battery on the palmrest and align the screw holes on the battery with the screw holes on the palmrest.
2. Replace the four (M2x3) screws to secure the battery to the palmrest.
3. Connect the battery cable to the connector on the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Memory modules
Removing the secondary memory module
Prerequisites
NOTE: Primary memory module is integrated into the system board.
1. Follow the procedure in Before working inside your computer.
Removing and installing components
15
