Steps
1. Remove the single (M2x3) screw that secures the solid-state module to the palmrest assembly.
2. Slide the solid-state module out from the M.2 slot.
Removing the M.2 2242 solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task

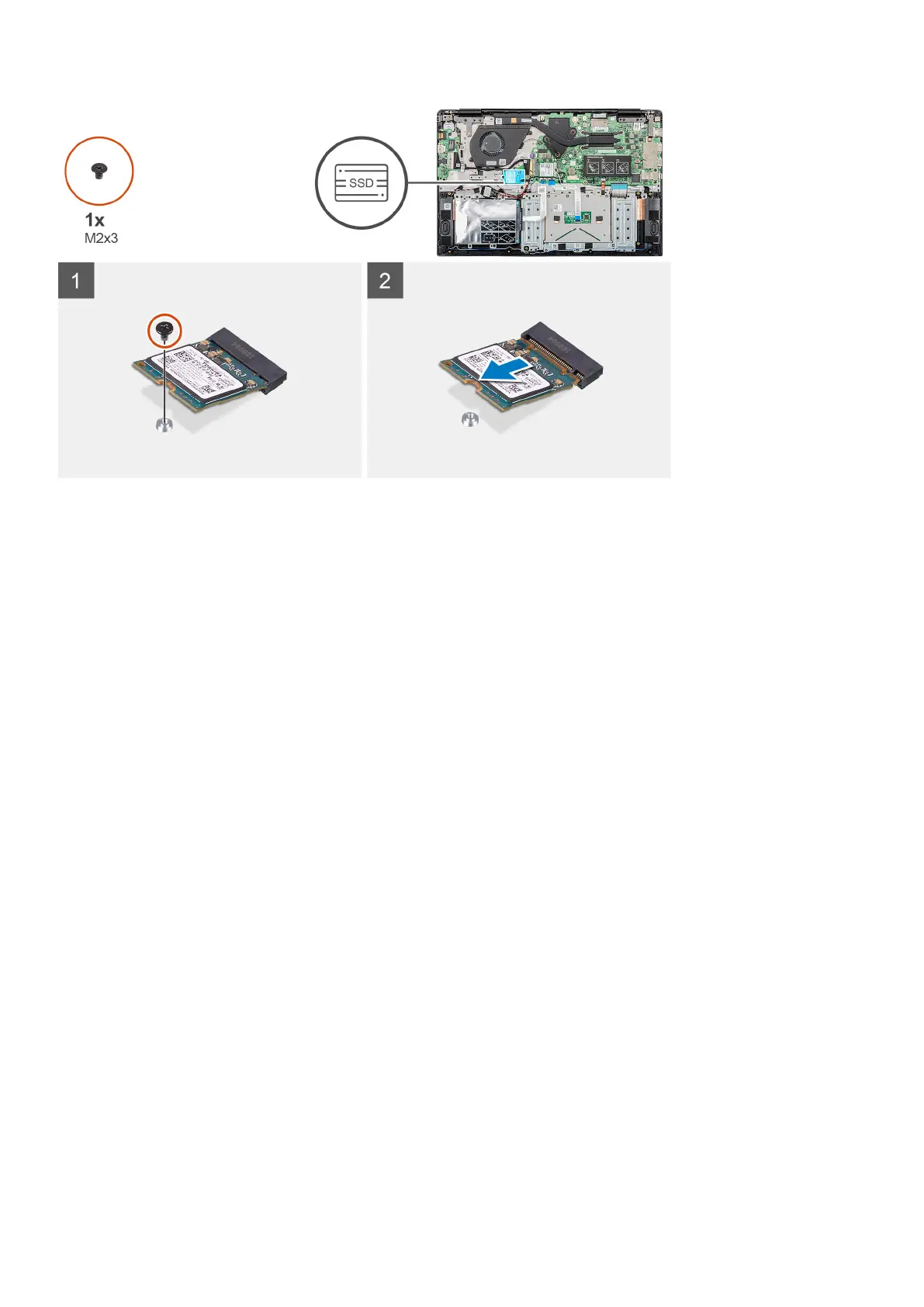

The figure indicates the location of the M.2 2242 solid-state drive and provides a visual representation of the removal
procedure.
20
Removing and installing components
