7. Install the base cover.
8. Follow the procedure in After working inside your computer.
Power button
Removing the power button
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the system fan.
5. Remove the input and output board.
About this task

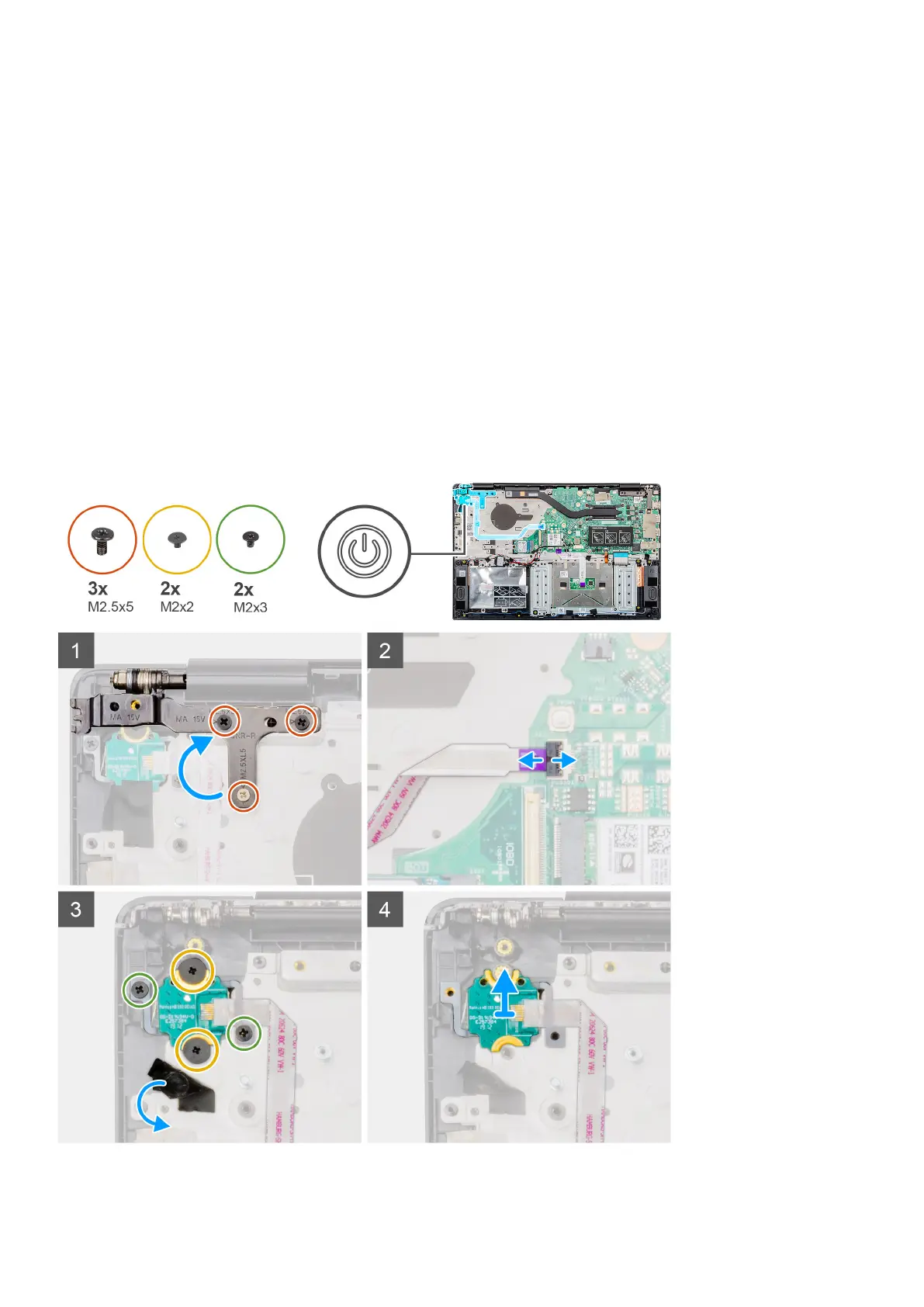

The figure indicates the location of the power button and provides a visual representation of the removal procedure.
Removing and installing components 51
