Input and output board
Removing the input and output board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task

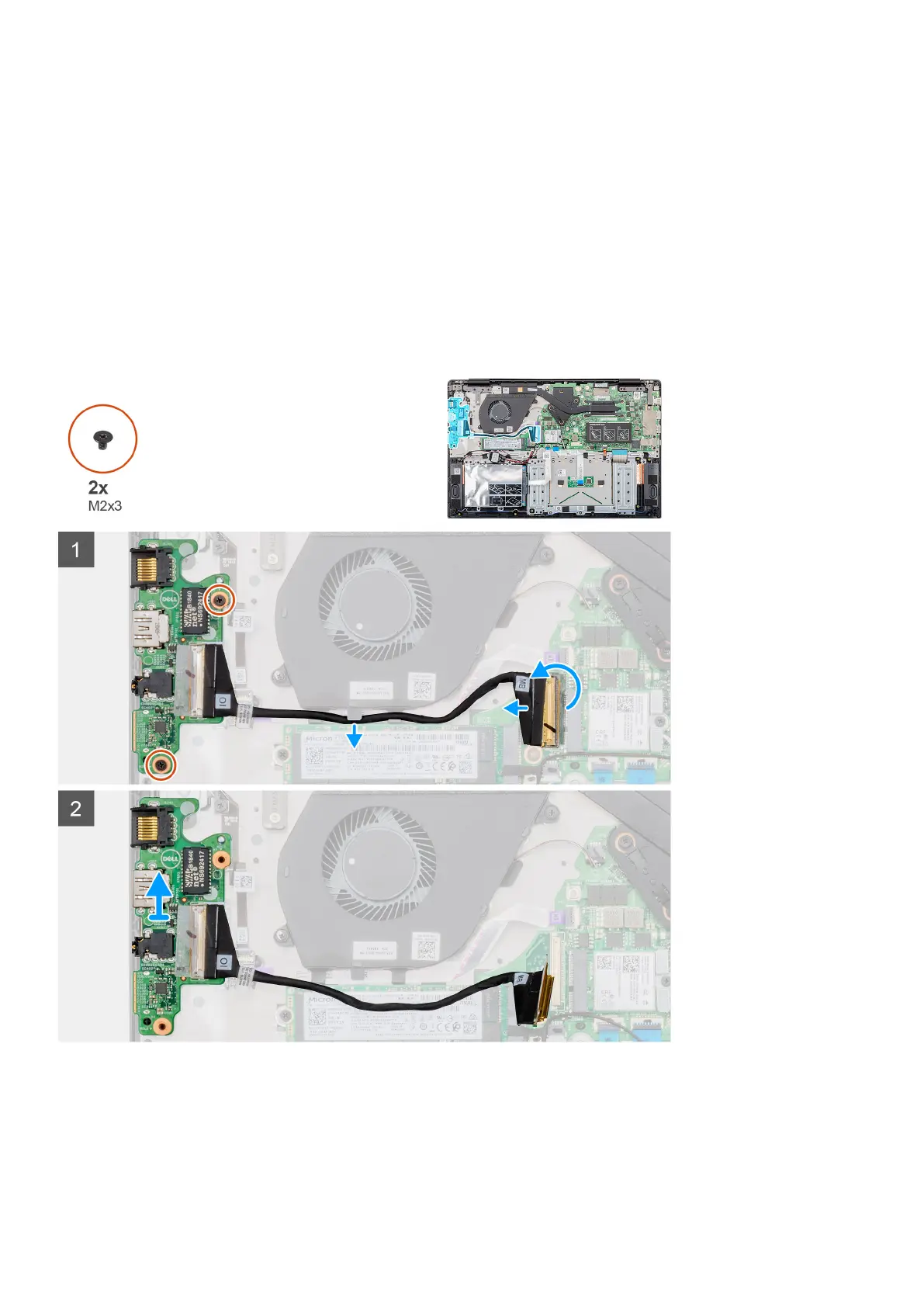

The figure indicates the location of the input and output board and provides a visual representation of the removal procedure.
Steps
1. Locate the input and output board on your computer.
2. Lift the latch and disconnect the input and output board cable from the connector on the system board.
3. Unroute the input and output board cables from the retention clips on the computer.
4. Remove the two (M2x3) screws that secure the input and output board to the palmrest assembly.
Removing and installing components
33
