Steps

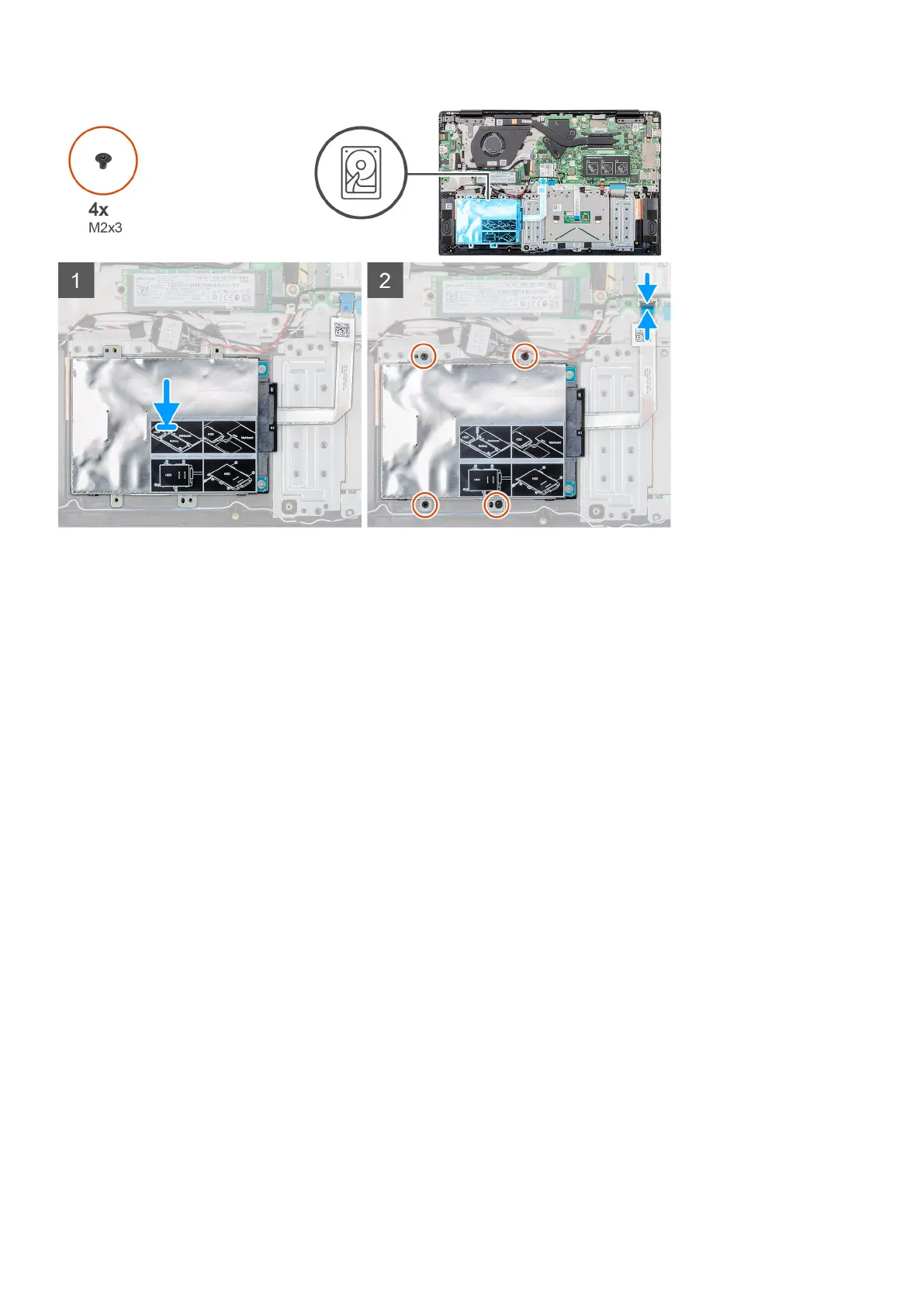

1. Place the hard-drive module on the system and align the screw holes on the hard drive module with the screw holes on the
palmrest assembly.
2. Replace the four (M2x3) screws to secure the hard-drive module to the palmrest assembly.
3. Connect the hard-drive cable to the connector on the system board and close the latch to secure the cable.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Solid state drive
Removing the M.2 2230 solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task
The figure indicates the location of the M.2 2230 solid-state drive and provides a visual representation of the removal
procedure.
Removing and installing components
19
