Steps

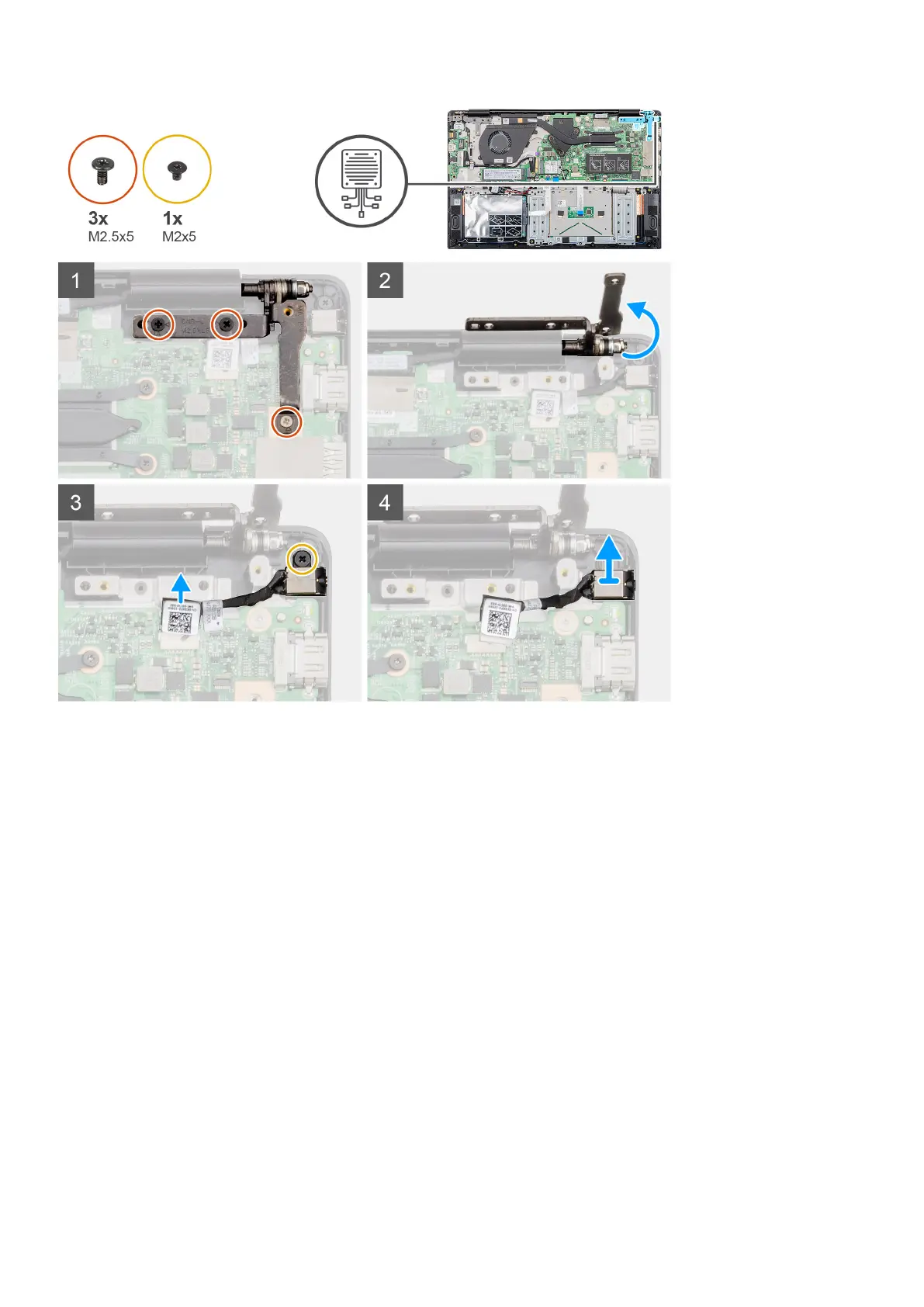

1. Locate the power-adapter port on your computer.
2. Remove the three (M2.5x5) screws that secure the left display hinge to the palmrest assembly.
3. Partially lift the left hinge.
4. Disconnect the power-adapter cable from the connector on the system board.
5. Remove the single (M2x5) screw that secures the power-adapter port to the palmrest.
6. Lift the power-adapter port from the computer.
Installing the power-adapter port
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the power-adapter port and provides a visual representation of the installation procedure.
Removing and installing components
45
