About this task

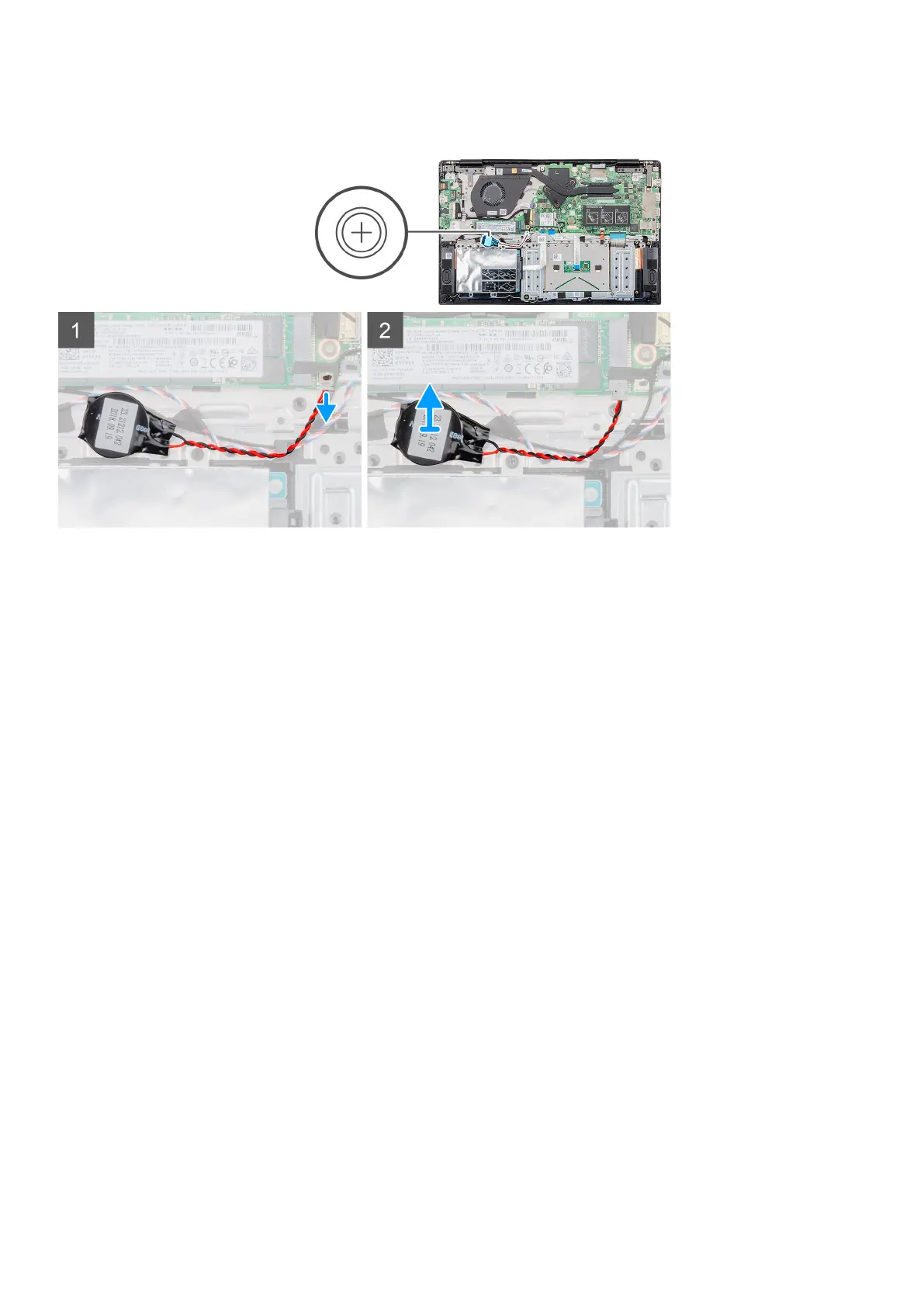

The figure indicates the location of the coin-cell and provides a visual representation of the removal procedure.
Steps
1. Disconnect the coin-cell battery cable from the system board.
2. Remove the coin-cell battery cable from the routing guide.
3. Peel the coin-cell battery off the palmrest assembly.
Installing the coin-cell battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the coin-cell and provides a visual representation of the installation procedure.
Removing and installing components
29
