Steps
1. Locate the heatsink assembly on your computer.

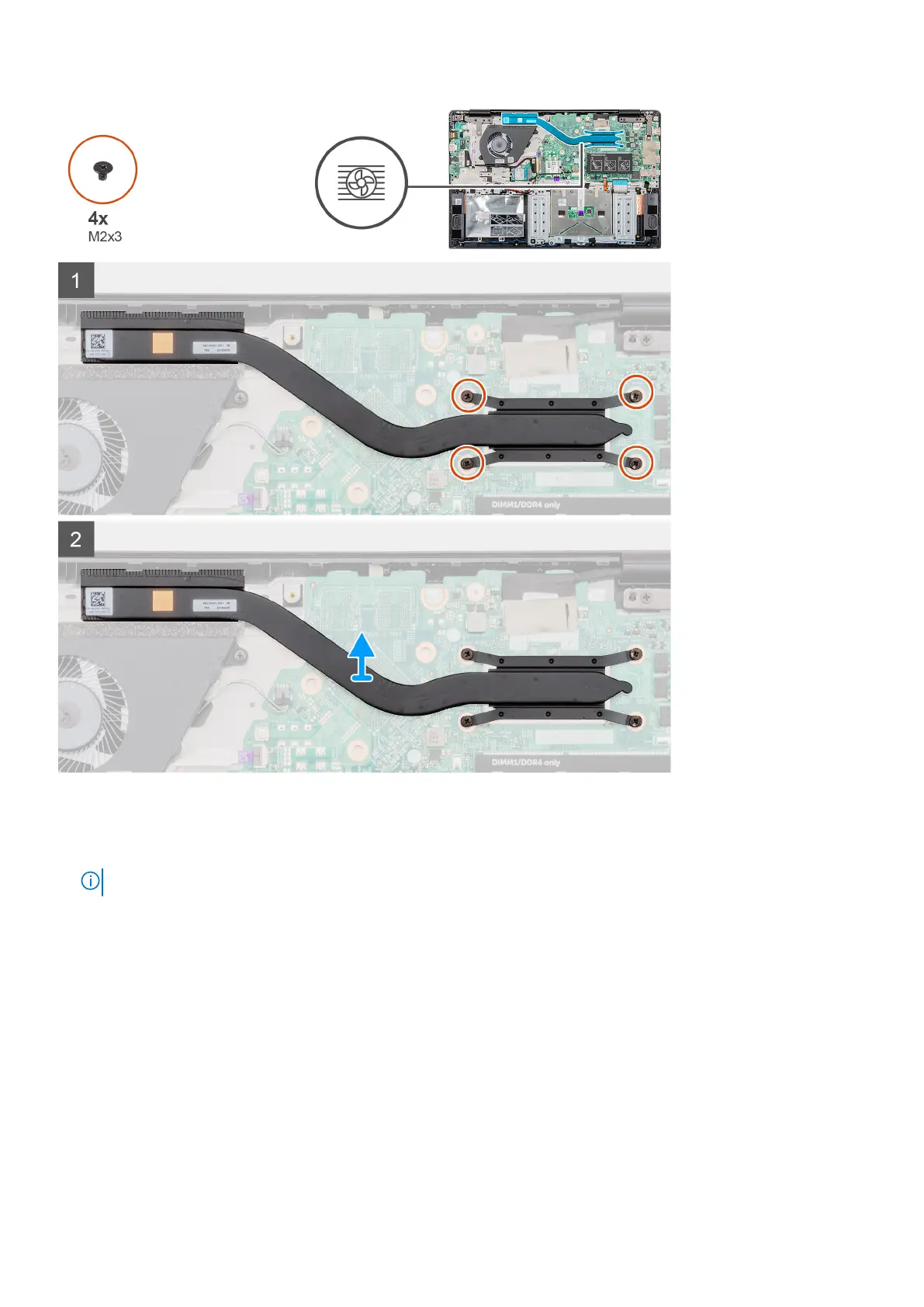

2. Remove the four (M2x3) screws that secure the heatsink assembly to the computer.
NOTE: Remove the screws as per the callout on the heatsink module.
3. Lift the heatsink assembly out of the computer.
Installing the heatsink assembly-UMA
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the heatsink and provides a visual representation of the installation procedure.
