Steps

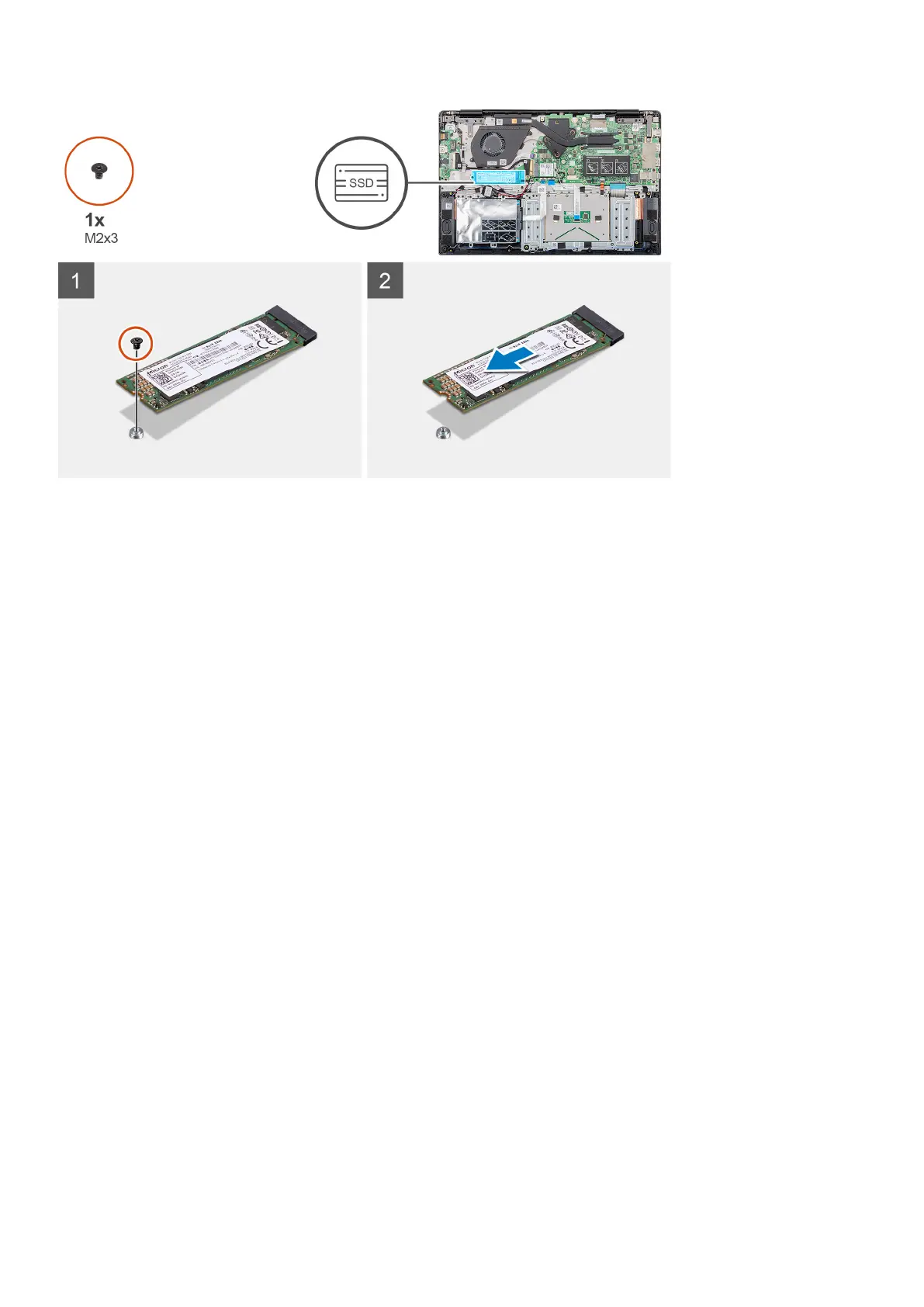

1. Remove the single (M2x3) screw that secures the solid-state module to the palmrest assembly.
2. Slide the solid-state module out from the M.2 slot.
Replacing the SSD support bracket
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the M.2 2230 SSD or M.2 2242 SSD or M.2 2280 SSD.
About this task
The figure indicates the location of the SSD support bracket and provides a visual representation of the replace procedure.
22
Removing and installing components
