2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Heatsink—discrete
Removing the heatsink assembly-discrete
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task

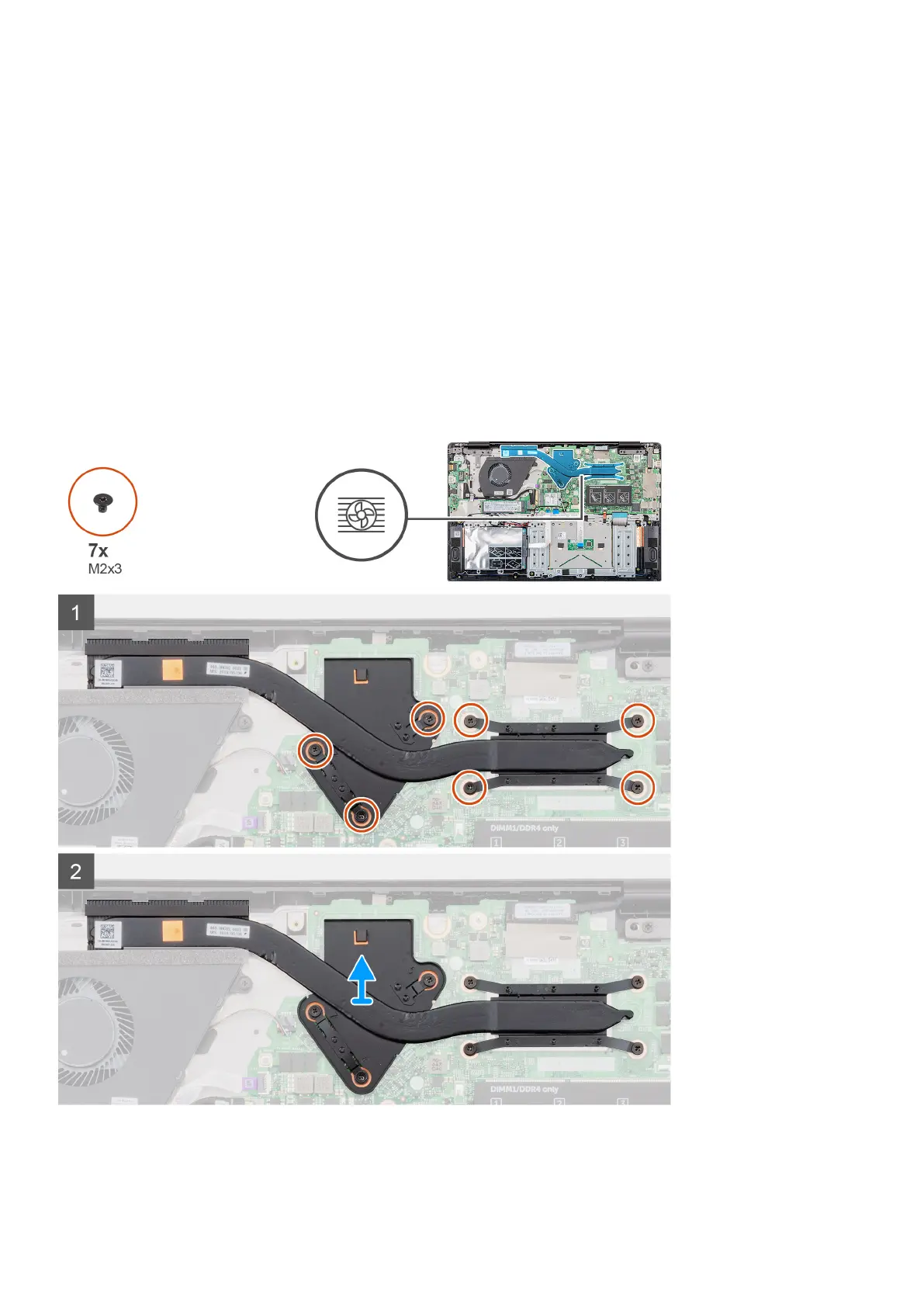

The figure indicates the location of the heatsink assembly and provides a visual representation of the removal procedure.
Steps
1. Locate the heatsink assembly on your computer.
Removing and installing components
35
