Steps
1. Place the display assembly on a clean and flat surface.
2. Align and place the palmrest and keyboard assembly on the display assembly.

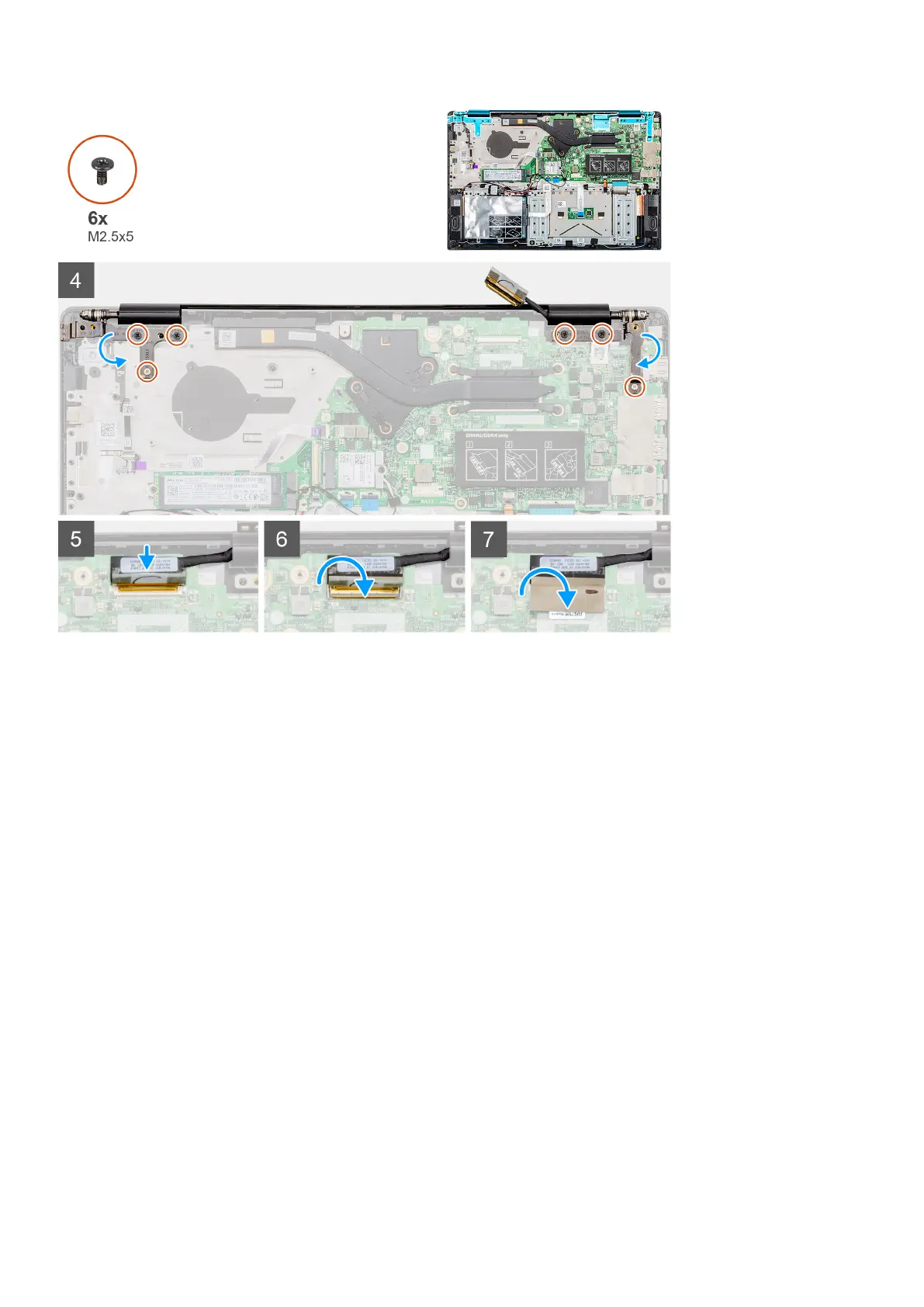

3. Using the alignment posts, close the left and right display hinges.
4. Replace the four (M2.5x2.5 (Big head)) screws and two (M2x3) screws to secure the left and right display hinges to the
chassis of the computer.
5. Connect the display cable to the system board and adhere the tape to secure the display cable.
Next steps
1. Install the system fan.
2. Install the battery.
3. Install the base cover.
4. Follow the procedure in After working inside your computer.
Palmrest assembly
Replacing the palmrest assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the hard drive.
5. Remove the coin-cell battery.
62
Removing and installing components
