Steps
1. Align and slide the solid-state drive into the M.2 slot.
2. Replace the single (M2x3) screw to secure the solid-state drive module to the palmrest assembly.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Installing M.2 2280 solid-state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

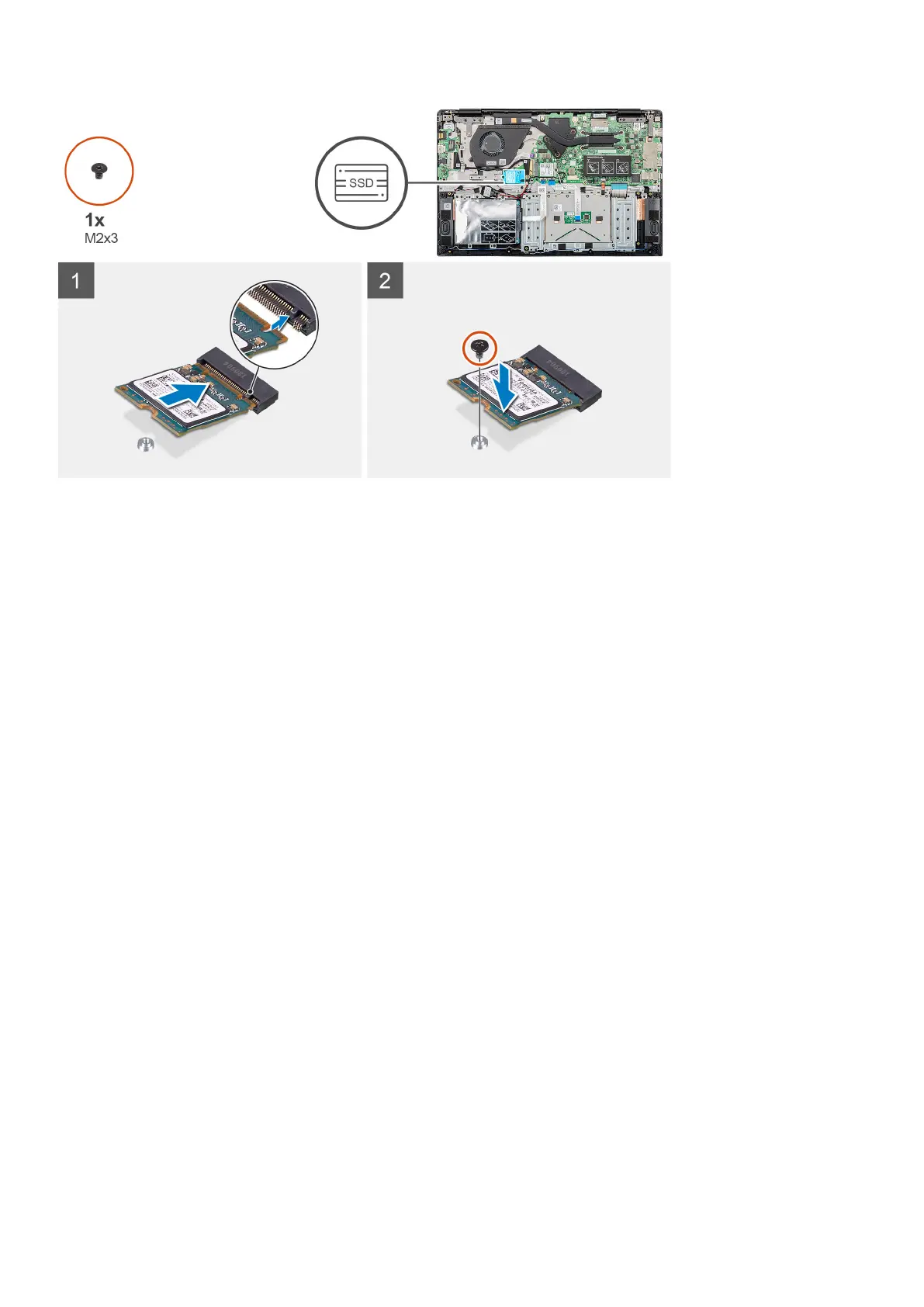

The figure indicates the location of the M.2 2280 solid-state drive and provides a visual representation of the installation
procedure.
Removing and installing components
25
