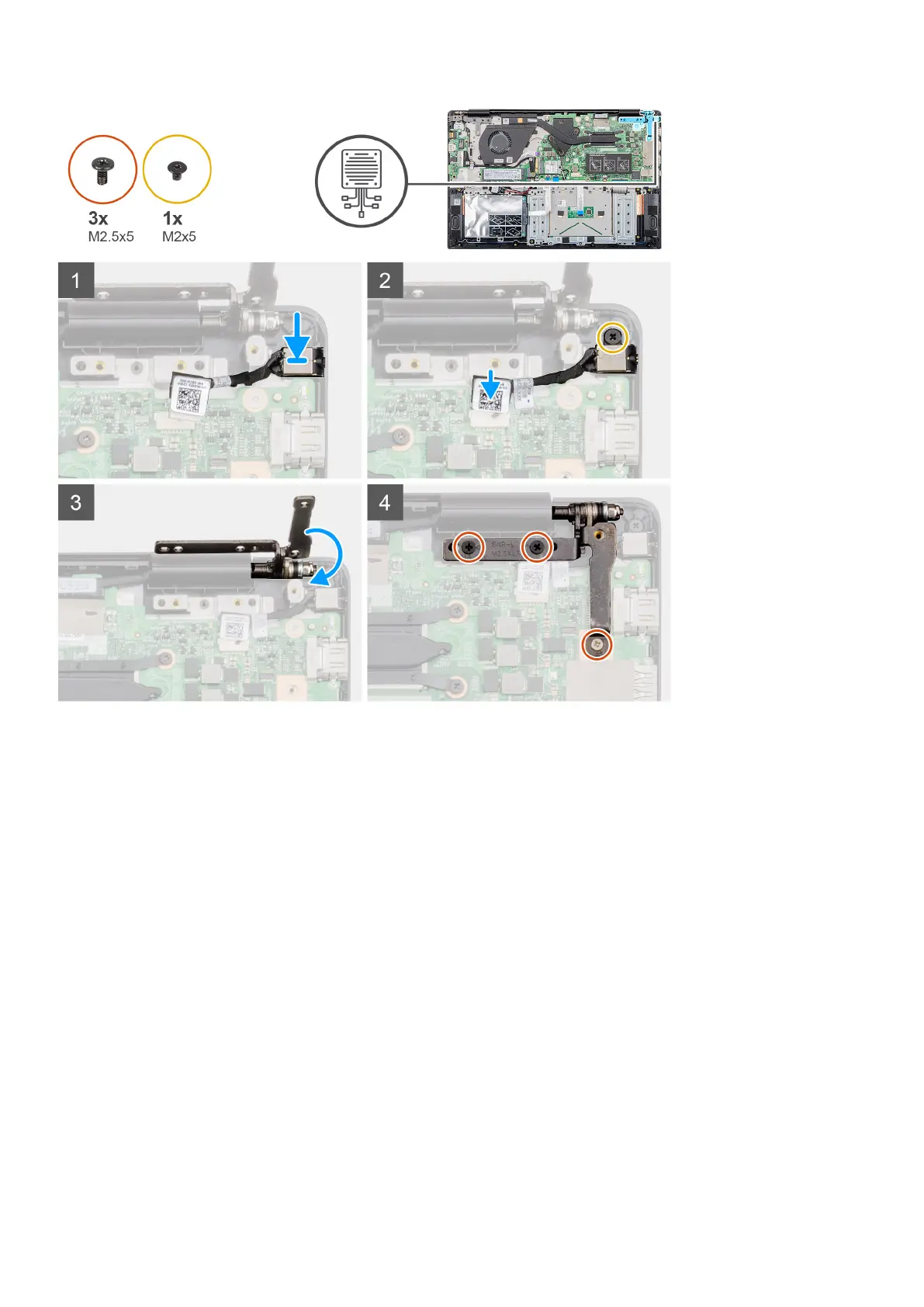

Steps
1. Locate the power-adapter slot on your computer.
2. Insert the power-adapter port into the slot on the system board.
3. Replace the single (M2x5) screw to secure the power-adapter port to the palmrest assembly.
4. Connect the power-adapter cable to the connector on the system board.
5. Close the left hinge.
6. Replace the three (M2.5x5) screws that secure the left hinge to the system board.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
System board
Removing the system board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
46
Removing and installing components
