5. Lift the input and output board out of the computer.
Installing the input and output board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

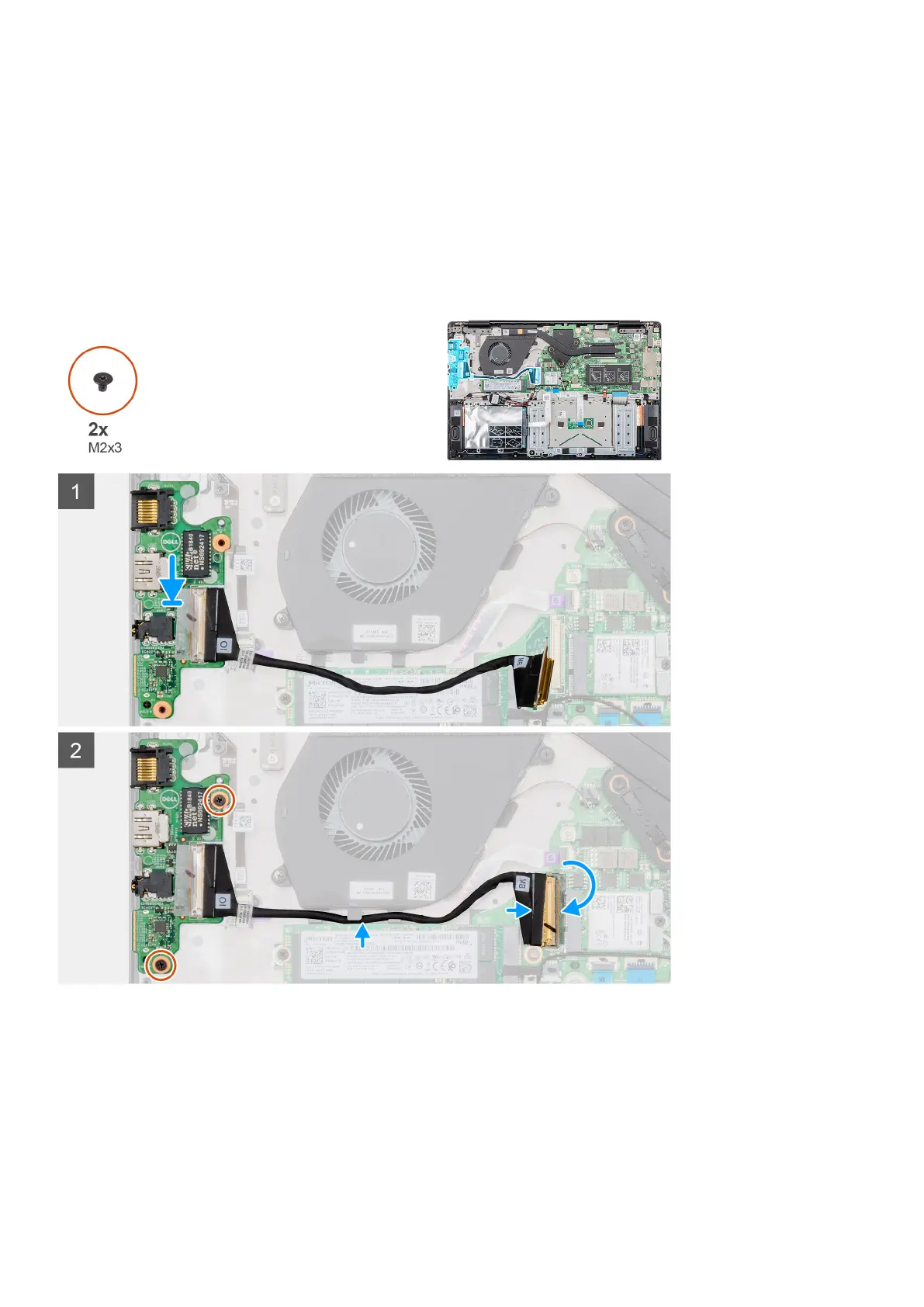

The figure indicates the location of the input and output board and provides a visual representation of the installation procedure.
Steps
1. Align and place the input and output board in the slot on your computer.
2. Replace the two (M2x3) screws to secure the input and output board to the palmrest assembly.
3. Connect the input and output board cable to the connector on the system board.
4. Route the input and output board cables through the retention clips on your computer.
Next steps
1. Install the battery.
